Cummins Onan 5.5 HGJAD-2138
Cummins Onan 5.5 HGJAD-2138
Hover to zoom
1 Of 5
Cummins Onan 5.5 HGJAD-2138
Cummins Onan 5.5 HGJAD-2138
video icon

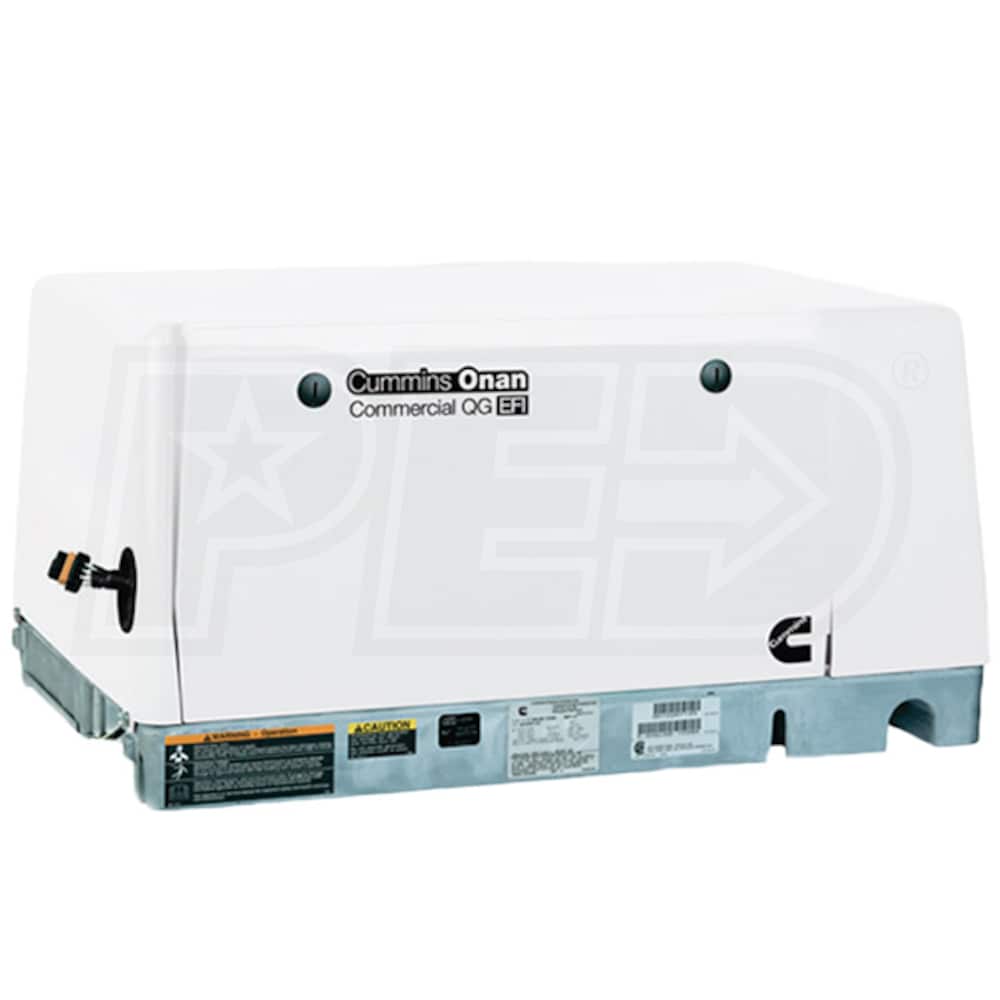

Cummins Onan QG 5500 - 5500 Watt EFI Commercial Mobile Generator (120V 30A)

Model:

5.5 HGJAD-2138

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

RV

Run Watts

5,500 Rated Watts

Voltage

120 Single-Phase

Fuel

Gasoline

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 5.5 kW QG EFI Commercial Mobile Generator (120V - 30A)
  • Quietest and lowest vibration generator set in its class
  • Designed for tough commercial applications
  • Electronic Fuel Injection (EFI) - Improves Hot & Cold Starting
  • Provides clean, smooth running under all conditions
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.6 Gal/H @ 1/2 Load)
  • Allows for start & run without AC output to conserve fuel
  • Microprocessor Controlled w/ Automatic Safety Shutdowns
  • Digital voltage regulatotion provides stabilty as loads change
  • Self-diagnostic capability to simplify troubleshooting
  • Low oil pressure, over/under speed, and overcurrent protection
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
  • Integral Control Panel w/ Waterproof Remote Connector
  • Instant one-touch stop switch & Remote disable/continuous stop capability
  • 4-Point Mounting System w/ Coil Spring Vibration Isolators
  • Universal mounting tray allows for easy installation
  • Added Features - Auto Choke, Full-Flow Oil Filter & Long Life Fuel Filter
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
  • Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)
  • Please Note - Not EVAP Compliant
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

5.5 HGJAD-2138
specs product image PID-15749
Overview
Weight
290 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
Gasoline
Rated Amps
45.8 Amps
Decibel Rating @ 3m
64
Hour Meter
Yes
Fuel Consumption
.35-.95 gallons/hr
Circuit Breaker Size
30 Amps
Grade Type
Professional
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
653 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 30A (120V)
