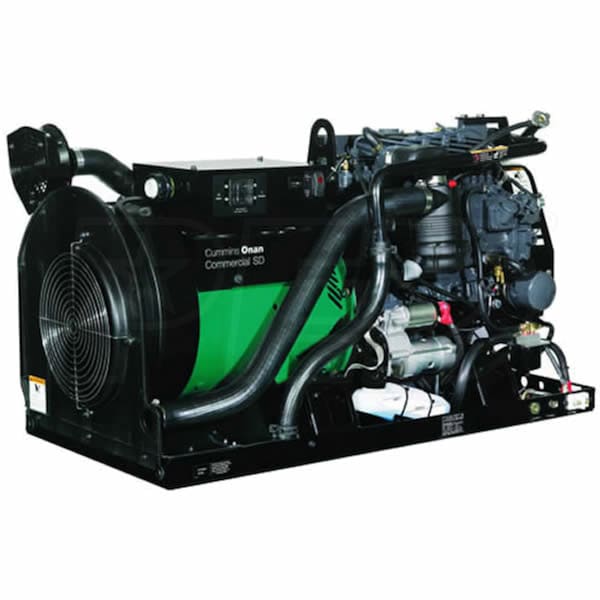

Cummins Onan SD 20000 - 20,000 Watt Commercial Open Diesel Mobile Generator

Cummins Onan SD 20000 - 20,000 Watt Commercial Open Diesel Mobile Generator
Model: 20HDKAW-2008A
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Indiana, North Dakota, Wisconsin or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 20 kW Commercial Open Diesel Gen-Set (120/240V 85A)
  • For fire/emergency trucks, utility/telecom fleets and other specialty vehicles
  • 2434cc Kubota Liquid-Cooled Diesel Engine (1800 RPM)
  • Fuel efficient, low speed design (1.12 Gal/h @ 1/2 Load)
  • Meets U.S. interim EPA Tier IV for emissions
  • Electric Fuel Pump (Prime Mode) w/ Spin-On Fuel Filter Cartridge
  • Automatically timed glow plugs for easy starting
  • Cross-Flow, Bottom Mounted Radiator
  • Provides increased cooling efficiency & smaller package size
  • Excellent Motor Starting - Deilivers up to 50 kVA @ Rated Load
  • Refer to spec sheet on how to calculate kVA load requirement
  • Microprocessor Controlled w/ Automatic Safety Shutdowns
  • Self-diagnostic capability to simplify troubleshooting
  • Brushless Alternator & Electronic Govenor
  • Provides percise Hz control and Less than 4% THD @ Full Load
  • Easy Installation & Service/Maintenance Points easily accessible
  • Complete, integrated package including muffler
  • (FET) Control & 30A Bat. Charging DC Alternator
  • Lifting Eye, Bulkhead Connections for Fuel/Battery
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
40 HP
CC
2434 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
83 Amps
Hour Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 85A (120/240V)
Overview
Weight
890 Pounds
Product Style
RV Generator
Product Length
48.9 Inches
Product Width
23.6 Inches
Product Height
27.9 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 20 kW Commercial Open Diesel Gen-Set (120/240V 85A)
  • For fire/emergency trucks, utility/telecom fleets and other specialty vehicles
  • 2434cc Kubota Liquid-Cooled Diesel Engine (1800 RPM)
  • Fuel efficient, low speed design (1.12 Gal/h @ 1/2 Load)
  • Meets U.S. interim EPA Tier IV for emissions
  • Electric Fuel Pump (Prime Mode) w/ Spin-On Fuel Filter Cartridge
  • Automatically timed glow plugs for easy starting
  • Cross-Flow, Bottom Mounted Radiator
  • Provides increased cooling efficiency & smaller package size
  • Excellent Motor Starting - Deilivers up to 50 kVA @ Rated Load
  • Refer to spec sheet on how to calculate kVA load requirement
  • Microprocessor Controlled w/ Automatic Safety Shutdowns
  • Self-diagnostic capability to simplify troubleshooting
  • Brushless Alternator & Electronic Govenor
  • Provides percise Hz control and Less than 4% THD @ Full Load
  • Easy Installation & Service/Maintenance Points easily accessible
  • Complete, integrated package including muffler
  • (FET) Control & 30A Bat. Charging DC Alternator
  • Lifting Eye, Bulkhead Connections for Fuel/Battery
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
40 HP
CC
2434 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
83 Amps
Hour Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 85A (120/240V)
Overview
Weight
890 Pounds
Product Style
RV Generator
Product Length
48.9 Inches
Product Width
23.6 Inches
Product Height
27.9 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
40 HP
CC
2434 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
1.25 gallons/hr
Rated Amps
83 Amps
Hour Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 85A (120/240V)
Overview
Weight
890 Pounds
Product Style
RV Generator
Product Length
48.9 Inches
Product Width
23.6 Inches
Product Height
27.9 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
