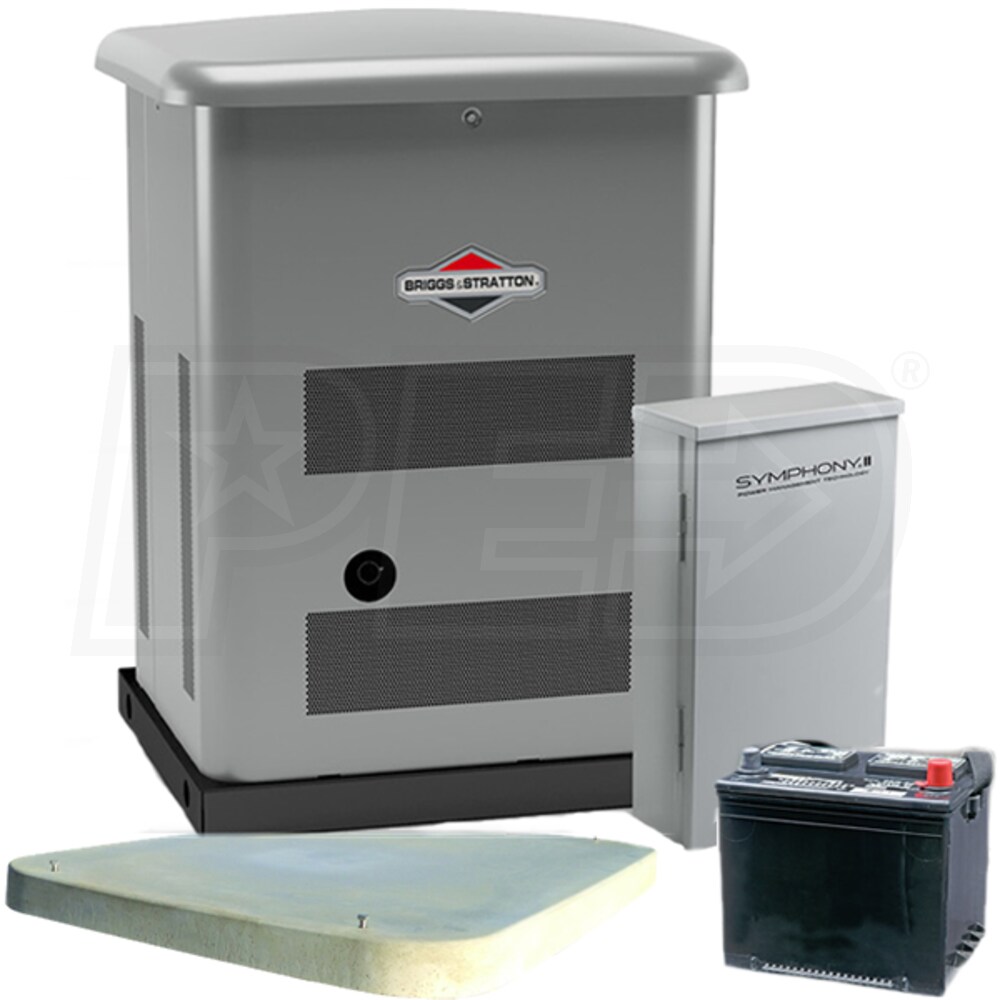

Briggs & Stratton 12kW Standby Generator System (Steel) (200A Service Disc. + Power Mgmt.) + 3" Mounting Pad + Battery
Model:
EGD-40626KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- B&S 12kW (LP) / 10.8kW (NG) Home Standby Generator Package
- Automatically powers your home in seconds after sensing an outage
- 200-Amp Service Entrance Rated Automatic Transfer Switch (71068)
- Power all circuits without a sub-panel
- NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
- Symphony® II Power Management (Up To 8 High-Wattage Loads)
- Automatically manages & balances loads while preventing overload
- Uninterrupted, whole house power, with a smaller generator
- Runs on Natural Gas (NG) or Liquid Propane (LP)
- Simple field conversion for easier installations
- 627cc Commercial-Grade Vanguard® Air-Cooled Engine
- Full-pressure lubrication system w/ spin-on oil filter
- Advanced debris management for enhanced durability
- Premium Mecc Alte Alternator - Less Than 5% THD
- Improved frequency (HZ) regulation for cleaner power
- Capable of starting most 5-Ton central AC units
- Automatic Voltage Regulation (+/-1%)
- Helps prevent damaging voltage spikes
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- New Upgraded Control System
- LCD display w/ multi-line text graphics
- Low Idle mode for quieter exercise
- Independent 3-Stage Battery Charger
- Provides optimized charge for longer battery life
- Automotive-Grade Galvaneal Steel Enclosure
- Helps minimize corrosion & protects it from the elements
- 5 Year Limited Best in Class Warranty
- Covers parts, labor, and travel for 5-Years
- Assembled & Engineered In The USA
- From foreign and domestic parts

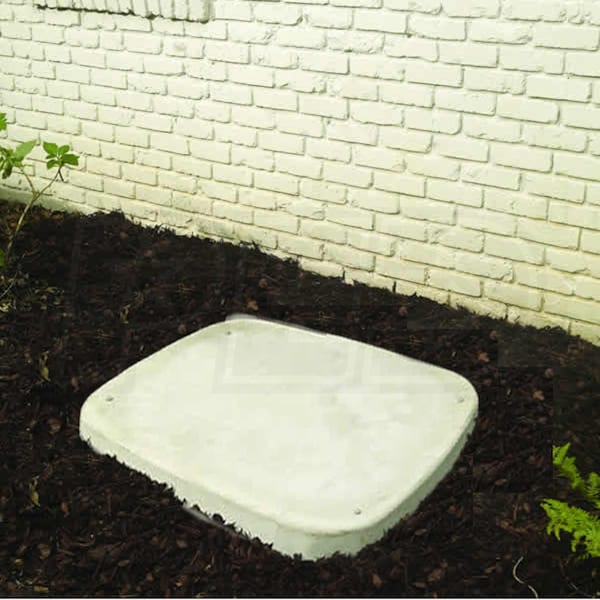

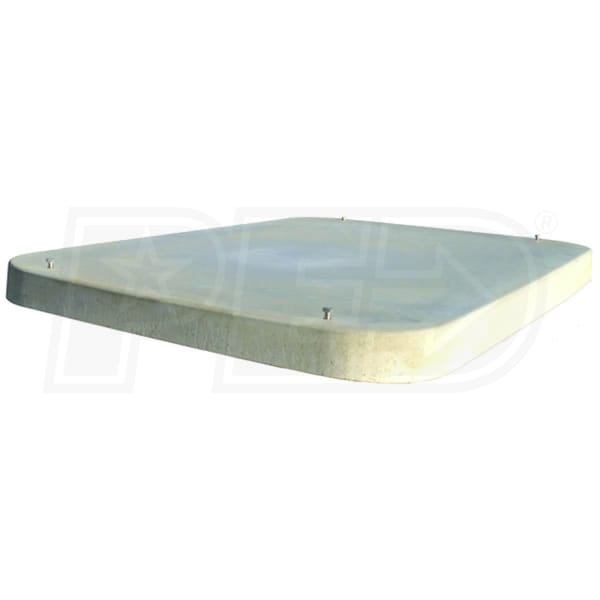

- Includes Briggs & Stratton 3" Concrete Mounting Pad
- A professional looking installation that looks great & lasts
- Also Includes 26R Wet Cell Battery
- (1) Briggs & Stratton 12kW Standby Generator System w/ Wi-Fi (Steel) (200A Service Disc. + Amplify™ Power Mgmt.) (40626)
- (1) Briggs & Stratton 3" Concrete Mounting Pad for 8-12kW Generators (6325)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Briggs & Stratton 12kW Standby Generator System w/ Wi-Fi (Steel) (200A Service Disc. + Amplify™ Power Mgmt.) (40626)
- (1) Briggs & Stratton 3" Concrete Mounting Pad for 8-12kW Generators (6325)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-40626KIT
Overview
Assembly Required
Yes
Weight
361 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
28 Inches
Product Width
26.1 Inches
Product Height
37.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10800 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
116.9 ft³/hr
NG Fuel Consumption @ 100% Load
171.6 ft³/hr
LP Fuel Consumption @ 50% Load
1.68 gallons/hr
LP Fuel Consumption @ 100% Load
2.26 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Steel
Circuit Breaker Size
60 Amps
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
40626
Overview
Assembly Required
Yes
Weight
361 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
28 Inches
Product Width
26.1 Inches
Product Height
37.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10800 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
116.9 ft³/hr
NG Fuel Consumption @ 100% Load
171.6 ft³/hr
LP Fuel Consumption @ 50% Load
1.68 gallons/hr
LP Fuel Consumption @ 100% Load
2.26 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
60 Amps
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
6325
Overview
Weight
155 Pounds
Product Length
32 Inches
Product Width
29 Inches
Product Height
3 Inches
Product Specs
Frequency
60 Hertz
5819
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
