Briggs & Stratton By ASCO Series 285 - 100-Amp Automatic Transfer Switch (277/480V 3-Phase)

Close
Briggs & Stratton Electric Generators and Accessories
Model: 071103
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$1,299.00

StoreShippingPriceShop

Free Shipping$1,299.00
No Sales Tax*
(Except IL)
Buy

$1,299.00
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Type
Standard
Amp Rating
100 @ 480 Volts (Three Phase)
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R

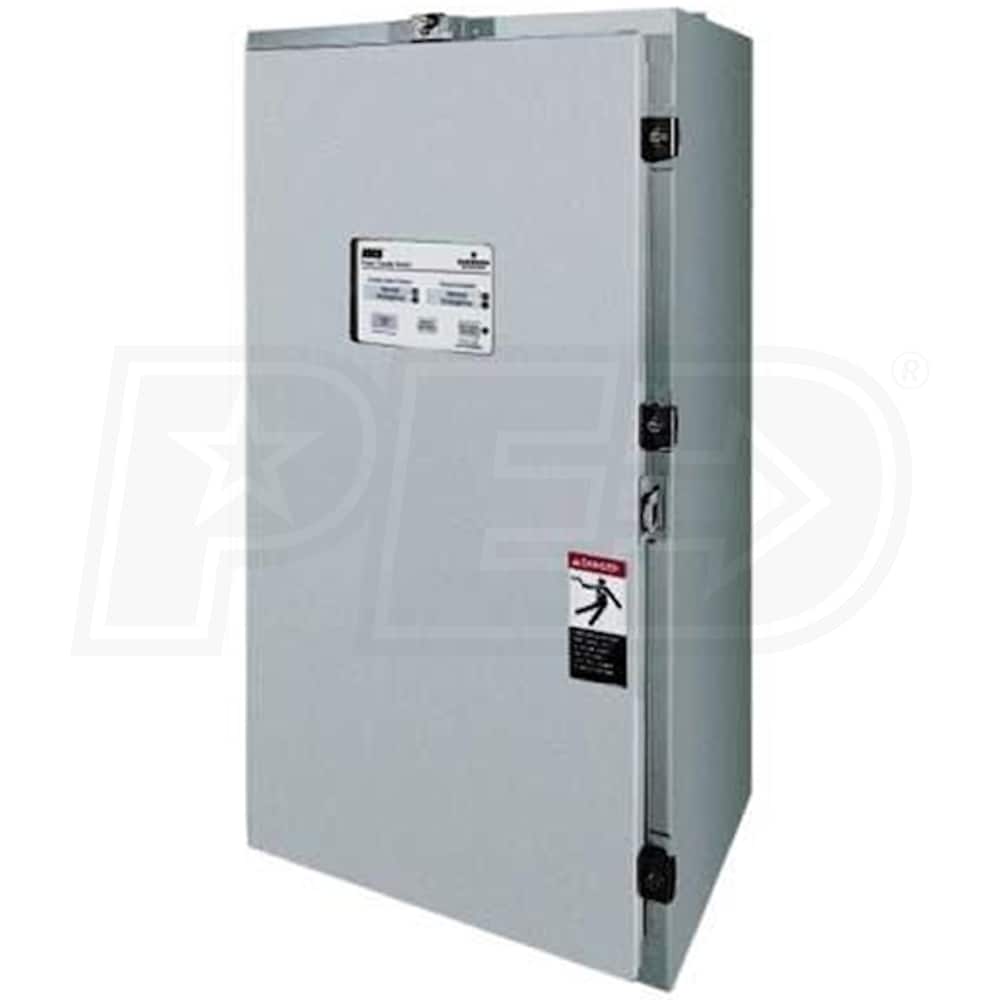

100-Amp 285 Series By ASCO Automatic Transfer Switch (277/480V 3-Phase)
Compatible with Briggs & Stratton 3-phase generators

NEMA 3R Outdoor Rated Enclosure
Approved for indoor or outdoor installations

Standard Installation
Requires a sub-panel for overload protection

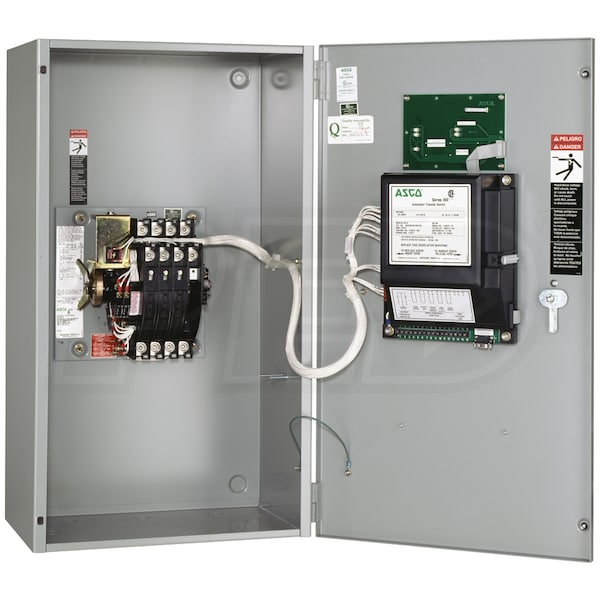

True Double-Throw Contacts w/ Inherent Mechanical Interlocking
Prevents connection of generator and utility source for maximum safety

Terminals For Connection of Neutral and Ground Conductors
Allows for easier installation

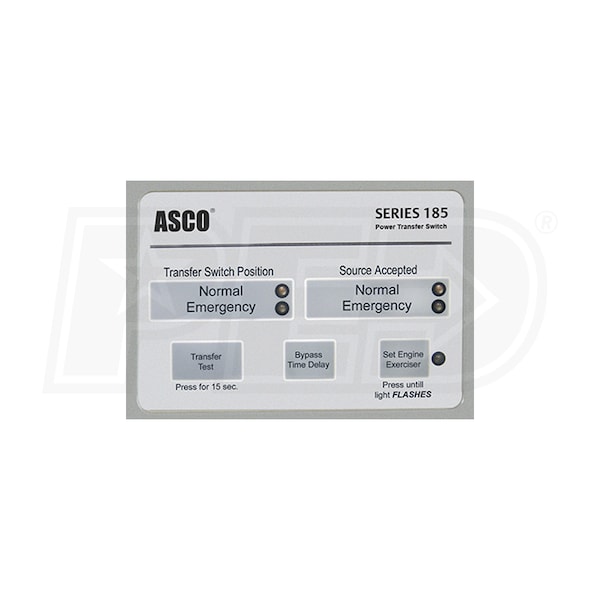

Convenient Control Interface w/ Symbols & Visual Indicators
Makes it easy to see transfer switch and power source status

Built-In Auxiliary Contacts For Switch Position Indication
Provides immediate indication when the switch positions changes

Additional Features:
Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
Listed to UL 1008 for optional standby systems

Please See Spec Sheet For Additional Compliance & Safety Standards

3-Year Limited Warranty
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 @ 480 Volts (Three Phase) Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Consumer Warranty
3 Years
UPC
011675711030
Model
071103
Download Documents
Need Help? Ask Our Experts.
View Accessories For This Product
Read Reviews
How To Library

Questions before buying? Ask Mike about this item. Sorry, do not submit repair related questions.

Be the first to review this product on Electric Generators Direct. Write A Review
Free Freight
  • Ships via FedEx Ground
  • Free to Lower 48 States
  • Standard Rates to Alaska, Hawaii
We currently CANNOT ship this product to Canada or any destination outside of the United States
