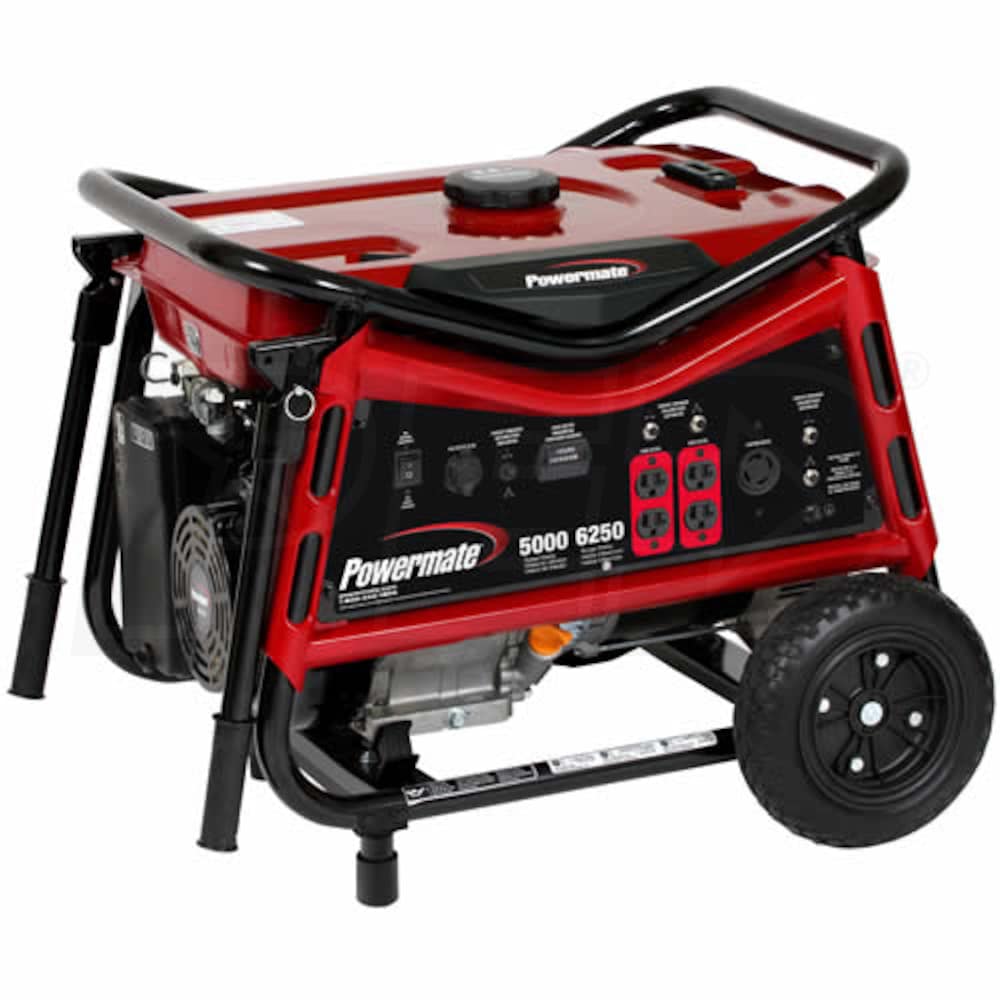

Powermate Vx Series 5000 Watt Portable Generator
Model: PM0105007.02
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
6,250
Starting Watts
Fuel
Grade
Emergency
Style
Portable
Run Watts
5,000
Surge Watts
6,250 Starting Watts
Fuel
Gasoline
Features
Features
  • 389cc Powermate OHV Engine
  • Provides improved fuel efficiency
  • Longer life, easier maintenance and less noise
  • Low Oil Shutdown
  • Protects generator from running without enough oil
  • 6.5 Gallon Fuel Tank w/ Fuel Gauge
  • Provides 11 hours of run time @ 1/2 load
  • Auto Voltage Regulation (AVR)
  • Protects appliances & equipment from harmful voltage swings
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • Hour Meter
  • Easily keep track of service intervals
  • 12-Volt Automotive-Type DC Outlet
  • Great for charging cell phone batteries or powering inflators
  • Mobility Kit w/ Dual Folding Handle & 10" Never-Flat Wheels
  • Makes moving and storing this generator an easy task
  • USDA Forest Service Qualified Spark-Arrestor Muffler
  • Provides added safety and quieter operation
  • 2 Year Warranty
Specifications
Plugs
12-Amp DC (Cigarette Adapter)
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6250 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.5 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
