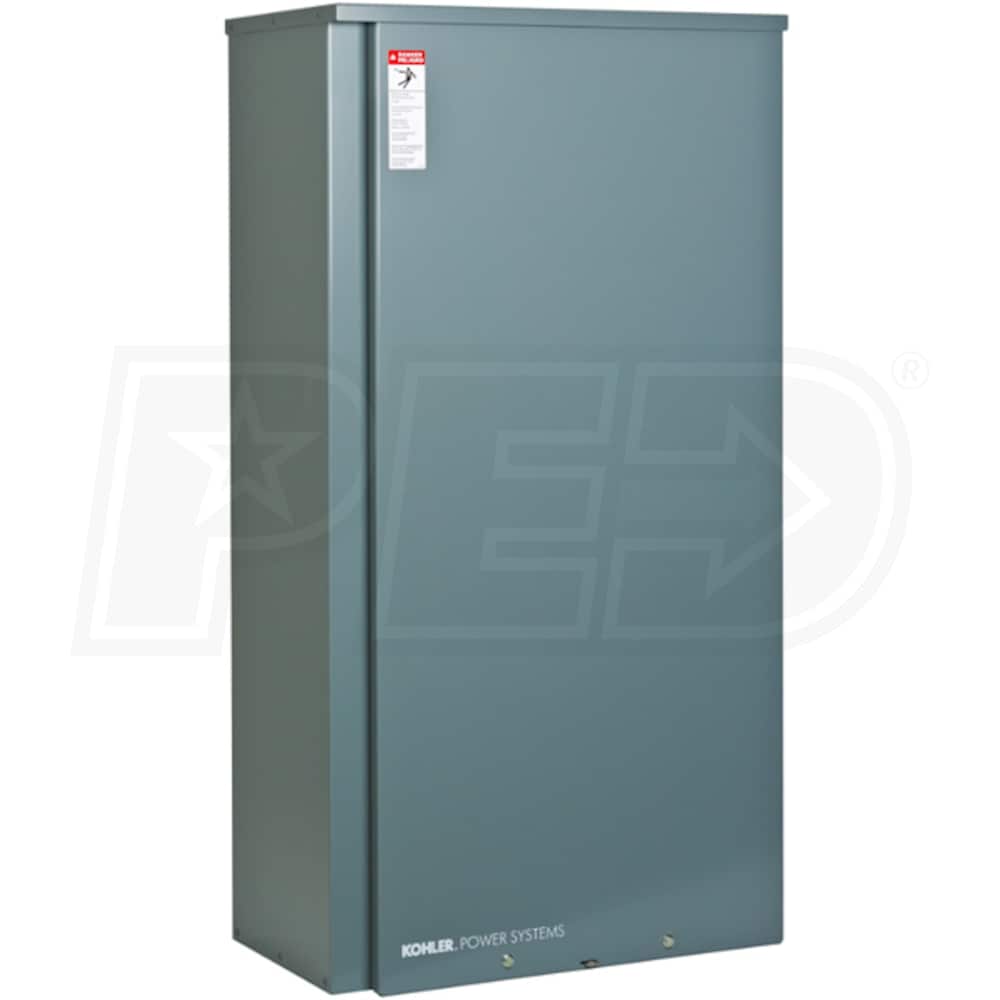

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch (277/480V 3-Phase)
Model: RXT-JMTC-0100A-QS3
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$838.00
Holiday Shipping Schedule
Holiday Schedule -
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
Learn More Installation
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
100
Load Mgmt.
Enclosure
NEMA 3R
Type
Standard
Enclosure
NEMA 3R
Features
Features
  • Kohler Model RXT 100-Amp Automatic Transfer Switch
  • Only works with 277/480 3-Phase generators
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 100-Amps @ 277/480-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9.9 Inches
Product Width
18.2 Inches
Product Height
26.8 Inches
Additional Model Numbers
RXT-JMTC-0100A, RXT-JMTC-0100A-QS3
Type
Standard
Amp Rating
100
Load Mgmt.
Enclosure
NEMA 3R
Type
Standard
Enclosure
NEMA 3R
Features
Features
  • Kohler Model RXT 100-Amp Automatic Transfer Switch
  • Only works with 277/480 3-Phase generators
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 100-Amps @ 277/480-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9.9 Inches
Product Width
18.2 Inches
Product Height
26.8 Inches
Additional Model Numbers
RXT-JMTC-0100A, RXT-JMTC-0100A-QS3
Product Specs
+
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9.9 Inches
Product Width
18.2 Inches
Product Height
26.8 Inches
Additional Model Numbers
RXT-JMTC-0100A, RXT-JMTC-0100A-QS3
