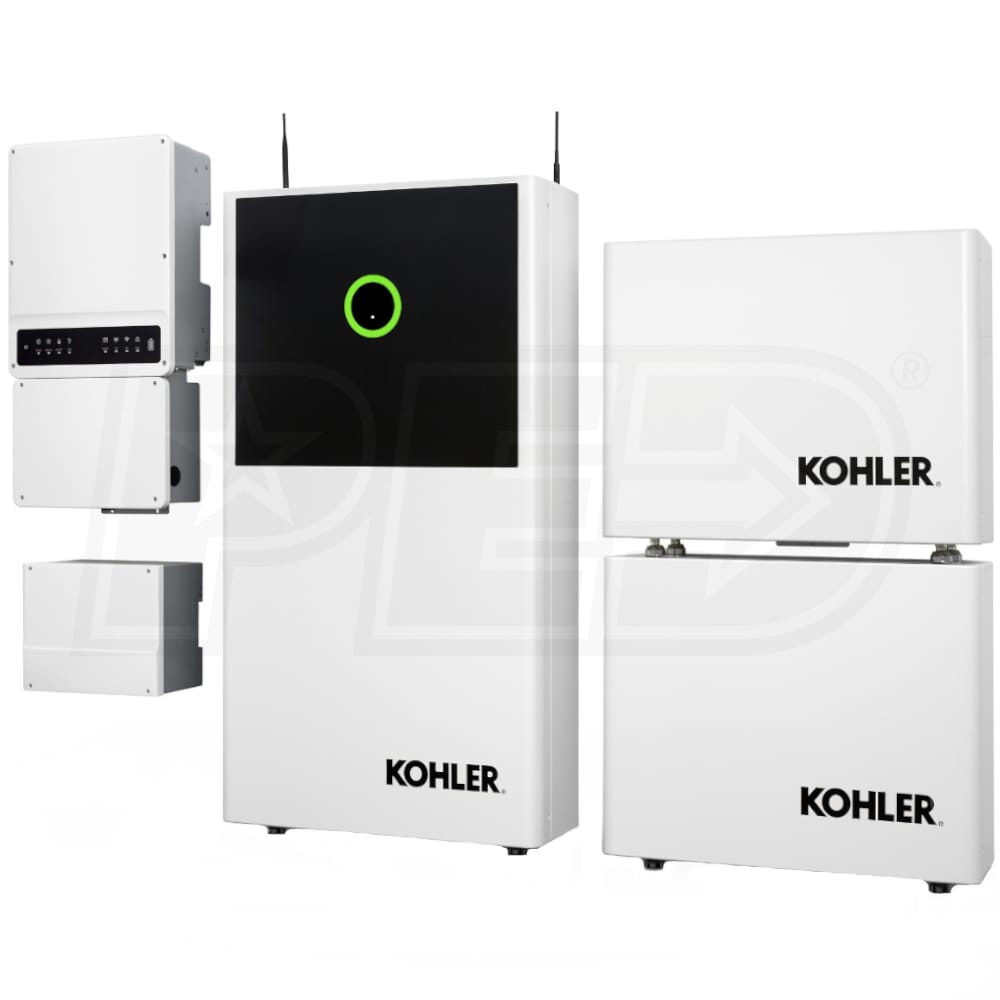

Kohler® Power Reserve 20kWh Energy Storage System - 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled)

Model:

KOH20AC-7600-01

Write A Review
$18,734.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Wednesday, Dec 7th
Shipping to60601
synchrony card logo
$328 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler® Power Reserve 20kWh Energy Storage System - 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled)
Kohler® Power Reserve 20kWh Energy Storage System - 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled)
Model: KOH20AC-7600-01
$18,734.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • *Please Note - Requires Kohler Certified Installer for Installation*
  • Kohler® Power Reserve 20kWh Residential Energy Storage System
  • Keeps your home powered during an outage
  • Provides energy independence from the grid
  • Versatile System For On & Off Grid Applications
  • Ideal for energy storage from solar installation
  • How It Works
  • Stores energy gathered from your solar array^ (Not Included)
  • Charge from the grid if solar isn’t available
  • Reserves the energy for when you need it most
  • Multi-Modes To Suit Your Needs
  • Back-Up - Automatically uses stored solar power when an outage occurs
  • Self-Supply - Prioritizes using stored energy first, then utility power
  • Time-Of-Use - Prioritizes using stored energy during peak utility periods
  • 20 kWh Lithium-Ion Battery (LFP)
  • Provides added safety compared to traditional NMC batteries
  • AC-Coupled Design
  • Ideal for applications with an existing home solar system
  • 7,600-Watt (Continuous) / 9,120-Watt (Surge) Watts (120/240V Single-Phase) (Back Up)
  • Plenty of power for most appliances around the home
  • Outdoor Rated (NEMA 3R) Battery Cabinet
  • Allows for installation flexibility, indoors or outdoors
  • Always Connected Celluar & WiFi w/ Kohler® Power Reserve App
  • Monitor your home's energy production / consumption & power analytics in real time
  • Maximize power savings by allowing more control of your system
  • OpenADR Compliant
  • UL 1741 SA, UL 9540, CA Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1, CSA 22.2
  • 10-Year / 3 Mwh Per kWh Warranty
  • ^Please Note - Requires Solar Panels (Not Included)
  • Product Includes
    • (1) Kohler® Power Reserve 10kWh Energy Storage System - 5.1kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled) (KOH10AC-7600-01)
    • (2) Kohler® Power Reserve Energy Storage 5 kWh Battery (KOH05-01)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler® Power Reserve 10kWh Energy Storage System - 5.1kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled) (KOH10AC-7600-01)
  • (2) Kohler® Power Reserve Energy Storage 5 kWh Battery (KOH05-01)
KOH20AC-7600-01
specs product image PID-118658
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
530 Pounds
Consumer Warranty
10 Years
Additional Model Numbers

EGD-KOH10AC-KOH05-2, KOH20AC-7600-01

Product Specs
Enclosure
NEMA 3R
Wi-Fi Remote Monitoring
Yes
Battery Storage (Wh)
20
Battery Type
AC-Coupled
AC Output / Grid-Tie
Rated AC Power Output
7600 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
9120
AC Output / Backup
Rated AC Backup Power Output (Islanded)
7600 Watts
Max AC Backup Power Output
9120 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Efficiency
Peak Efficiency
97.6
CEC Weighted Efficiency
96.1
KOH10AC-7600-01
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
530 Pounds
Consumer Warranty
10 Years
Product Specs
Enclosure
NEMA 3R
Wi-Fi Remote Monitoring
Yes
Battery Storage (Wh)
10
Battery Type
AC-Coupled
AC Output / Grid-Tie
Rated AC Power Output
5120 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
5760
AC Output / Backup
Rated AC Backup Power Output (Islanded)
5760 Watts
Max AC Backup Power Output
5760 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Efficiency
Peak Efficiency
97.6
CEC Weighted Efficiency
96.1
KOH05-01
Overview
Consumer Warranty
10 Years
Product Length
27.5 Inches
Product Height
21.6 Inches
Product Specs
Enclosure
NEMA 3R
Battery Storage (Wh)
5
