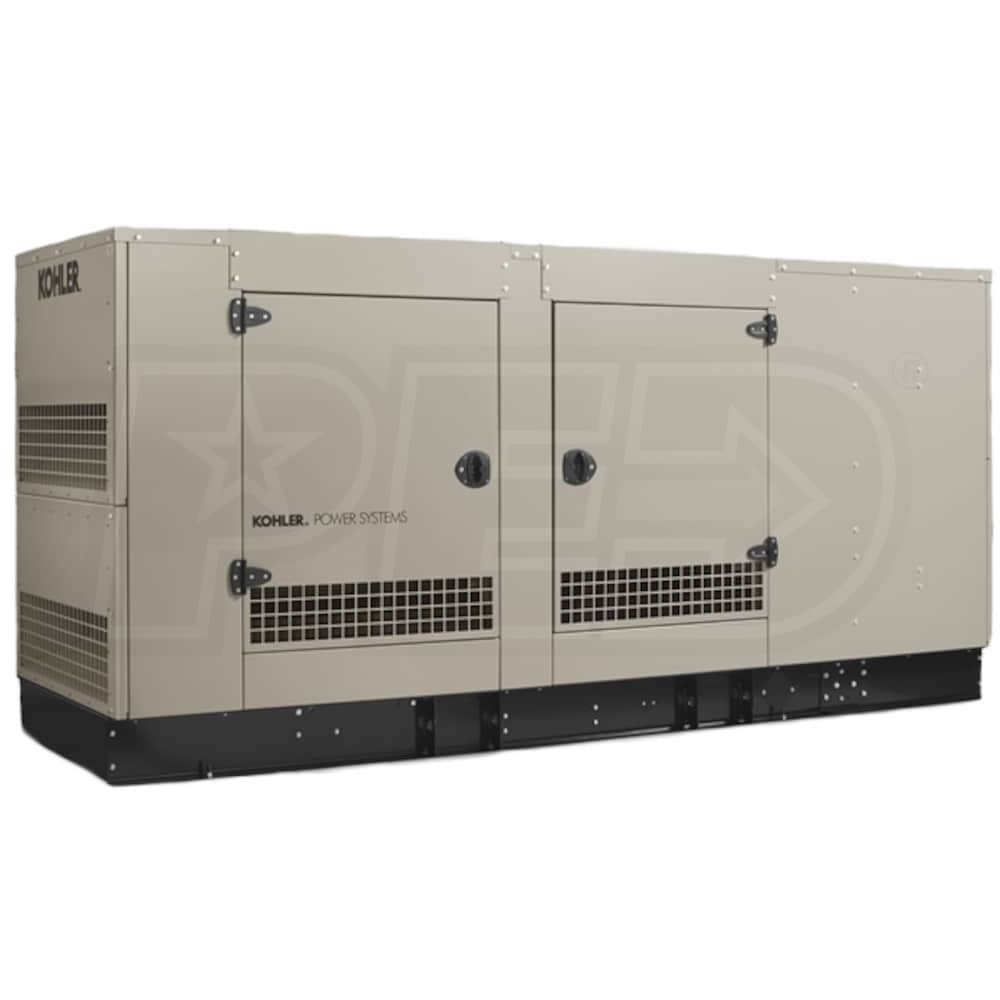

Kohler 100ERESD-QS11 - 100 kW Emergency Standby Power Generator (Aluminum) (120/240V Single-Phase)
Model: 100ERESD-QS11
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
100,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
100,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
GM Vortec
Features
Features
- Kohler 1000ERESD Residential/Light Commercial Emergency Generator
- The perfect fit for larger homes & smaller commercial applications
- Industrial-Grade GM 5.7L Vortec® Turbocharged V-8 Engine (1800 RPM)
- A powerful, reliable & fuel efficient motor that's built to last
- Remarkable Power Quality
- Exceptional voltage & frequency regulation w/ ultra-low THD
- Clean power for even the most sensitive electronics
- Fast-Response X Excitation System
- Easily handle full loads within 7-10 seconds
- Decision-Maker® 3000 Controller
- Provides advanced control, system monitoring & diagnostics
- Digital Display & Menu For Local Data Access
- Remote communication through a PC via network or serial confg.
- Sound-Attenuating Aluminum Enclosure w/ 150 MPH Wind Load Rating
- Fade, scratch, & corrosion-resistant powder-baked finish
- Internal silencer & acoustic insulation keeps dB under 71 @ 7M
- Added Features
- Electronic Governor, Battery Rack & Cables
- Oil drain extension, Local emerengcy stop buttown & Owner's Manual
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- Industry-Leading 5 Year or 2000 Hour Standby Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
100000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
100000 Watts
LP Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
879 ft³/hr
NG Fuel Consumption @ 100% Load
1389 ft³/hr
LP Fuel Consumption @ 50% Load
9.5 gallons/hr
LP Fuel Consumption @ 100% Load
15.2 gallons/hr
Rated Amps
417 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (650 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
GM Vortec
Starting System
12v Auto Start
CC
5700 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
3536 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
138.8 Inches
Product Width
45.4 Inches
Product Height
65.5 Inches
UPC
650531167774
Additional Model Numbers
100ERESD-ALUM, 100ERESD-QS11
Grade
Style
Run Watts
100,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
100,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
GM Vortec
Features
Features
- Kohler 1000ERESD Residential/Light Commercial Emergency Generator
- The perfect fit for larger homes & smaller commercial applications
- Industrial-Grade GM 5.7L Vortec® Turbocharged V-8 Engine (1800 RPM)
- A powerful, reliable & fuel efficient motor that's built to last
- Remarkable Power Quality
- Exceptional voltage & frequency regulation w/ ultra-low THD
- Clean power for even the most sensitive electronics
- Fast-Response X Excitation System
- Easily handle full loads within 7-10 seconds
- Decision-Maker® 3000 Controller
- Provides advanced control, system monitoring & diagnostics
- Digital Display & Menu For Local Data Access
- Remote communication through a PC via network or serial confg.
- Sound-Attenuating Aluminum Enclosure w/ 150 MPH Wind Load Rating
- Fade, scratch, & corrosion-resistant powder-baked finish
- Internal silencer & acoustic insulation keeps dB under 71 @ 7M
- Added Features
- Electronic Governor, Battery Rack & Cables
- Oil drain extension, Local emerengcy stop buttown & Owner's Manual
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- Industry-Leading 5 Year or 2000 Hour Standby Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
100000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
100000 Watts
LP Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
879 ft³/hr
NG Fuel Consumption @ 100% Load
1389 ft³/hr
LP Fuel Consumption @ 50% Load
9.5 gallons/hr
LP Fuel Consumption @ 100% Load
15.2 gallons/hr
Rated Amps
417 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (650 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
GM Vortec
Starting System
12v Auto Start
CC
5700 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
3536 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
138.8 Inches
Product Width
45.4 Inches
Product Height
65.5 Inches
UPC
650531167774
Additional Model Numbers
100ERESD-ALUM, 100ERESD-QS11
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
100000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
100000 Watts
LP Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
879 ft³/hr
NG Fuel Consumption @ 100% Load
1389 ft³/hr
LP Fuel Consumption @ 50% Load
9.5 gallons/hr
LP Fuel Consumption @ 100% Load
15.2 gallons/hr
Rated Amps
417 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (650 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
GM Vortec
Starting System
12v Auto Start
CC
5700 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
3536 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
138.8 Inches
Product Width
45.4 Inches
Product Height
65.5 Inches
UPC
650531167774
Additional Model Numbers
100ERESD-ALUM, 100ERESD-QS11
