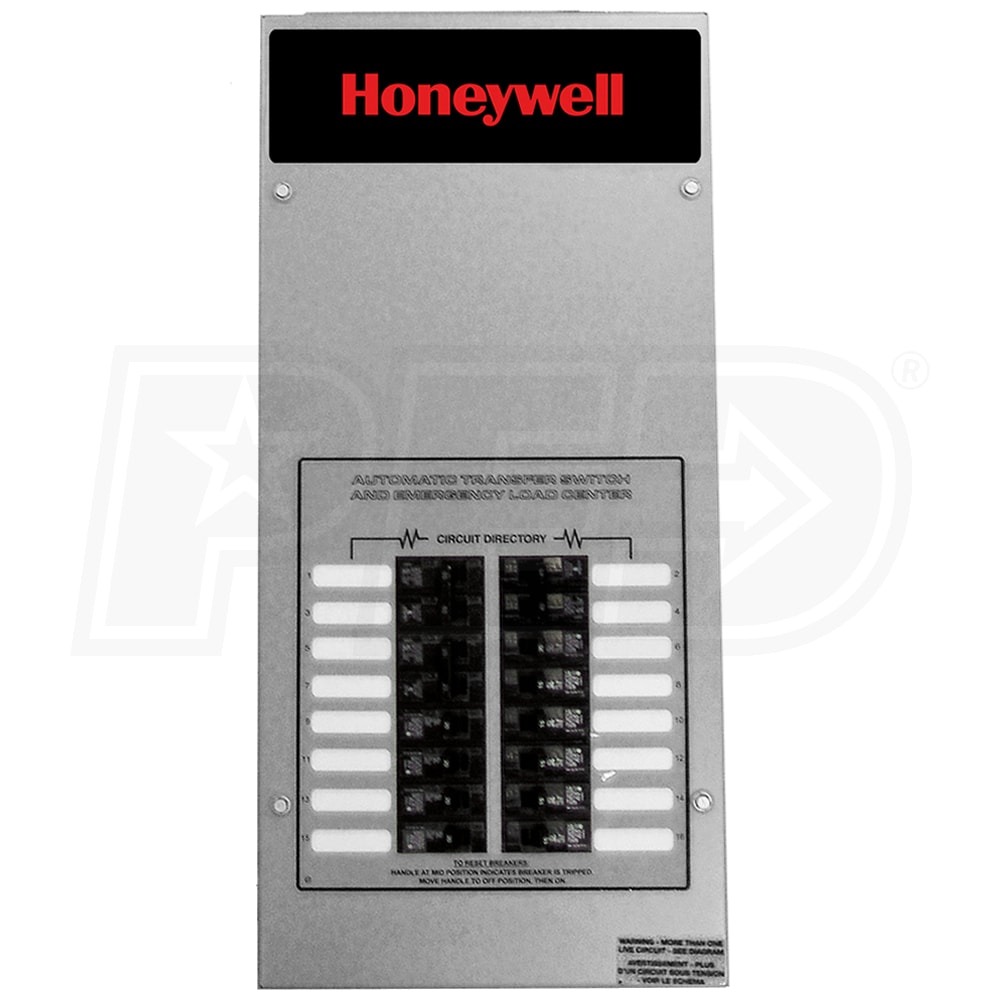

Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RXG16EZA1H
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Honeywell 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Includes:
  • Pre-Wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471069884
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Honeywell 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Includes:
  • Pre-Wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471069884
Product Specs
+
Specifications
Product Specs
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471069884
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Honeywell product.
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
How-To Articles
+


×
