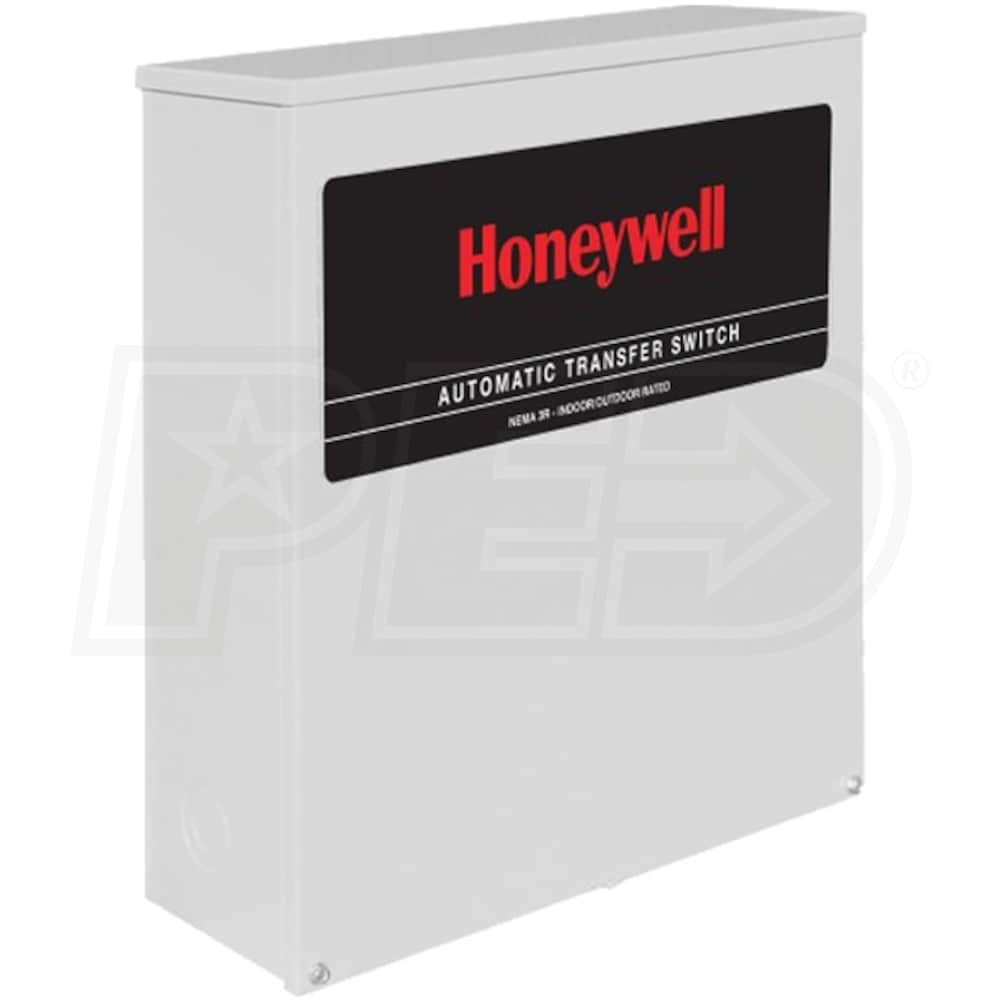

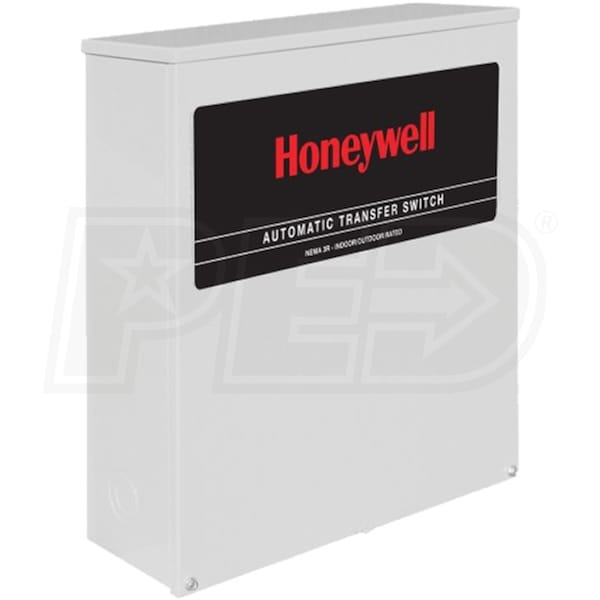

Honeywell™ Commercial 200-Amp Automatic Transfer Swtich (120/240V 3-Phase)

Honeywell™ Commercial 200-Amp Automatic Transfer Swtich (120/240V 3-Phase)
Model: RTSZ200J3
$1,119.00
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.

No Sales Tax* (Except IL)$1,119.00Buy Now
No Sales Tax* (Except IL)$1,119.00Visit Site
Factory-Direct
Ships in 4-6 Weeks
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
200
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 200-Amp Automatic Transfer Switch (120/240V 3-Phase)
  • For 120/240V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 200-Amps @ 240V 3-Phase
  • Transition Type: Open
  • Withstand Rating: 25,000 Amps --- Lug Range: 400 MCM - #4
  • 2-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
Consumer Warranty
2 Years
UPC
696471612950
Type
Standard
Amp Rating
200
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 200-Amp Automatic Transfer Switch (120/240V 3-Phase)
  • For 120/240V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 200-Amps @ 240V 3-Phase
  • Transition Type: Open
  • Withstand Rating: 25,000 Amps --- Lug Range: 400 MCM - #4
  • 2-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
Consumer Warranty
2 Years
UPC
696471612950
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
Consumer Warranty
2 Years
UPC
696471612950
