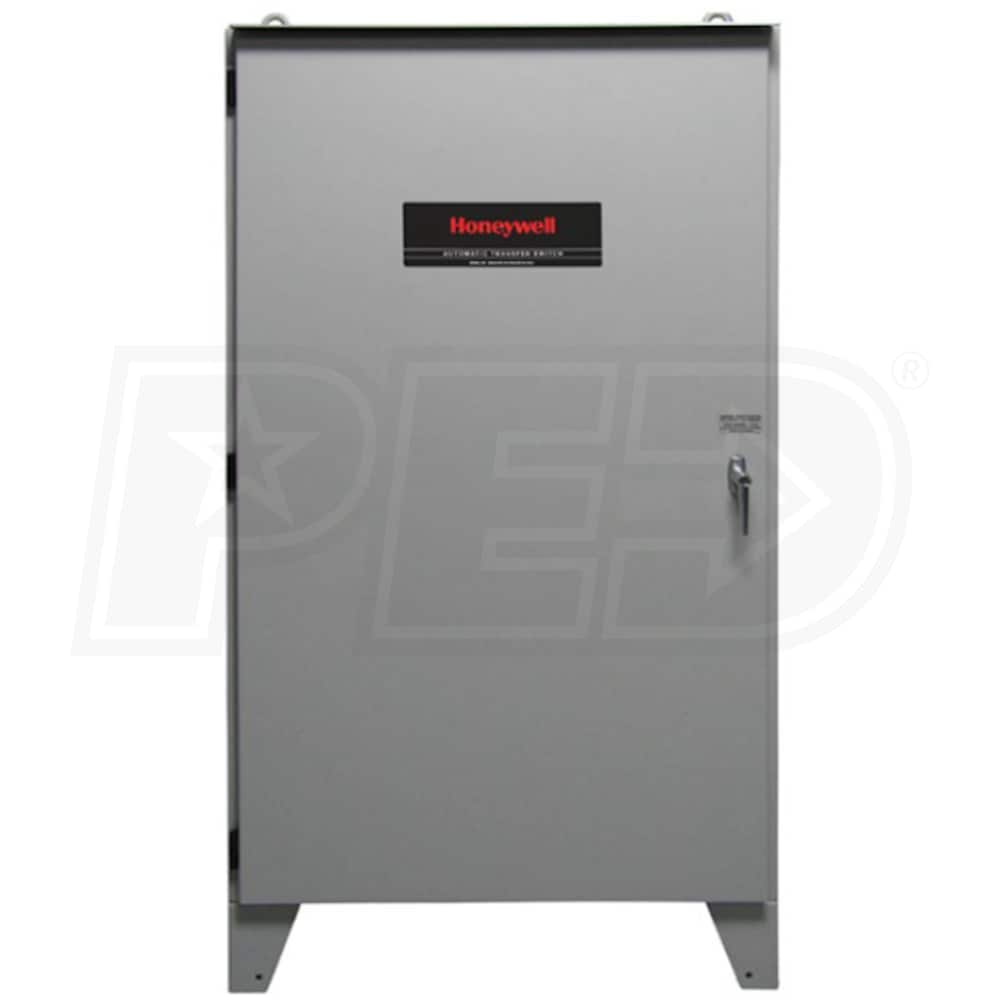

Honeywell™ 800-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management
Model: RTSK800A3
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$5,169.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
800
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
  • Honeywell™ 800-Amp Automatic Transfer Switch
  • Designed specifically for Honeywell™ SYNC™ Controllers
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (2) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (4) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 65,000 Amps --- Lug Range: 4/0 - 500 MCM
  • Best- In-Class 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
192000 Watts
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
Overview
Weight
337.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471620085
Type
Standard
Amp Rating
800
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
  • Honeywell™ 800-Amp Automatic Transfer Switch
  • Designed specifically for Honeywell™ SYNC™ Controllers
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (2) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (4) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 65,000 Amps --- Lug Range: 4/0 - 500 MCM
  • Best- In-Class 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
192000 Watts
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
Overview
Weight
337.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471620085
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
192000 Watts
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
Overview
Weight
337.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471620085
