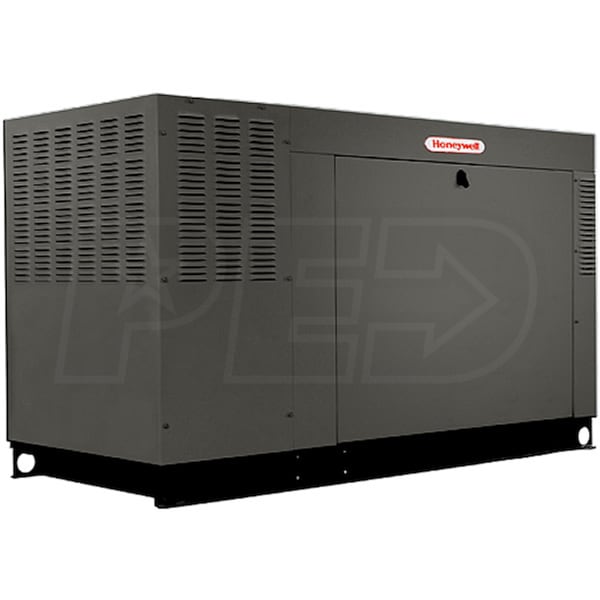

Honeywell™ 70 kW Commercial Automatic Standby Generator (NG - 120/208V 3-Phase) (48 State Compl.)

Model:

HT07068GNAX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honeywell™ 70 kW Commercial Automatic Standby Generator (NG - 120/208V 3-Phase) (48 State Compl.)
Honeywell™ 70 kW Commercial Automatic Standby Generator (NG - 120/208V 3-Phase) (48 State Compl.)
Model: HT07068GNAX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

70,000 Rated Watts

Surge Watts

70,000
Starting Watts

Fuel

Natural Gas

Engine

Generac 6.8 L V-10

  • Honeywell™ Commercial Automatic Standby Generator 120/208V Three-Phase
  • For buildings with 120/208V 3-Phase service
  • Runs on (NG) Natural Gas; Will NOT work with LP
  • Powered By Generac's 6.8L V-10 Liquid Cooled Engine
  • Runs at 1800 RPM, allowing for quieter operation, reduced fuel costs and longevity
  • PrecisionPower™ Electrical Technology - Less Than 5% THD
  • Utility quality power that won't harm electronics & micro-chip based appliances
  • Digital SYNC 1.0™ Generator Controller w/ 2-Line LCD Screen
  • Easily view logs of history, maintenance and events
  • External viewing window for generator status & breaker position
  • State-Of-The-Art Power Maximizing Regulation System
  • Optimized for fast response time to varying loads & +/- 1% Digital Voltage Regulation
  • WhisperCheck™ Self-Test Exercise Mode - Only 64 dB(A)
  • Slower engine speeds during testing, produces less noise and saves fuel
  • Aluminum Enclosure w/ RhinoCoat™ Finish
  • Withstands winds up to 150 mph & provides protection from the elements
  • Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
  • Provides fully automatic operation & total system compatibility
  • Non-SCAQMD Compliant - Not For Sale in CA or MA
  • 2-Year Limited Warranty
  • ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

HT07068GNAX
specs product image PID-62370
Overview
Weight
925 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
96.46 Inches
Product Width
36.8 Inches
Product Height
47.9 Inches
UPC
696471612707
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
70000 Watts
Surge Watts
70000 Watts
Fuel Type
Natural Gas
NG Power Capacity
67000 Watts
NG Fuel Consumption @ 50% Load
500 ft³/hr
NG Fuel Consumption @ 100% Load
1020 ft³/hr
Rated Amps
243 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 Run (64 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
300 Amps
