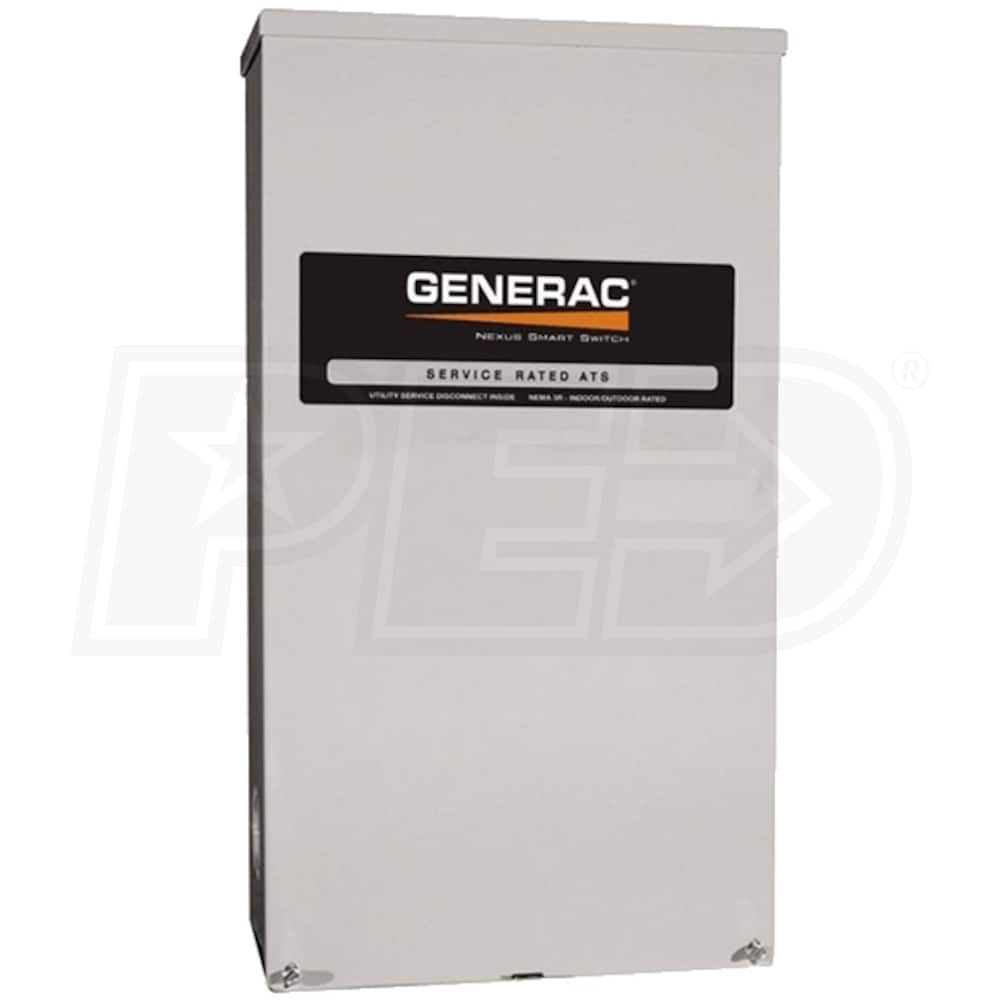

Generac Smart Switch™ 150-Amp Automatic Transfer Switch + AC Shedding (Service Disconnect)

Generac Smart Switch™ 150-Amp Automatic Transfer Switch + AC Shedding (Service Disconnect)
Model: RTSY150A3
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued
Sales Tax Extra $685.00Visit Site
No Sales Tax* (Except CA,GA)$685.00Visit Site
Sales Tax Extra $807.27Visit Site
Sales Tax Extra $699.00Visit Site
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 2
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
150
Load Mgmt.
Enclosure
Features
Features
  • 150-Amp Nexus™ Automatic Transfer Switch
  • For Generac Evolution™ & Generac Nexus™ & R200 Controllers
  • Leverages digital power management (PMM) technology
  • Ability to manage 2 A/C units with no additional hardware
  • Intelligently Manage 4 More Loads w/ Additional PMM Kit/Modules
  • PMM Starter Kit (6199) & PMM Module (6186) (Both Sold Separately)
  • Service Entrance Rated
  • Installs between main meter and service panel
  • Contains load side and line side disconnecting breaker
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • Tech Spec Summary:
  • Load transition type: Open Transition
  • Lug range: 400MCM - #4
  • For Use With Generac Generators Only
  • *Please Note - Switch is Compatible w/ DLM Modules*
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
36000 Watts
Rated Amps
150 Amps
Transfer Switch Style
Service Disconnect
ATS Service Disconnect
Yes
Max Utility Input
150 Amps
Max Generator Input
150 Amps
Maximum Wattage
36000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Product Length
30 Inches
Product Width
14 Inches
Product Height
8 Inches
Consumer Warranty
5 Years
UPC
696471614022
Type
Service Disconnect
Amp Rating
150
Load Mgmt.
Enclosure
Features
Features
  • 150-Amp Nexus™ Automatic Transfer Switch
  • For Generac Evolution™ & Generac Nexus™ & R200 Controllers
  • Leverages digital power management (PMM) technology
  • Ability to manage 2 A/C units with no additional hardware
  • Intelligently Manage 4 More Loads w/ Additional PMM Kit/Modules
  • PMM Starter Kit (6199) & PMM Module (6186) (Both Sold Separately)
  • Service Entrance Rated
  • Installs between main meter and service panel
  • Contains load side and line side disconnecting breaker
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • Tech Spec Summary:
  • Load transition type: Open Transition
  • Lug range: 400MCM - #4
  • For Use With Generac Generators Only
  • *Please Note - Switch is Compatible w/ DLM Modules*
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
36000 Watts
Rated Amps
150 Amps
Transfer Switch Style
Service Disconnect
ATS Service Disconnect
Yes
Max Utility Input
150 Amps
Max Generator Input
150 Amps
Maximum Wattage
36000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Product Length
30 Inches
Product Width
14 Inches
Product Height
8 Inches
Consumer Warranty
5 Years
UPC
696471614022
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
36000 Watts
Rated Amps
150 Amps
Transfer Switch Style
Service Disconnect
ATS Service Disconnect
Yes
Max Utility Input
150 Amps
Max Generator Input
150 Amps
Maximum Wattage
36000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Product Length
30 Inches
Product Width
14 Inches
Product Height
8 Inches
Consumer Warranty
5 Years
UPC
696471614022
Reviews
(2)
+
Generac Guardian RTSY150A3 Reviews & Ratings
Product Q&A
(2)
+
Guys I need a 20 kW natural gas home stand by with a 150A service rated transfer switch. Is this available as a package deal?
Harry Donovan
from Virginia
December 01, 2013
Read Response +
Answer
At this time Generac does not pre-package their home standby systems with a 150A transfer switch. You would need to purchase each item individually.....

Generac Generator Model 6250

Generac Switch Model RTSY150A3

Another option would be the Briggs & Stratton line of home standby units which do come with a 150A packaged option....The following link shows the available prepacked 150A home standby systems....

150A Prepackaged Home Standby Systems.
Hide Response -
Will this switch the whole house or just specific circuits?
Wayne Cook
from Texas
October 08, 2013
Read Response +
Answer
Thank you for your inquiry!

The Generac RTSY150A3 is designed to operate as a whole house transfer switch. This product is rated for utility services of 150 amps. If your home features a 150A service, then it would be ideal for you, otherwise it will only be suitable to energize a sub-panel, or specific circuits.
Hide Response -
