Generac Guardian™ 11kW Standby Generator System (200A Service Disc. + AC Shedding) + 3" GenPad™ + Battery Free Wireless Monitor (6664)

Generac Guardian™ 11kW Standby Generator System (200A Service Disc. + AC Shedding) + 3" GenPad™ + Battery Free Wireless Monitor (6664)
Our Price
Compare Prices
Shipping Info
Model: EGD-7033KIT
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Shop All Generator Systems
Shop Generac Guardian 8-20 kW Home Standby Generators
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Florida, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
11,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
11,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • 11kW (LPG) / 10kW (NG) Guardian Standby Generator
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes 200-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty
  • Plus 24/7•365 Customer Support so you have you questions answers when its convenient for you
  • Generac's G-Force Engine
  • Specifically desgined for the demanding environment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • True Power™ Electrical Technology & Automatic Digital Voltage Regulation (+/- 1%)
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
  • Easily monitor generator status anywhere with a smartphone, tablet, or PC
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger
  • Includes Free Wireless Monitor (6664)
    • Product Includes

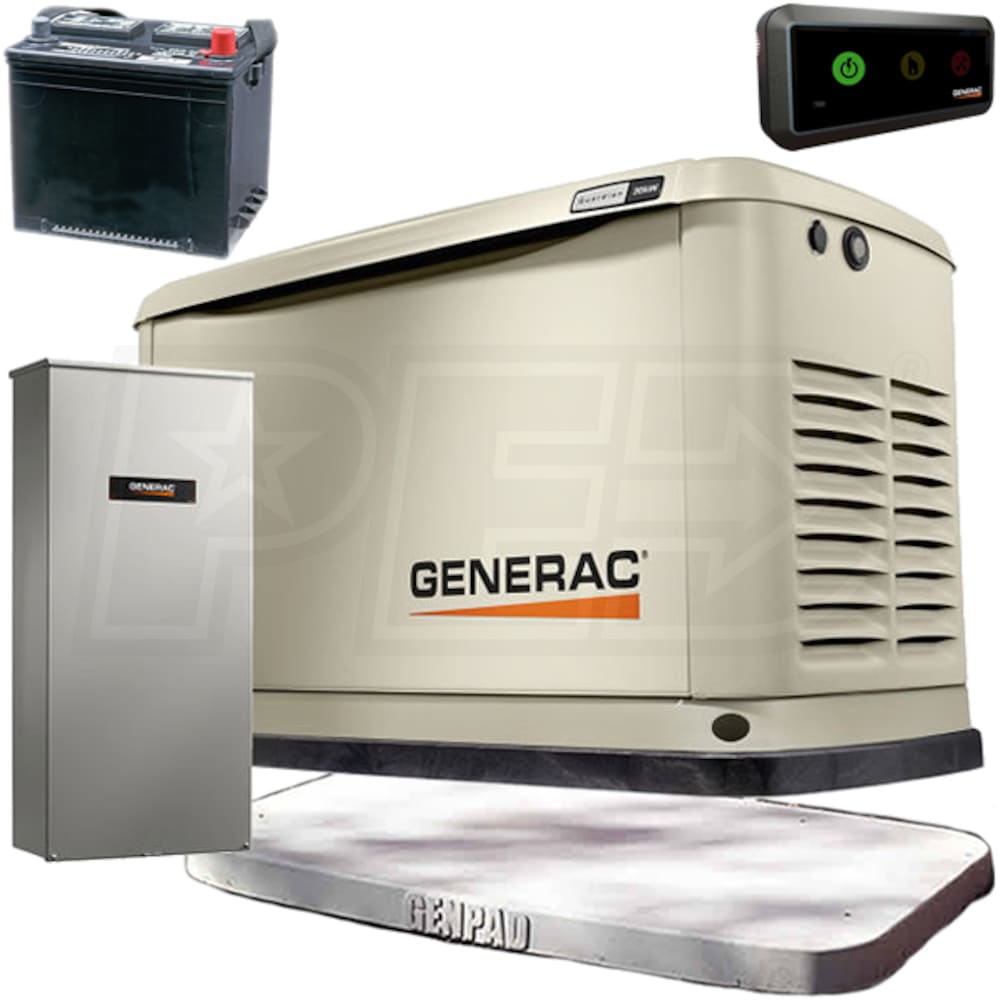

    • (1) Generac Guardian™ 11kW Aluminum Standby Generator System (200A Service Disconnect + AC Shedding) + Free Wireless Monitor (6664) (7033)

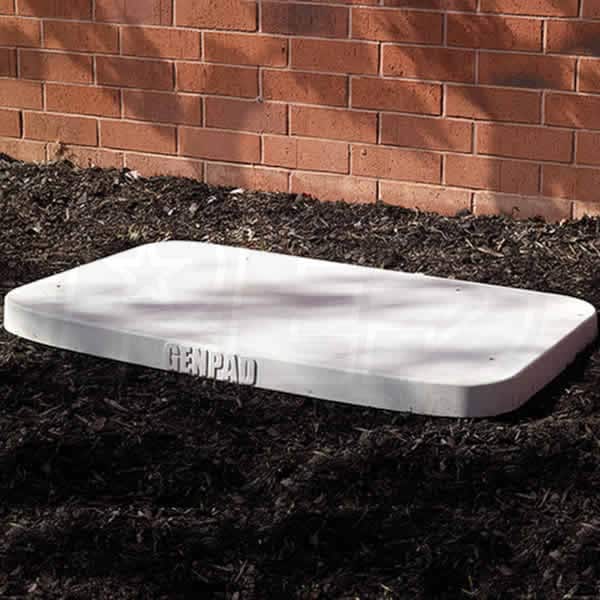

    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-22kW (2016+) (10000007852)
    • (1) Generac Wireless Local/Remote Monitor 6664 (6664-FREE)

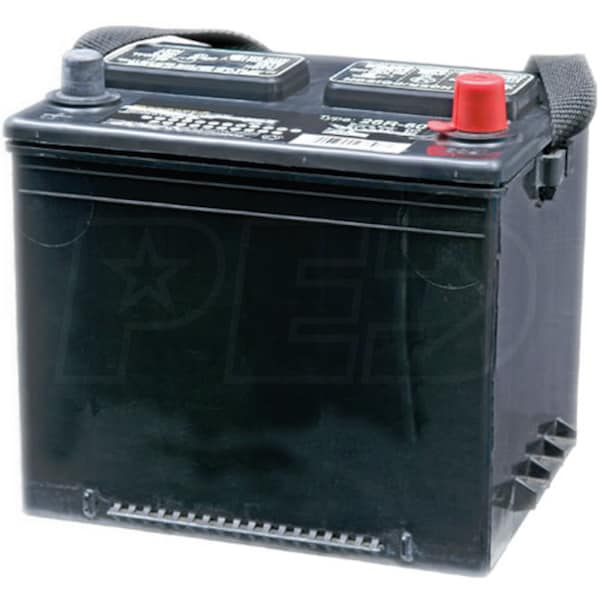

    • (1) UN2794, Battery, Wet, Filled with Acid,8 PGIII Emergency 800-424-9300 (5819)
Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
530 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
11000 Watts
Surge Watts
11000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
11000 Watts
NG Fuel Consumption @ 50% Load
123 ft³/hr
NG Fuel Consumption @ 100% Load
199 ft³/hr
LP Fuel Consumption @ 50% Load
1.19 gallons/hr
LP Fuel Consumption @ 100% Load
2.01 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Included
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
348 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25.1 Inches
Product Height
28.5 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
7033 Specifications+
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
530 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
11000 Watts
Surge Watts
11000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
11000 Watts
NG Fuel Consumption @ 50% Load
123 ft³/hr
NG Fuel Consumption @ 100% Load
199 ft³/hr
LP Fuel Consumption @ 50% Load
1.19 gallons/hr
LP Fuel Consumption @ 100% Load
2.01 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
348 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25.1 Inches
Product Height
28.5 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
10000007852 Specifications+
Product Specs
Frequency
60 Hertz
Overview
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
6664-FREE Specifications+
Product Specs
Frequency
60 Hertz
Overview
Weight
1 Pound
Consumer Warranty
1 Year
5819 Specifications+
Product Specs
Frequency
60 Hertz
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
