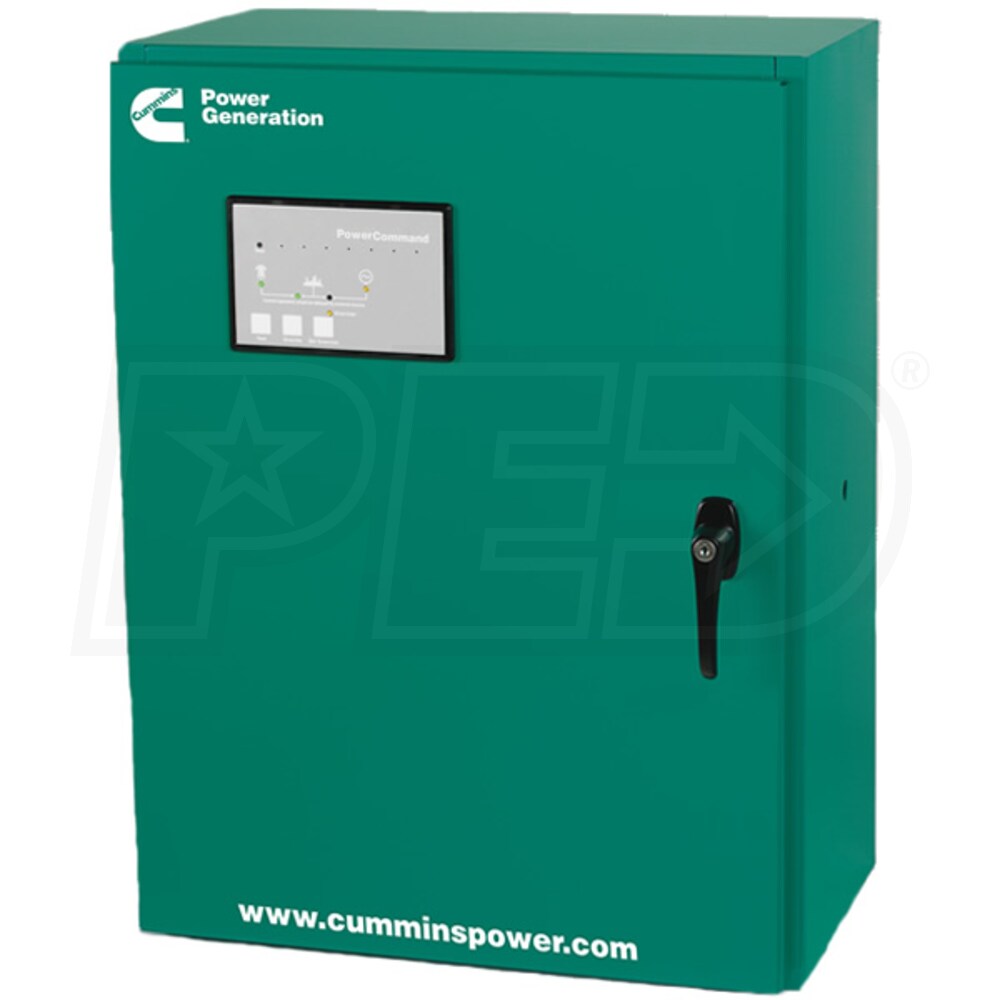

Cummins OTECSE225 - 225-Amp PowerCommand® Automatic Transfer Switch (Service Disconnect)

Cummins OTECSE225 - 225-Amp PowerCommand® Automatic Transfer Switch (Service Disconnect)
Model: A040V598
$4,235.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Lift Gate Service -
Add-Ons

Factory-Direct
This Item Is Built To Order
Shipping Info
Shipping Info
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, California, Hawaii, Indiana, North Dakota, Wisconsin or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
225
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 225-Amp Automatic Transfer Switch w/ Service Disconnect
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
54000 Watts
Rated Amps
225 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
225 Amps
Max Generator Input
225 Amps
Maximum Wattage
54000 Watts
UL Listed
Yes
Overview
Weight
580 Pounds
Product Length
73.6 Inches
Product Width
32.3 Inches
Product Height
19.7 Inches
Consumer Warranty
1 Year
Type
Service Disconnect
Amp Rating
225
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 225-Amp Automatic Transfer Switch w/ Service Disconnect
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
54000 Watts
Rated Amps
225 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
225 Amps
Max Generator Input
225 Amps
Maximum Wattage
54000 Watts
UL Listed
Yes
Overview
Weight
580 Pounds
Product Length
73.6 Inches
Product Width
32.3 Inches
Product Height
19.7 Inches
Consumer Warranty
1 Year
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
54000 Watts
Rated Amps
225 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
225 Amps
Max Generator Input
225 Amps
Maximum Wattage
54000 Watts
UL Listed
Yes
Overview
Weight
580 Pounds
Product Length
73.6 Inches
Product Width
32.3 Inches
Product Height
19.7 Inches
Consumer Warranty
1 Year
