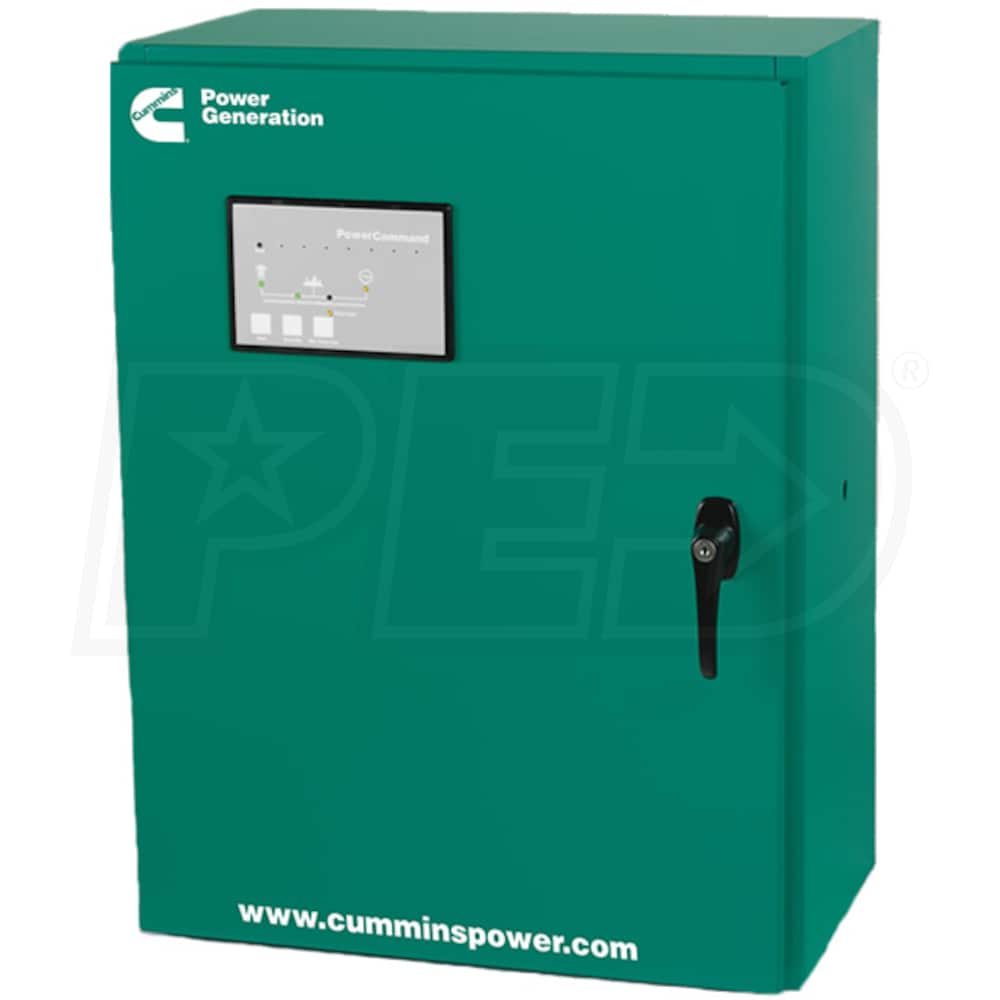

Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch

Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch
Model: A040C975
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, California, Hawaii, Indiana, North Dakota, Wisconsin or any destination outside of the United States
Shipping Info
Shipping Info
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Outdoor Automatic Transfer Switch
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
225 Pounds
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Consumer Warranty
1 Year
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Outdoor Automatic Transfer Switch
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand« Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
225 Pounds
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Consumer Warranty
1 Year
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
225 Pounds
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Consumer Warranty
1 Year
