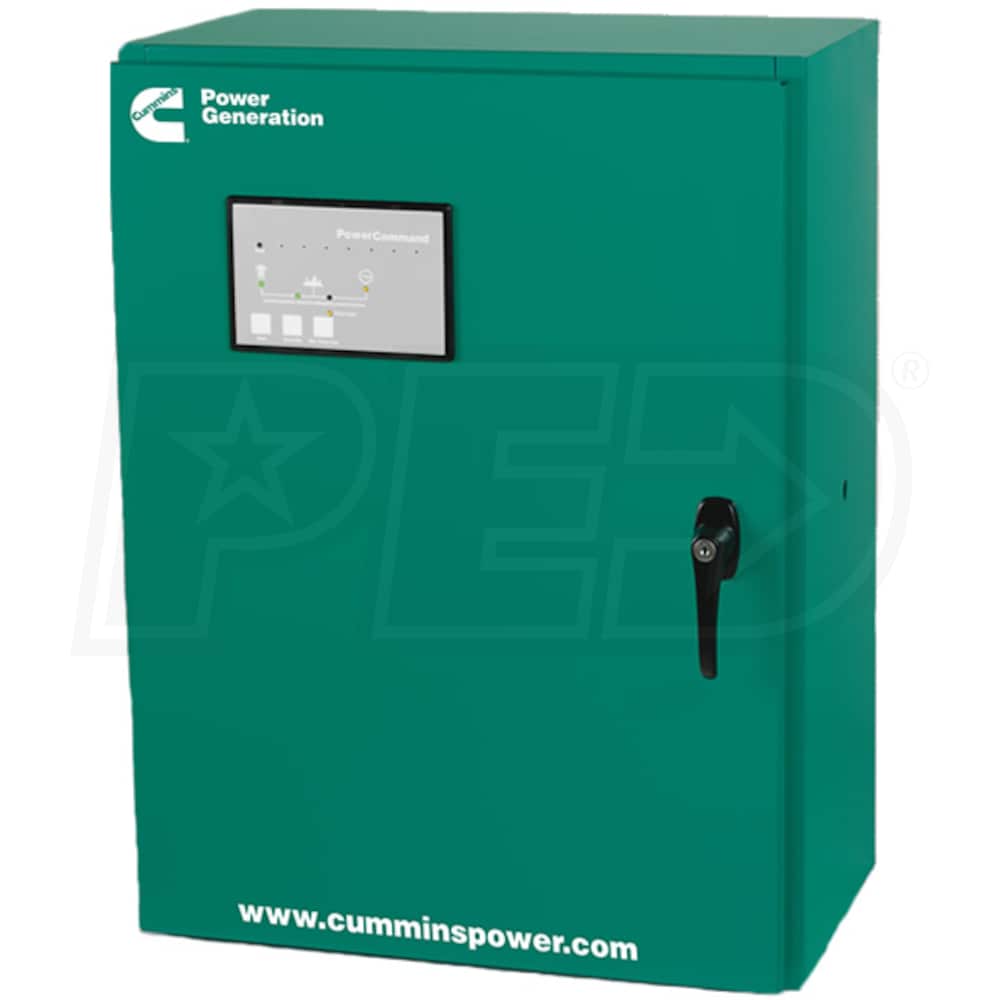

Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch (120/208V 3-Phase)

Model:

A040C970

Write a Review
$3,334.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Backordered
Estimated Availability March 08, 2022
Shipping to60601
synchrony card logo
$59 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch (120/208V 3-Phase)
Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch (120/208V 3-Phase)
Model: A040C970
$3,334.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Not Compatible

Voltage

120/208 Three-Phase

Enclosure

NEMA 3R

  • 400-Amp Outdoor Automatic Transfer Switch (120/208V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A040C970
specs product image PID-14261
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
275 Pounds
Consumer Warranty
1 Year
Product Length
59.5 Inches
Product Width
27 Inches
Product Height
16.5 Inches
