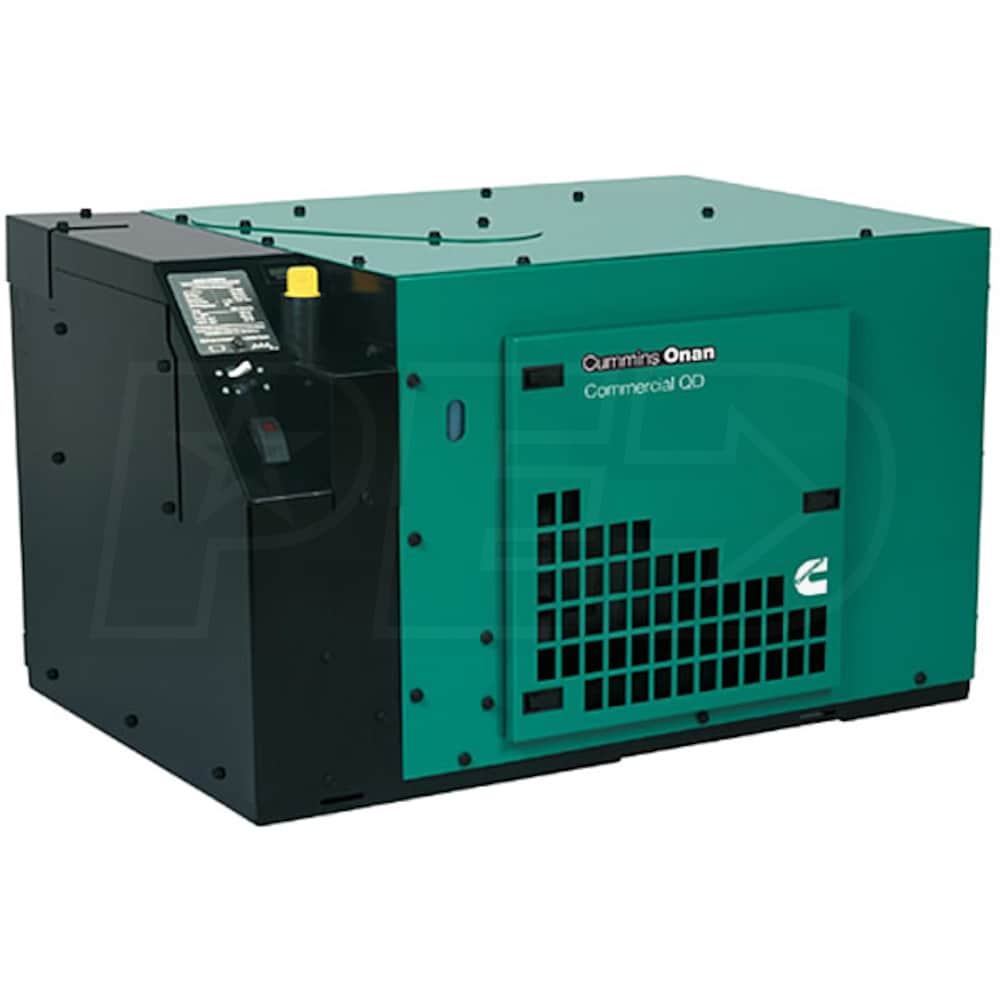

Cummins Onan QD 5000 - 5HDKBC-2861 - 5000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 25A)

Model:

A055T687

Write a Review
$9,352.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 16-20 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$164 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins Onan QD 5000 - 5HDKBC-2861 - 5000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 25A)
Cummins Onan QD 5000 - 5HDKBC-2861 - 5000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 25A)
Model: A055T687
$9,352.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

RV

Run Watts

5,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Kubota



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 5.0 kW Quiet Diesel Commercial Mobile Generator (120/240V 25A)
  • Lower noise, vibration, harshness (NVH)
  • Up to 15 dB(A) quieter than conventional diesel generator sets
  • Kubota 479cc Liquid-Cooled Diesel Engine (2880 RPM)
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter; .39 Gal/hr @ 1/2 load
  • Microprocessor Controlled w/ One-Touch Stop
  • Digital voltage regulatotion provides stabilty as loads change
  • Self-diagnostic capability to simplify troubleshooting
  • Complete, Integrated Package For Easy Installation & Service
  • Convenient, top-mounted switches and coolant level check/fills
  • Maintenace points accessible through easy-latch side service door
  • Integral Enclosed Muffler w/ USDA Approved Spark-Arrestor
  • Only 68 dB(A) at 10 ft (3 m), Before installation @ half load
  • Focalized Mounting System w/ 3-Point Vibration Isolation
  • Reduces vibration for quieter operation & extended operation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • Bulkhead Connections For Fuel & Battery (4A Battery Charging)
  • 2-Year / 2000 Hour Limited Warranty (See Spec Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A055T687
specs product image PID-15743
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Fuel Type
Diesel
Rated Amps
21 Amps
Diesel Fuel Consumption @ 50% Load
.39 gallons/hr
Decibel Rating @ 3m
68
Idle Control
Yes
Hour Meter
Yes
Fuel Consumption
.25-.6 gallons/hr
Circuit Breaker Size
25 Amps
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
479 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
400 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
34.5 Inches
Product Style
RV Generator
Product Width
22.9 Inches
Product Height
20.3 Inches
Additional Model Numbers

5 HDKBC-2861, A055T687

Reviews

Cummins Onan A055T687 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(2)
Product Questions Answered by Jared, the Generator Expert
Is this unit protected from EMP, manmade or natural?
Ted
from Massachusetts
June 24, 2018
Is this OK to install and operate on a bus while it is moving on the road? We have the unit mounted in a school bus and want to ensure it is OK to operate it while the bus is moving on the road. Should we mount the unit on shock absorbing fasteners? What is the specification for vibration from the vehicle to the generator while in transit?
Al W.
from Texas
December 21, 2016
