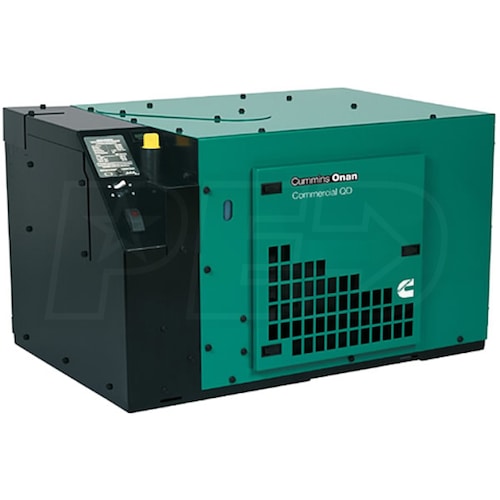

Cummins Onan QD 5000 - 5000 Watt Quiet Diesel Commercial Mobile Generator (120V 25A)

Cummins Onan QD 5000 - 5000 Watt Quiet Diesel Commercial Mobile Generator (120V 25A)
Our Price
Compare Prices
Shipping Info
Model: 5 HDKBC-2860
$8,135.00

Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, California, Hawaii, Indiana or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Engine
Kubota
Grade
Professional
Style
RV
Run Watts
5,000
Surge Watts
5,000 Starting Watts
Fuel
Diesel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 5.0 kW Quiet Diesel Commercial Mobile Generator (120V 25A)
  • Lower noise, vibration, harshness (NVH)
  • Up to 15 dB(A) quieter than conventional diesel generator sets
  • Kubota 479cc Liquid-Cooled Diesel Engine (2880 RPM)
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter; .39 Gal/hr @ 1/2 load
  • Microprocessor Controlled w/ One-Touch Stop
  • Digital voltage regulatotion provides stabilty as loads change
  • Self-diagnostic capability to simplify troubleshooting
  • Complete, Integrated Package For Easy Installation & Service
  • Convenient, top-mounted switches and coolant level check/fills
  • Maintenace points accessible through easy-latch side service door
  • Integral Enclosed Muffler w/ USDA Approved Spark-Arrestor
  • Only 68 dB(A) at 10 ft (3 m), Before installation @ half load
  • Focalized Mounting System w/ 3-Point Vibration Isolation
  • Reduces vibration for quieter operation & extended operation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • Bulkhead Connections For Fuel & Battery (4A Battery Charging)
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
479 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
5000 Watts
Rated Watts
5000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Hour Meter
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 25A (120V)
Overview
Weight
400 Pounds
Product Style
RV Generator
Product Length
34.5 Inches
Product Width
22.9 Inches
Product Height
20.3 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Engine
Kubota
Grade
Professional
Style
RV
Run Watts
5,000
Surge Watts
5,000 Starting Watts
Fuel
Diesel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 5.0 kW Quiet Diesel Commercial Mobile Generator (120V 25A)
  • Lower noise, vibration, harshness (NVH)
  • Up to 15 dB(A) quieter than conventional diesel generator sets
  • Kubota 479cc Liquid-Cooled Diesel Engine (2880 RPM)
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter; .39 Gal/hr @ 1/2 load
  • Microprocessor Controlled w/ One-Touch Stop
  • Digital voltage regulatotion provides stabilty as loads change
  • Self-diagnostic capability to simplify troubleshooting
  • Complete, Integrated Package For Easy Installation & Service
  • Convenient, top-mounted switches and coolant level check/fills
  • Maintenace points accessible through easy-latch side service door
  • Integral Enclosed Muffler w/ USDA Approved Spark-Arrestor
  • Only 68 dB(A) at 10 ft (3 m), Before installation @ half load
  • Focalized Mounting System w/ 3-Point Vibration Isolation
  • Reduces vibration for quieter operation & extended operation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • Bulkhead Connections For Fuel & Battery (4A Battery Charging)
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
479 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
5000 Watts
Rated Watts
5000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Hour Meter
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 25A (120V)
Overview
Weight
400 Pounds
Product Style
RV Generator
Product Length
34.5 Inches
Product Width
22.9 Inches
Product Height
20.3 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+−
Specifications
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
479 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
5000 Watts
Rated Watts
5000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Hour Meter
Yes
Grade Type
Professional
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 25A (120V)
Overview
Weight
400 Pounds
Product Style
RV Generator
Product Length
34.5 Inches
Product Width
22.9 Inches
Product Height
20.3 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
Will this generator run two 15000 btu A/C units plus have power to spare?
Roy C.
from Florida
May 27, 2018
Answer
This unit would not be large enough. Cummins recommends going to the QD 6000 unit to be able to run those A/C units.
+−
Is this OK to install and operate on a bus while it is moving on the road? We have the unit mounted in a school bus and want to ensure it is OK to operate it while the bus is moving on the road. Should we mount the unit on shock absorbing fasteners? What is the specification for vibration from the vehicle to the generator while in transit?
Al W.
from Texas
December 21, 2016
Answer
According to Cummins Onan the unit can run while the vehicle is in motion but this will depend on state and local codes. There are many areas where they will not allow this for safety reasons. The unit would not need any additional vibration mounts.
