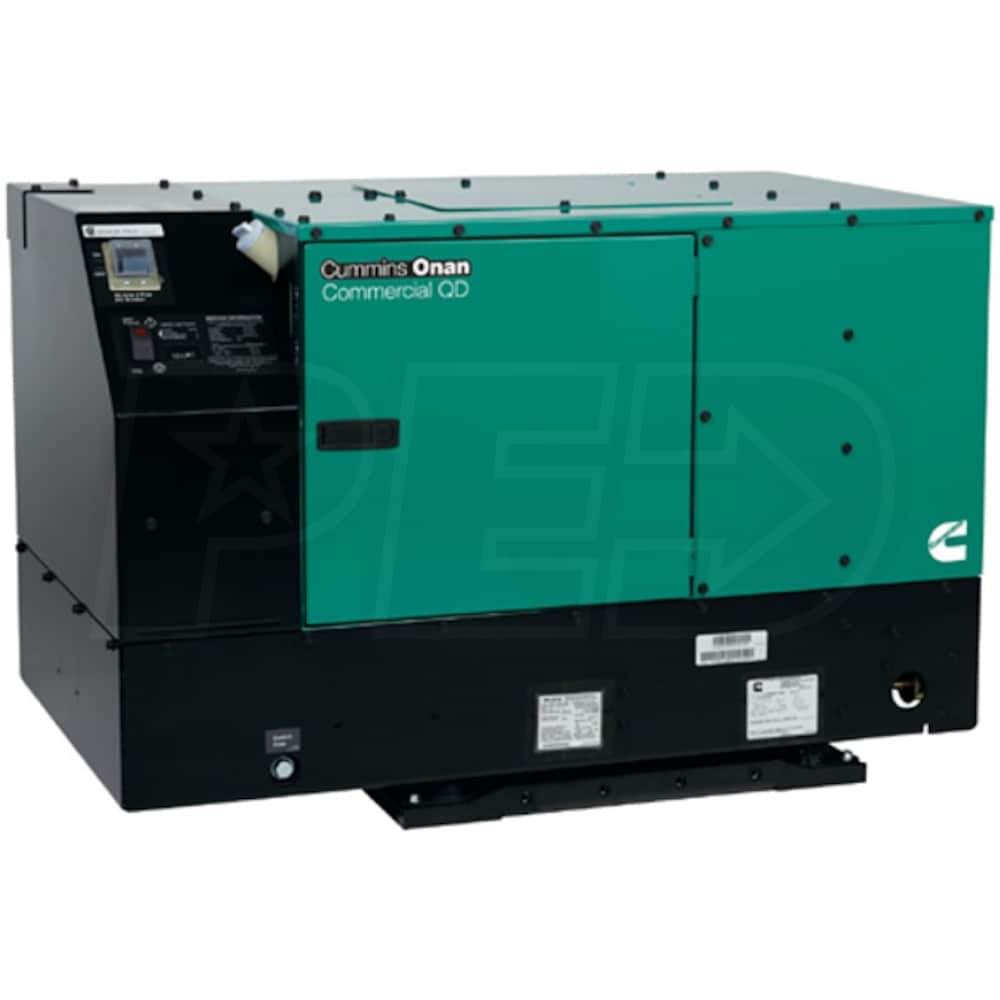

Cummins Onan QD 12000 - 12HDKCD-2209 - 12,000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 50A)
Model: A055E840
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$11,590.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, California, Hawaii, Indiana or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
12,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Kubota
Grade
Professional
Style
RV
Run Watts
12,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 12 kW Quiet Diesel Commercial Mobile Generator (120/240V)
  • Designed for tough commercial applications; 50A 2-Pole CB
  • Runs (3) 15,000 BTU AC units w/ 5000 additional watts available
  • Kubota 1647cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.48 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • Brush Type-AC Alternator w/ Digital Votage Regurlator
  • Provides relaible power & prevents damaging spikes
  • Computer-Controlled Constant Speed Operation
  • No waiting for power, ready when you need it
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control For Ease Of Use
  • Bulkhead Connections For Fuel & Battery (15A Battery Charging)
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
1647 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
816 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
RV Generator
Product Length
41.5 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers
12.0 HDKCD-2209, A055E840
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 50A (120/240V)
Grade
Style
Run Watts
12,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Kubota
Grade
Professional
Style
RV
Run Watts
12,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Kubota


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 12 kW Quiet Diesel Commercial Mobile Generator (120/240V)
  • Designed for tough commercial applications; 50A 2-Pole CB
  • Runs (3) 15,000 BTU AC units w/ 5000 additional watts available
  • Kubota 1647cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.48 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • Brush Type-AC Alternator w/ Digital Votage Regurlator
  • Provides relaible power & prevents damaging spikes
  • Computer-Controlled Constant Speed Operation
  • No waiting for power, ready when you need it
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control For Ease Of Use
  • Bulkhead Connections For Fuel & Battery (15A Battery Charging)
  • 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
1647 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
816 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
RV Generator
Product Length
41.5 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers
12.0 HDKCD-2209, A055E840
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 50A (120/240V)
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
1647 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
816 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
RV Generator
Product Length
41.5 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers
12.0 HDKCD-2209, A055E840
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 50A (120/240V)
Reviews
(1)
+
Cummins Onan A055E840 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
What type of battery would you recommend with this generator, and can you confirm if this unit comes with a muffler built in?
Steve
from New York
April 29, 2018
Answer
According to the Installation Manual, this unit requires a 12-volt battery housed in a separate compartment than the generator. The specs of the battery needed are in the manual. The unit has a built-in muffler but would still require a tailpipe and exhaust kit to be attached. They will also cover this in the install manual.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Hi Mike. Can you explain the difference between the HDKCD-2209 and the RV QD 12500? Thanks!
Steve
from New York
March 15, 2017
Answer
The two gens are very similar.  The main differences are battery charging and warranty. 12HDKCD-2209 is a 12000 watt Commercial Mobile generator with battery charging. 12.5HDKCB-11506 is a 12500 watt RV generator with no battery charging. The RV generator is recommended for use in applications that have living area, sleeping quarters, and restroom and is not being used for business. Standard warranty for CM gen is 2 year/2000 hr. Standard warranty for RV gen is 2 years + 3rd year parts/labor on major power train and gen parts, however, if an RV gen is used in a CM application, it will not receive the full warranty.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Is this OK to install and operate on a bus while it is moving on the road? We have the unit mounted in a school bus and want to ensure it is OK to operate it while the bus is moving on the road. Should we mount the unit on shock absorbing fasteners? What is the specification for vibration from the vehicle to the generator while in transit?
Al W.
from Texas
December 21, 2016
Answer
According to Cummins Onan the unit can run while the vehicle is in motion but this will depend on state and local codes. There are many areas where they will not allow this for safety reasons. The unit would not need any additional vibration mounts.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
