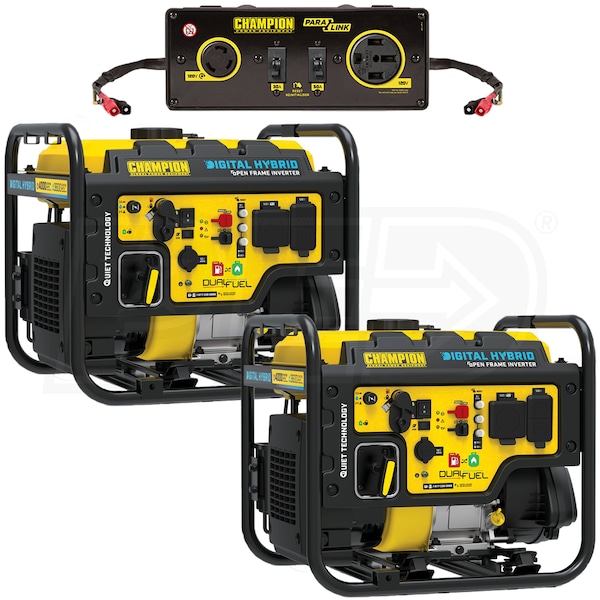

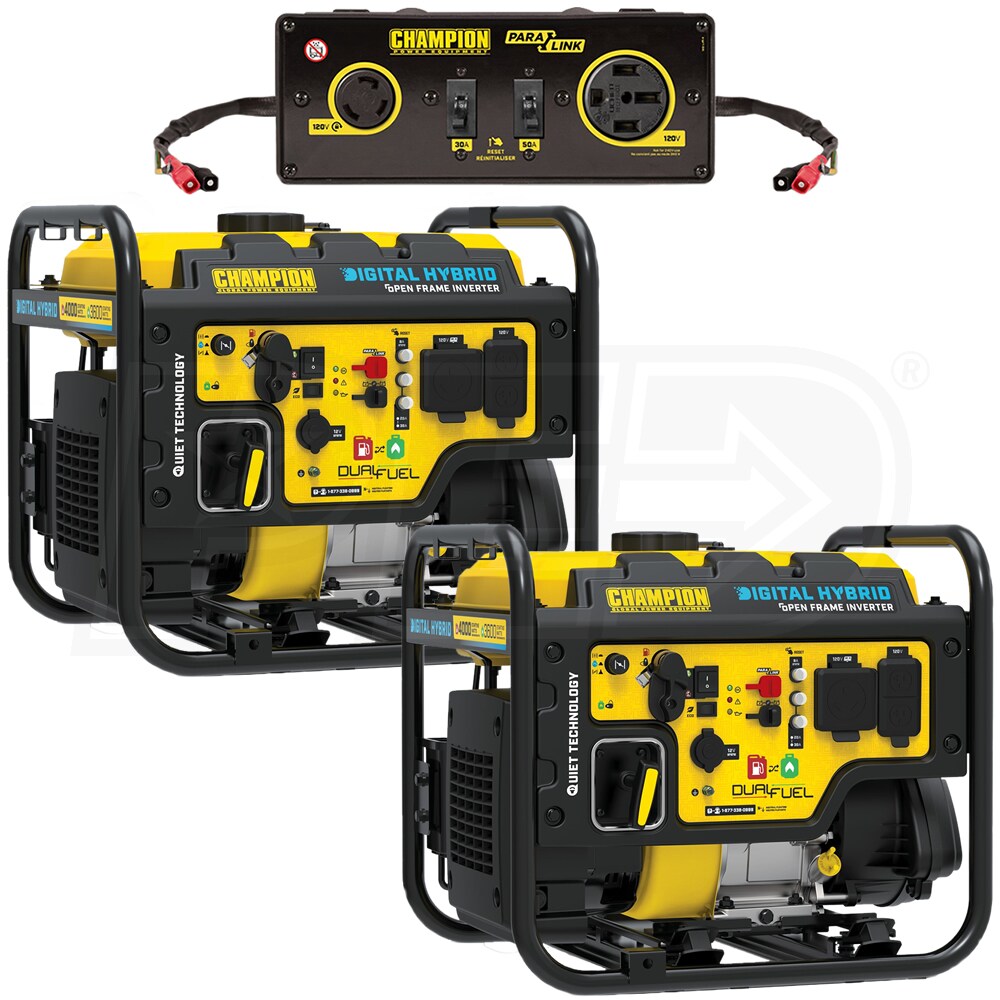

Champion 100574 - (2) 3500 Watt DH Series RV Open Frame Dual-Fuel Inverter Generator w/ Parallel Cable Kit (CARB)

Model:

EGD-100574-KIT

Write a Review
Sold Out
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 100574 - (2) 3500 Watt DH Series RV Open Frame Dual-Fuel Inverter Generator w/ Parallel Cable Kit (CARB)
Champion 100574 - (2) 3500 Watt DH Series RV Open Frame Dual-Fuel Inverter Generator w/ Parallel Cable Kit (CARB)
Model: EGD-100574-KIT
Sold Out
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Emergency

Style

Portable

Run Watts

3,500 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline/LP

Engine

Champion


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion "Digital Hybrid" Dual-Fuel Portable Generator Package
  • Ideal for a wide range of uses from RV power to emergency backup
  • Dual-Fuel Technology
  • Up to 3500 running watts & up to 4000 starting watts on gasoline
  • Up to 3150 running watts & up to 3600 starting watts on propane
  • Quiet Technology - 50% Quieter & 20% Lighter
  • Compared to a traditional 3500W Champion generator
  • Redesigned and reengineered for a more compact, quieter package
  • 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
  • Fuel-efficient, reliable and made for easier starting (Recoil)
  • Provides added protection to extend the life of the generator
  • Clean Power Technology - Less Than 3% THD
  • Safer power for your electronics and equipment
  • Economy Mode - Up to 17 Hours of Run Time @ 25% Load
  • Adjusts engine speed to the optimum level depending on load
  • Reduces fuel use and engine wear for extended operation
  • TT-30 RV Receptacle
  • Easily connect your 30A RV cord (Not Included) for quiet power
  • Fully Assembled - Out Of The Box
  • Just add oil (Not Included) and add gasoline or connect your LP tank
  • Parallel Operation Capability*
  • Increase available wattage when linking (2) Champion generators
  • *Requires Champion parallel kit (Not Included)
  • 12V DC Outlet
  • Includes 12V/DC USB adapter for charging phones/tablets
  • Also Includes:
  • Battery charging cables, Oil Funnel and Owner's Manual
  • LPG Hose w/ Regulator
  • Engine Oil NOT Included
  • 3-Year Limited Warranty - EPA & CARB/50 State Certified
  • Product Includes
    • (2) Champion 100574 - 3500 Watt DH Series RV-Ready Open Frame Dual-Fuel Inverter Generator w/ Quiet Technology (CARB) (100574)
    • (1) Champion 100319 - Parallel Cable Kit For Champion Inverter Generators 2800W & Larger (100319)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
RV Ready 30-Amp
10-Amp DC - Cigarette Adapter
Product Includes
  • (2) Champion 100574 - 3500 Watt DH Series RV-Ready Open Frame Dual-Fuel Inverter Generator w/ Quiet Technology (CARB) (100574)
  • (1) Champion 100319 - Parallel Cable Kit For Champion Inverter Generators 2800W & Larger (100319)
EGD-100574-KIT
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Combined Kit Watts
6000 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
3150 Watts
Rated Amps
29 Amps
Tank Size
2.9 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
82.2 Pounds
CA (CARB) Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Style
Portable Generator
Product Width
18.3 Inches
Product Height
18.9 Inches
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
3150 Watts
Rated Amps
29 Amps
Tank Size
2.9 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
82.2 Pounds
CA (CARB) Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Style
Portable Generator
Product Width
18.3 Inches
Product Height
18.9 Inches
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
Overview
Consumer Warranty
2 Years
Plugs
NEMA L5-30R
1
NEMA 14-50R
1
