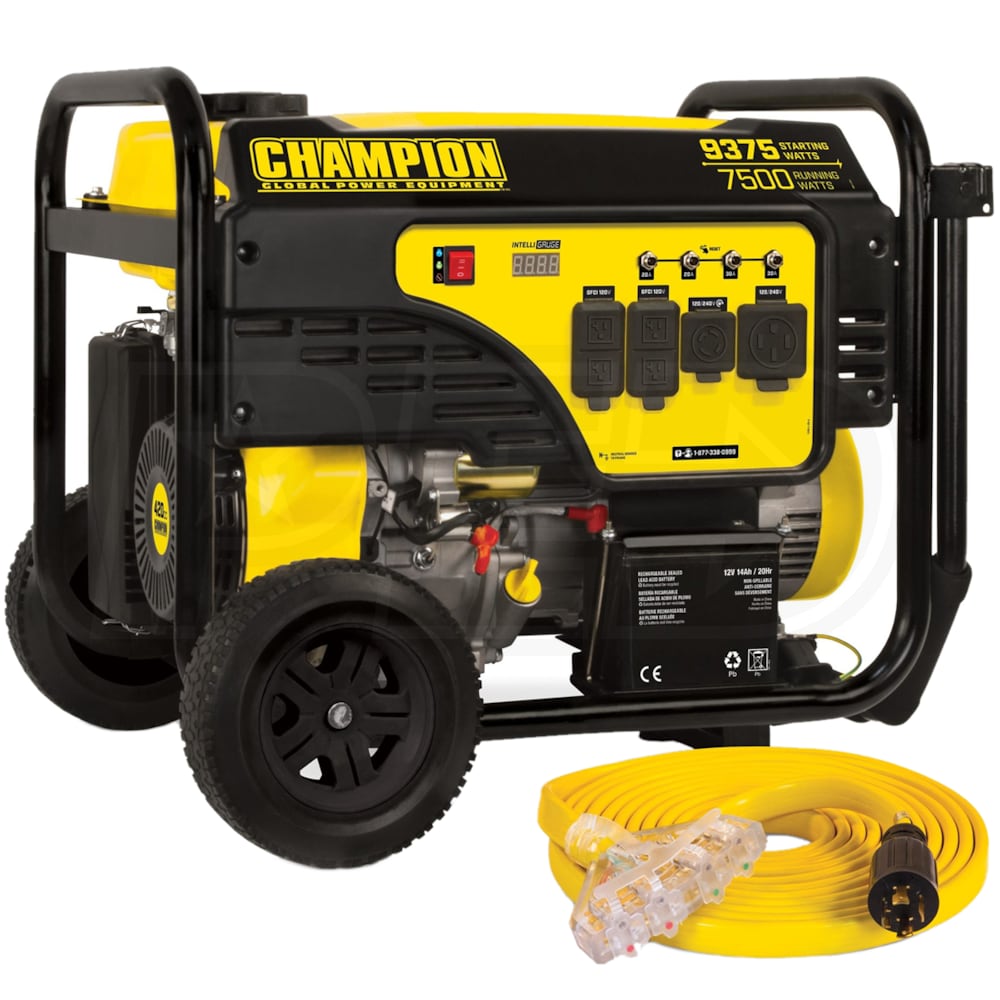

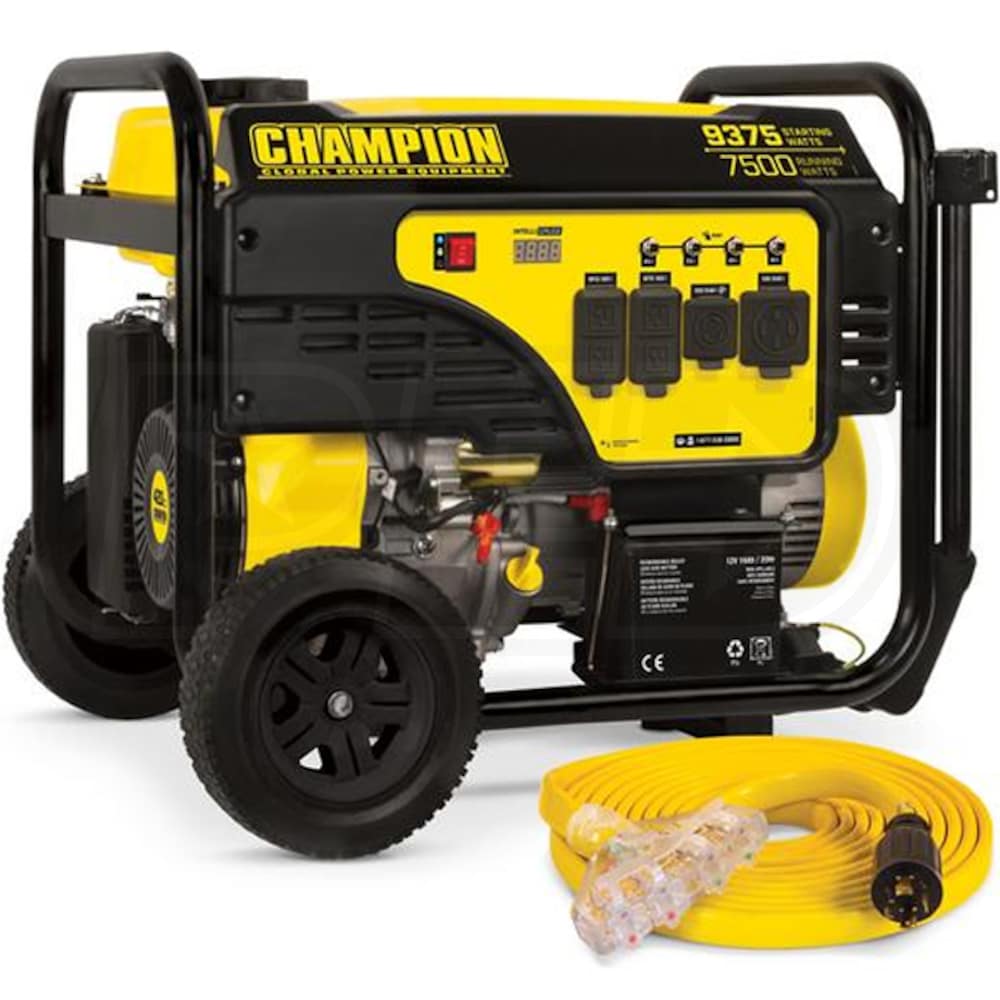

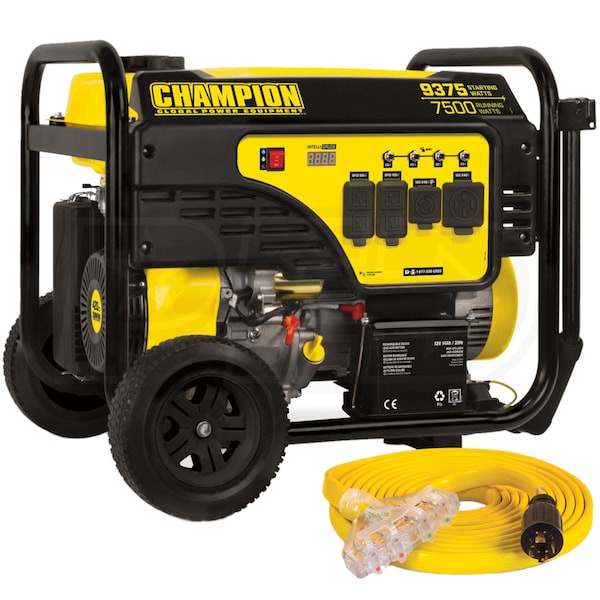

Champion 100693 - 7500 Watt Electric Start Portable Generator (CARB) w/ Convenience Cord
Model: 100693
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Champion
Features
Features
- Champion 7500 Watt Electric Start Portable Generator
- Power for your home, recreational activities & emergencies

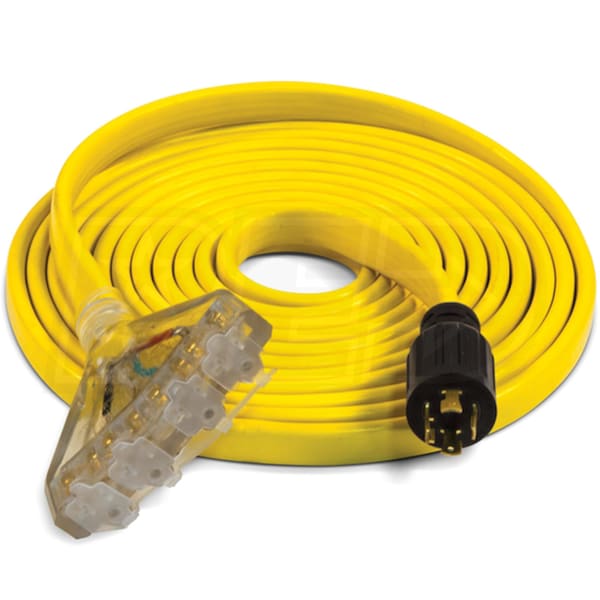

- Includes 30-Amp (4-Prong) 25-Foot Convenience Cord
- Split your power from 1 cord into (4) 5-15R / 5-20R outlets
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 389cc OHV Champion 4-Stroke Engine w/ Low Oil Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides extended protection during long run times
- Cold-Start Technology
- Makes starting your generator easy, even when temps are low

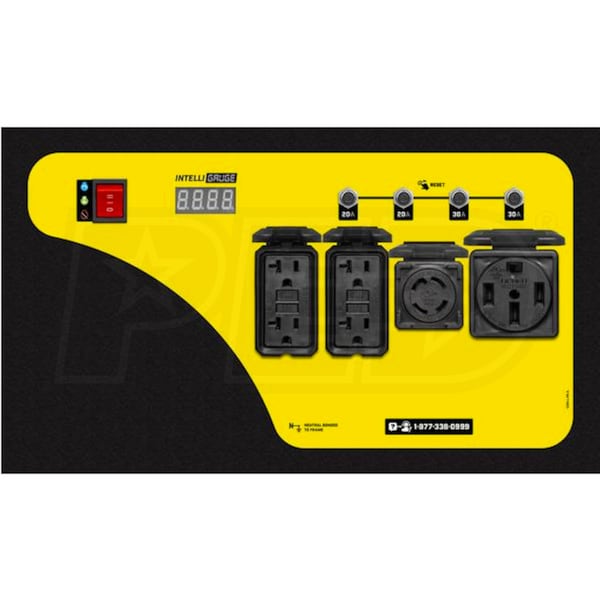

- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord (Included)
- (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 5.7-Gallon Fuel Tank
- Provides up to 8-hours of run time @ 50% load
- Volt Guard & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on even the most bumpy terrain
- Includes Engine Oil & Oil Funnel
- 3-Year Limited Warranty - CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
224 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.9 Inches
Product Height
23.6 Inches
UPC
817198022345
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Champion
Features
Features
- Champion 7500 Watt Electric Start Portable Generator
- Power for your home, recreational activities & emergencies
- Includes 30-Amp (4-Prong) 25-Foot Convenience Cord
- Split your power from 1 cord into (4) 5-15R / 5-20R outlets
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 389cc OHV Champion 4-Stroke Engine w/ Low Oil Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides extended protection during long run times
- Cold-Start Technology
- Makes starting your generator easy, even when temps are low
- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord (Included)
- (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 5.7-Gallon Fuel Tank
- Provides up to 8-hours of run time @ 50% load
- Volt Guard & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on even the most bumpy terrain
- Includes Engine Oil & Oil Funnel
- 3-Year Limited Warranty - CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
224 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.9 Inches
Product Height
23.6 Inches
UPC
817198022345
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
224 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.9 Inches
Product Height
23.6 Inches
UPC
817198022345
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
