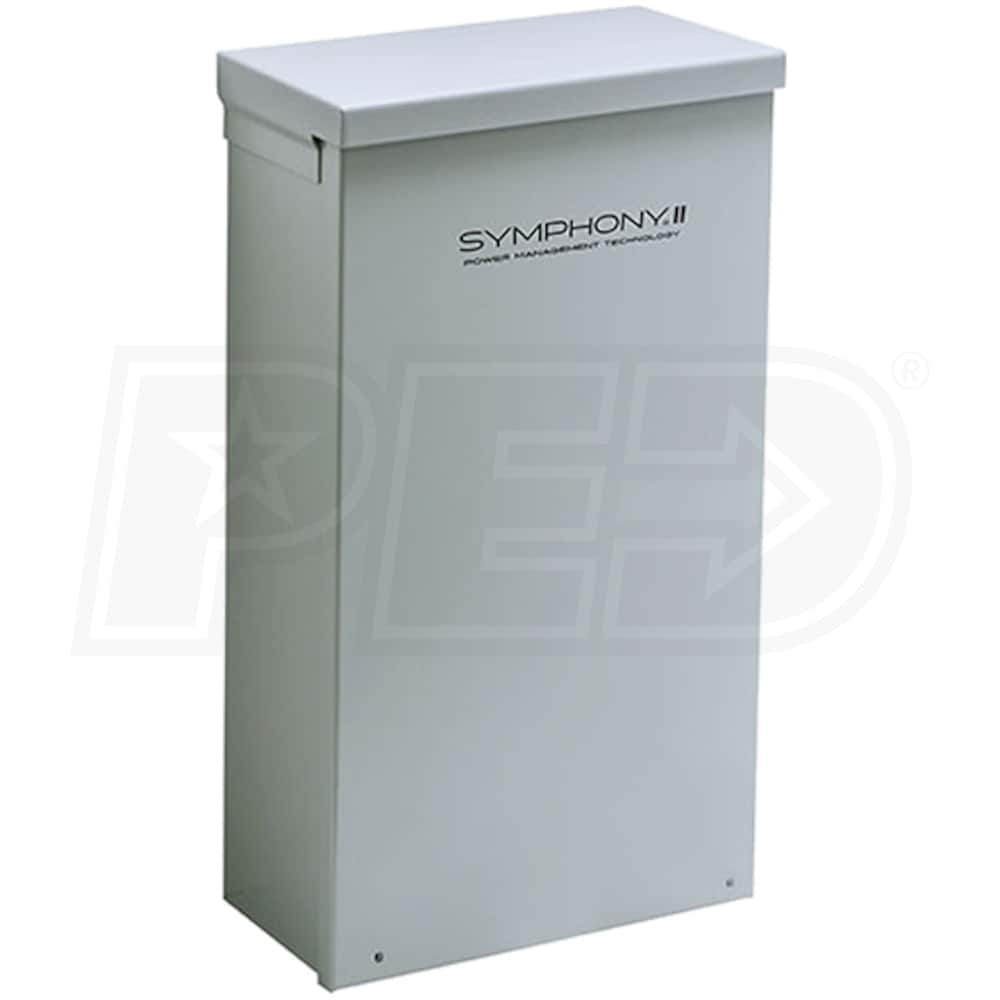

Briggs & Stratton 200-Amp Outdoor Automatic Transfer Switch w/ Symphony® II (Service Disconnect)
Briggs & Stratton 200-Amp Outdoor Automatic Transfer Switch w/ Symphony® II (Service Disconnect)
+
Share This Product
-
Product Description
-
6Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type
Amp Rating
200
Load Mgmt.
Built-In
Enclosure
Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
- Briggs & Stratton 200-Amp Automatic Transfer Switch
- Eliminates dangerous backfeeds and electrical overloads
- Service Entrance Rated (200A @ 240V)
- Offers abilty to power all circuits without a sub-panel
- Symphony® II Power Management System
- Prioritize the use of up to 8 high-wattage appliances
- Monitors & manages power usage to protect against overload
- Saves You Money - Whole-Power w/ A Smaller Generator
- A reduced initial investment, lower fuel & installation costs
- Symphony® II Modules
- Allows for the management of the high-wattage appliances
- NEMA 3R Outdoor Rated Enclosure
- Flexibility in mounting locations - indoor or outdoor
- 6-Year Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
65 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
16 Inches
Product Width
7 Inches
Product Height
30 Inches
UPC
011675710682
Type
