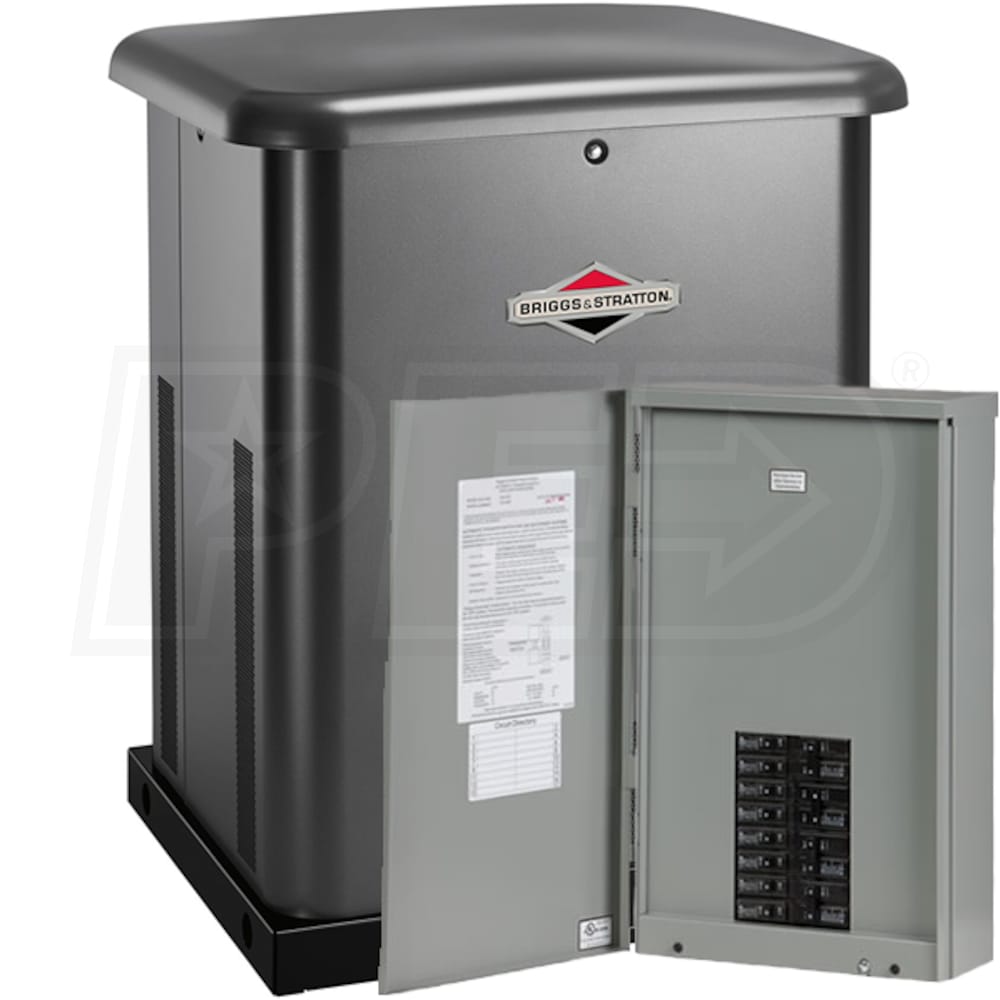

Briggs & Stratton 10kW Standby Generator System (100A 16-Circuit + AC Shedding)

Briggs & Stratton 10kW Standby Generator System (100A 16-Circuit + AC Shedding)
Model: 40451
$2,899.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

Free ShippingNo Sales Tax* (Except IL)$2,899.00Buy Now

(as of 07:02 CST - Details) Sales Tax Extra $2,899.00Visit Site
Sales Tax Extra $2,899.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 10kW (LP) /9kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 570cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • 100-Amp Automatic Transfer Switch w/ 16-Circuit LC (71047)
  • Allows for you to select priority circuits
  • Rated at 100-Amps @ 240-Volts (NEMA 3R)
  • ACCM-II Power Control Module Transfer Switch (2 x 3-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18” from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Includes Synthetic Oil & Battery Charger
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
10000 Watts
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
111 ft³/hr
NG Fuel Consumption @ 100% Load
169 ft³/hr
LP Fuel Consumption @ 50% Load
1.18 gallons/hr
LP Fuel Consumption @ 100% Load
1.82 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m
75 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
16
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
20A 120V
8
30A 240V
1
40A 240V
1
50A 240V
2
Overview
Made in USA
Yes
Weight
272 Pounds
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.4 Inches
Product Height
35.1 Inches
Consumer Warranty
5 Years
UPC
011675404512
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 10kW (LP) /9kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 570cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • 100-Amp Automatic Transfer Switch w/ 16-Circuit LC (71047)
  • Allows for you to select priority circuits
  • Rated at 100-Amps @ 240-Volts (NEMA 3R)
  • ACCM-II Power Control Module Transfer Switch (2 x 3-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18” from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Includes Synthetic Oil & Battery Charger
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
10000 Watts
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
111 ft³/hr
NG Fuel Consumption @ 100% Load
169 ft³/hr
LP Fuel Consumption @ 50% Load
1.18 gallons/hr
LP Fuel Consumption @ 100% Load
1.82 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m
75 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
16
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
20A 120V
8
30A 240V
1
40A 240V
1
50A 240V
2
Overview
Made in USA
Yes
Weight
272 Pounds
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.4 Inches
Product Height
35.1 Inches
Consumer Warranty
5 Years
UPC
011675404512
Product Specs
+
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
10000 Watts
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
111 ft³/hr
NG Fuel Consumption @ 100% Load
169 ft³/hr
LP Fuel Consumption @ 50% Load
1.18 gallons/hr
LP Fuel Consumption @ 100% Load
1.82 gallons/hr
Rated Amps
42 Amps
Decibel Rating @ 7m
75 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
16
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
20A 120V
8
30A 240V
1
40A 240V
1
50A 240V
2
Overview
Made in USA
Yes
Weight
272 Pounds
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.4 Inches
Product Height
35.1 Inches
Consumer Warranty
5 Years
UPC
011675404512
Reviews
(1)
+
Briggs & Stratton 40451 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Hi Mike. I have about a 1800 squ. ft house that is well insulated. I have a geo thermal heat pump for furnace and ac. I also have 2 pellet stoves one up stairs and one down stairs. I have a well that is 54 ft. deep and is run by a 3/4 horse motor. I also have ham radio gear that I would like to be abele to run. I also have 2 refrigerators a electric stove an 80 gallon hot water heater and an electric dryer. If I do not use the geo thermal heat pump what size generator will I need to run the house? I was thinking I could get away with a 12k generator.
Barry Heintz
from Michigan
June 27, 2016
Answer
In regards to your question, proper sizing of the generator is crucial to the success of any generator installation and requires a good working knowledge of electricity and its characteristics, as well as the varying requirements of the electrical equipment comprising the load. A certified electrician needs to be consulted for proper sizing and installation of any generator. When analyzing the electrical load, consult the manufacturer’s nameplate on each major appliance or piece of equipment to determine its starting requirements in terms of amps and voltage which can be calculated to watts using Ohms Law (Amps x Volts = Watts). When choosing the generator output select a rating that is approximately 20 to 25% higher than the peak load (for example, if the load is about 8 kilowatts, select a 10 kW generator). A higher rated generator will operate comfortably at approximately 80% of its full capacity and will provide a margin of flexibility if the load increases in the future. Note: Applications that are commercial, all-electric homes, have heat pump systems or geothermal systems require special installation procedures and a certified electrician must be contacted to evaluate and install these types of systems.
+
Is this product propane or gas?
Grsiela Orriola
from Connecticut
October 31, 2013
Answer
This home standby system operates on either NG (Natural Gas) or LP (Propane). They come from the factory set for NG and would be changed to LP during installation if needed.
