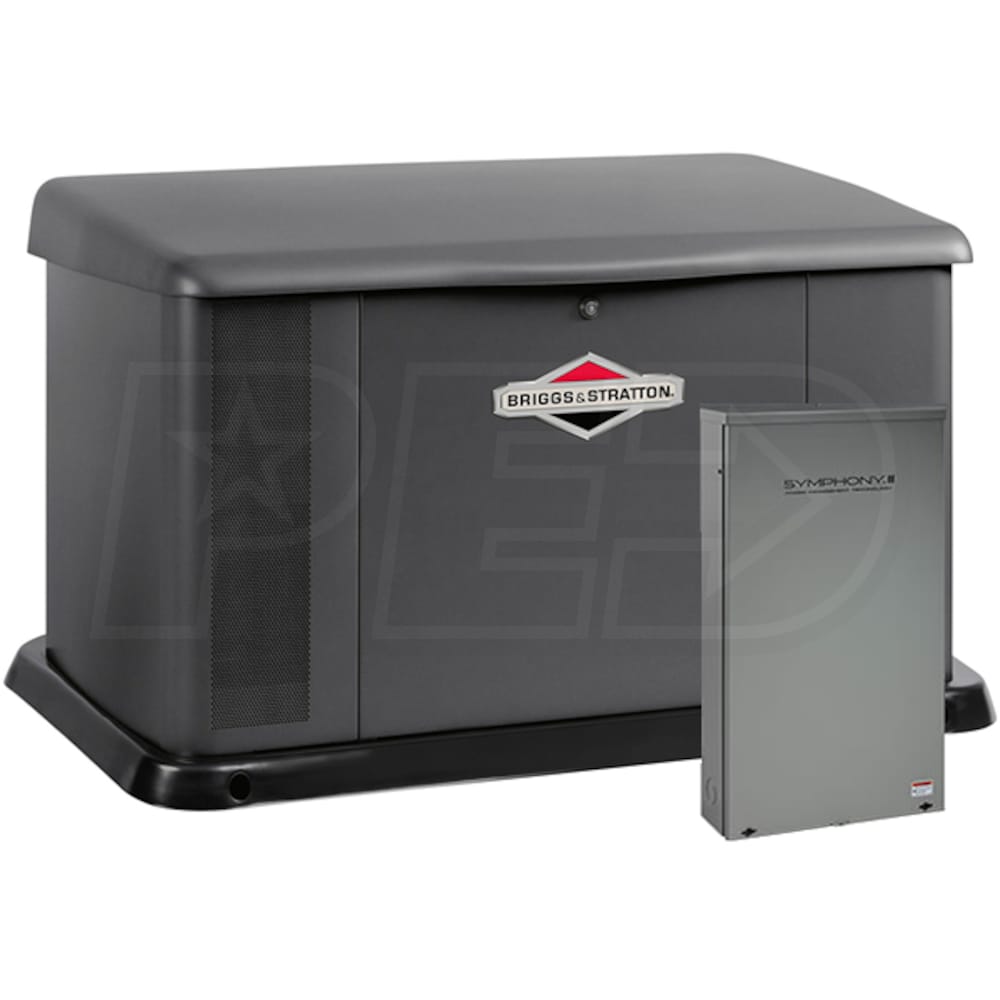

Briggs & Stratton 20kW Standby Generator System (Steel) (400A Split Service Disconnect + AC Shedding)

Free Cold Weather Kit ($259 Value)
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 40396
Briggs & Stratton 20kW Standby Generator System (Steel) (400A Split Service Disconnect + AC Shedding)
Our Price
Compare Prices
Shipping Info
Model: 40396
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (8)
Write A Review
$5,749.00
$5,174.10
Only 3 In-Stock
Ships Thursday, Nov 22nd
Free Shipping
Free Lift Gate Service -
Enclosure
Switch Options
Add-Ons
+$99.99

In-Stock Free Shipping$5,749.00$5,174.10Buy Now

(as of 09:17 CST - Details)Sales Tax Extra $5,599.00Visit Site
Sales Tax Extra $5,499.99Visit Site
Only 3 In-Stock
Ships Thursday, Nov 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 8
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • First In Its Class: Never Seen Before Transfer Switch Technology
  • Only compatible with Briggs & Stratton generators

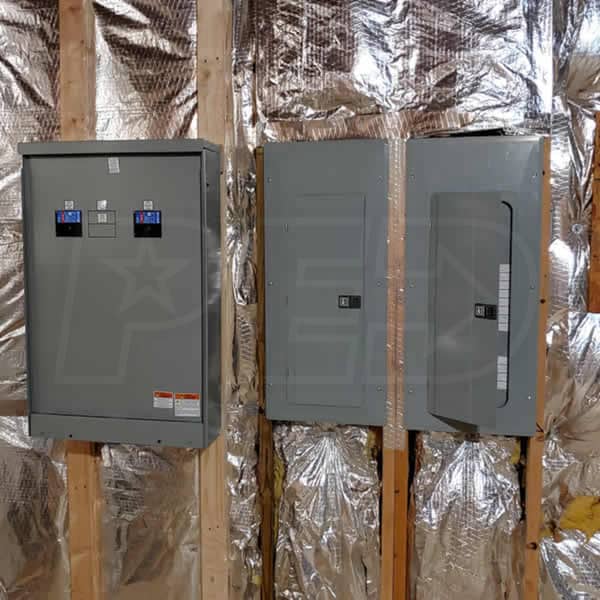

  • 400-Amp Service Entrance Auto Transfer Switch (71057) (NEMA 3R)
  • A UL Listed solution for 2 x 200-Amp Service Breakers
  • Easy install - one less switch, less wiring/time, fewer expenses
  • Smaller Transfer Switch
  • A cost effective, cleaner looking installation
  • Patented Central Air Technology Using Symphony II Transfer Panel
  • Manages demands of up to two 5-ton central air conditioners
  • Intelligently powers your whole home (load dependent)

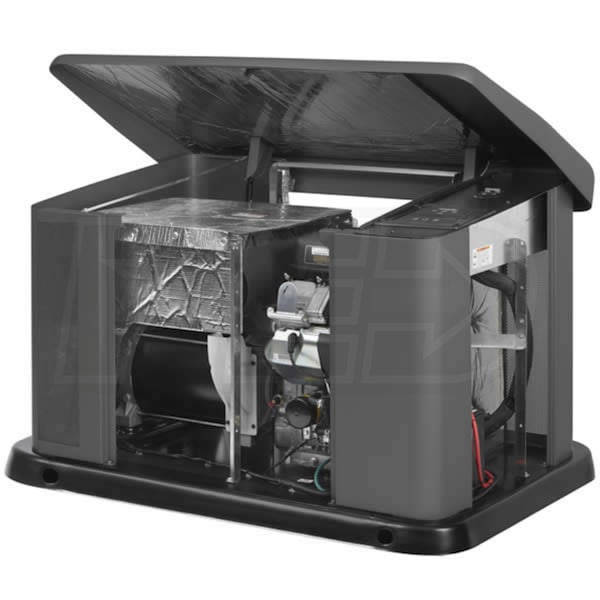

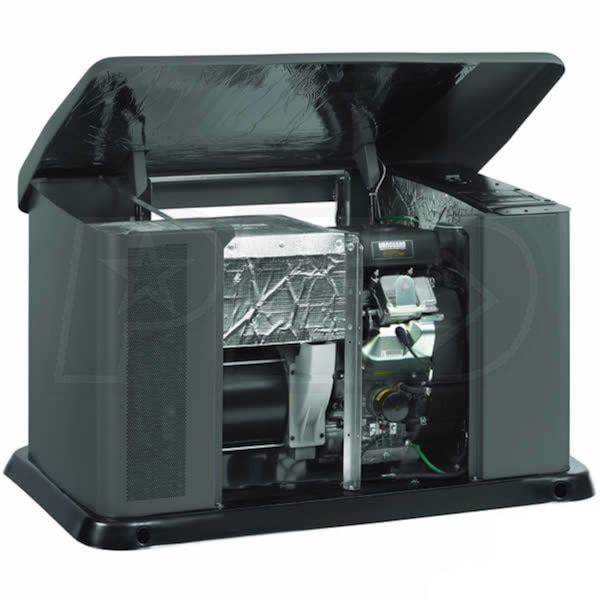

  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power

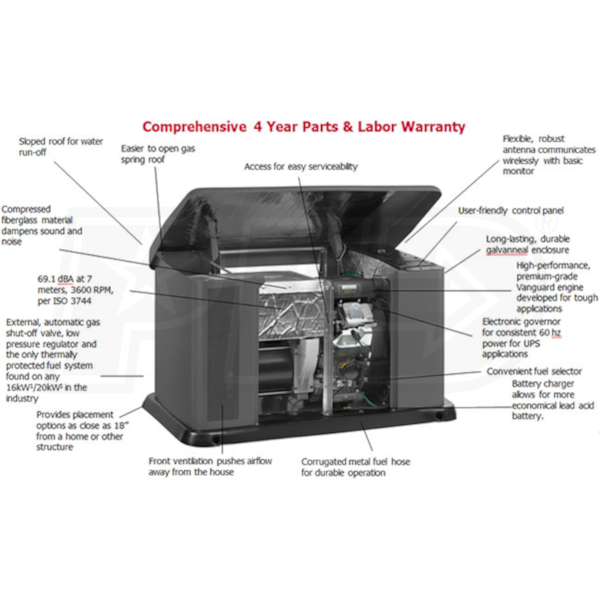

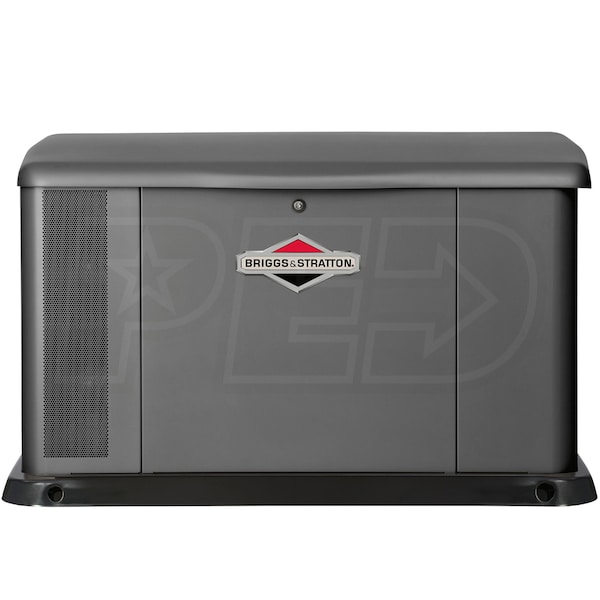

  • Galvanneal Steel Enclosure w/ Front Air Ventilation
  • Automotive rust proofing paint process reduces corrosion
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18” from structure
  • Turnkey Extras: Auto Battery Charger & Hour Meter
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
NG Fuel Consumption @ 100% Load
260 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.75 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Enclosure
Steel
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
500 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403966
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • First In Its Class: Never Seen Before Transfer Switch Technology
  • Only compatible with Briggs & Stratton generators
  • 400-Amp Service Entrance Auto Transfer Switch (71057) (NEMA 3R)
  • A UL Listed solution for 2 x 200-Amp Service Breakers
  • Easy install - one less switch, less wiring/time, fewer expenses
  • Smaller Transfer Switch
  • A cost effective, cleaner looking installation
  • Patented Central Air Technology Using Symphony II Transfer Panel
  • Manages demands of up to two 5-ton central air conditioners
  • Intelligently powers your whole home (load dependent)
  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • Galvanneal Steel Enclosure w/ Front Air Ventilation
  • Automotive rust proofing paint process reduces corrosion
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18” from structure
  • Turnkey Extras: Auto Battery Charger & Hour Meter
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
NG Fuel Consumption @ 100% Load
260 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.75 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Enclosure
Steel
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
500 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403966
Product Specs
+
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
NG Fuel Consumption @ 100% Load
260 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.75 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Enclosure
Steel
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
500 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403966
Reviews
(8)
+
Briggs & Stratton 40396 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Hi Mike. I have about a 1800 squ. ft house that is well insulated. I have a geo thermal heat pump for furnace and ac. I also have 2 pellet stoves one up stairs and one down stairs. I have a well that is 54 ft. deep and is run by a 3/4 horse motor. I also have ham radio gear that I would like to be abele to run. I also have 2 refrigerators a electric stove an 80 gallon hot water heater and an electric dryer. If I do not use the geo thermal heat pump what size generator will I need to run the house? I was thinking I could get away with a 12k generator.
Barry Heintz
from Michigan
June 27, 2016
Answer
In regards to your question, proper sizing of the generator is crucial to the success of any generator installation and requires a good working knowledge of electricity and its characteristics, as well as the varying requirements of the electrical equipment comprising the load. A certified electrician needs to be consulted for proper sizing and installation of any generator. When analyzing the electrical load, consult the manufacturer’s nameplate on each major appliance or piece of equipment to determine its starting requirements in terms of amps and voltage which can be calculated to watts using Ohms Law (Amps x Volts = Watts). When choosing the generator output select a rating that is approximately 20 to 25% higher than the peak load (for example, if the load is about 8 kilowatts, select a 10 kW generator). A higher rated generator will operate comfortably at approximately 80% of its full capacity and will provide a margin of flexibility if the load increases in the future. Note: Applications that are commercial, all-electric homes, have heat pump systems or geothermal systems require special installation procedures and a certified electrician must be contacted to evaluate and install these types of systems.
+
How does this unit handle load management? I have two AC units and a couple high-wattage appliances. Would I require additional load modules, or can it manage six loads (more if bundled) out of the box as I've been told? Also, someone told me that the ATS amperage has to match the service amerage. I have 300a service (150x2), so the statement suggested I can't use the 400a ATS of this unit. Is there any veracity to this claim? Thanks a lot.
KL
from New Jersey
November 18, 2013
Answer
The unit (40396) by itself is set to handle up to 2 standard AC units with its ACCM technology, but if you want to add additional large wattage loads you would need to get their Load Control Center (Command Central™) which can handle up to 4 additional large load items.

Command Central - Load Control Center

Typically yes, the transfer switch amperage needs to match the incoming utility amperage. However, some local codes allow a larger transfer switch since the switch is a pass through device while you are on utility service where your main breaker is the safety device for your electrical system. You will need to check with your local inspector or AHJ (Authority Having Jurisdiction) to see if they will allow it.

If that is not an option then then suggestion would be the purchase the Generac 20kW model 6250 and then their 300A ATS which has built-in load shedding with the only additional items required to manage the other loads (other then AC) would be the PMM modules - (1) 6199 & (3) 6186.

Generac Model 6250

Generac Model RTSY300A3 - 300A ATS

Generac Model 6199 - PMM With 24V Start Kit (1 Required if adding any additional load controls)

Generac Model 6186 - PMM Only (Up To 3)
+
I need a 20kW natural gas generator. But they seem to only come with a 200A panel. I believe I need a 300A panel. Is there a big price difference in purchasing a 300A panel with the generator? I didn't see it on your website. Can you tell me the price?
Peter Kearns
from New Jersey
July 13, 2013
Answer
If you have a specific application that does not meet the prepackaged units you would purchase the items individually instead. The packaged systems are put together by the appropriate manufacturer and cannot be altered.

Briggs does not offer a 300A switch so you would need to go to the larger 400A switch if you intend on powering the entire home and that system is already prepackaged. (Model 40396).

Generac does offer a 300A switch so you would purchase the generator by itself (Model 6250) and the switch separately (Model RTSY300A3). Just add each item to the cart and enter your state and zip for the total.

We do recommend consulting with a certified electrician for proper generator sizing and installation.
