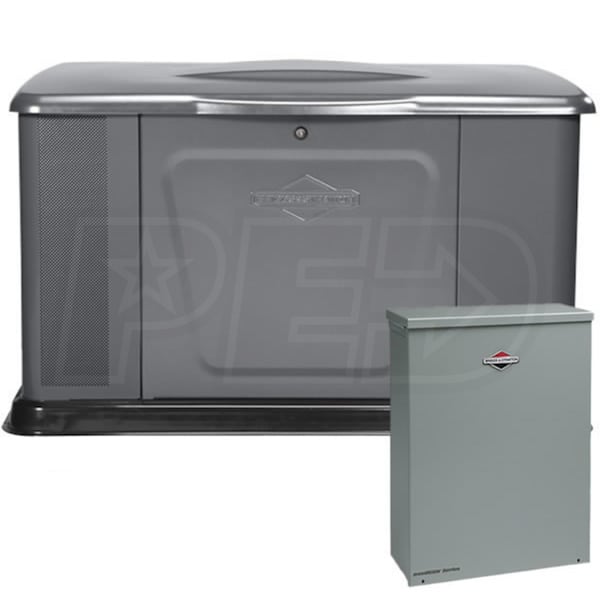

Briggs & Stratton 16kW Standby Generator System (100A Service Disconnect + AC Shedding)

Briggs & Stratton 16kW Standby Generator System (100A Service Disconnect + AC Shedding)



Product Discontinued Product Discontinued
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
16,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
16,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 16kW (LP) /14.4kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18 from structure
  • 100-Amp Service Entrance Rated Automatic Transfer Switch (71045)
  • Offers ability to power all circuits without a sub-panel
  • Rated at 100-Amps @ 240-Volts (NEMA 3R)
  • Turnkey Extras: Auto Battery Charger & Hour Meter
  • Industry Leading 5-Year Parts, Labor & Travel Warranty
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Weight
483 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403928
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
163 ft³/hr
NG Fuel Consumption @ 100% Load
244 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.14 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch
Automatic (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Transfer Switch Amperage
100-Amps
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Grade
Style
Run Watts
16,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
16,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 16kW (LP) /14.4kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18 from structure
  • 100-Amp Service Entrance Rated Automatic Transfer Switch (71045)
  • Offers ability to power all circuits without a sub-panel
  • Rated at 100-Amps @ 240-Volts (NEMA 3R)
  • Turnkey Extras: Auto Battery Charger & Hour Meter
  • Industry Leading 5-Year Parts, Labor & Travel Warranty
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Weight
483 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403928
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
163 ft³/hr
NG Fuel Consumption @ 100% Load
244 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.14 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch
Automatic (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Transfer Switch Amperage
100-Amps
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Product Specs
+
Specifications
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Weight
483 Pounds
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
Consumer Warranty
5 Years
UPC
011675403928
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
163 ft³/hr
NG Fuel Consumption @ 100% Load
244 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.14 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Transfer Switch
Automatic (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Transfer Switch Amperage
100-Amps
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
