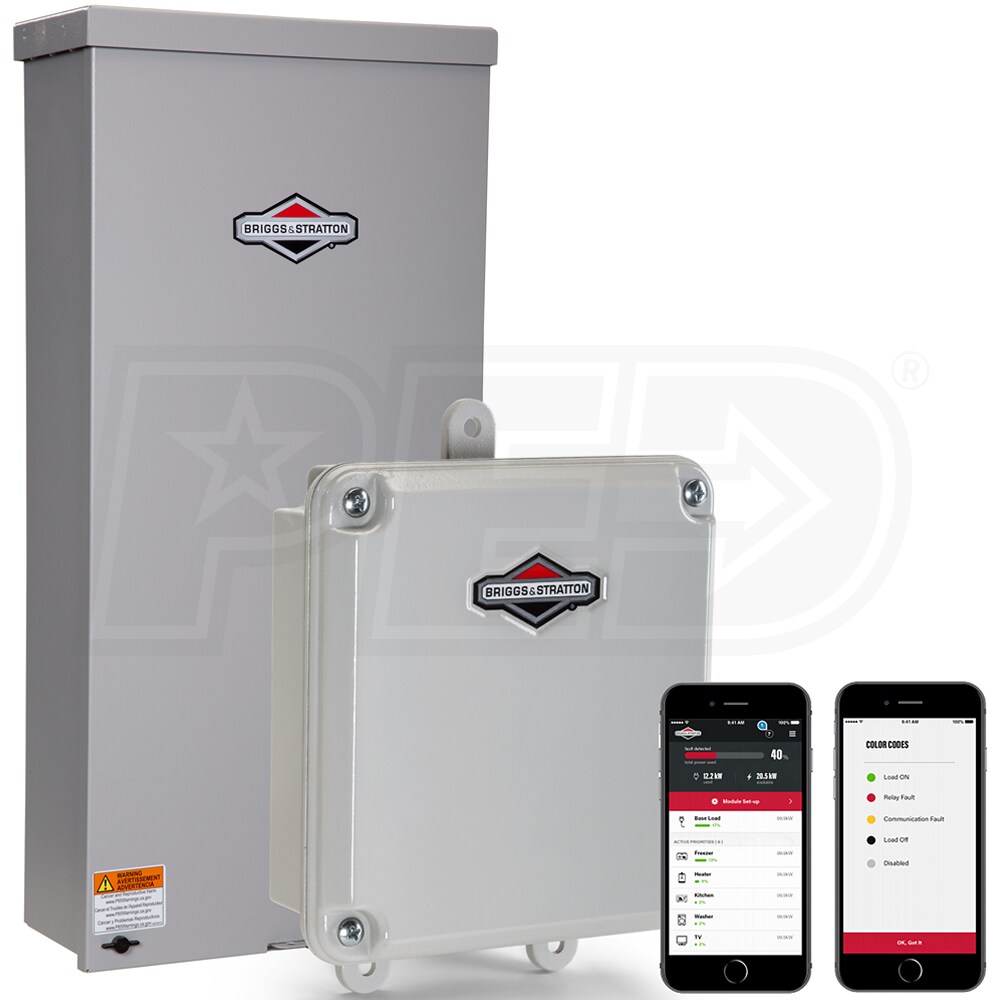

Briggs & Stratton 200-Amp Outdoor Automatic Transfer Switch (Service Disc.) w/ Amplify™ Power Mgmt.& InfoHub WiFi
Model: 071271
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
Product Description
+−
Type
Amp Rating
200
Load Mgmt.
Sold Separately
Enclosure
Type
Service Disconnect
Load Mgmt.
Sold Separately
Enclosure
NEMA 3R
Features
Features
- Briggs & Stratton 200-Amp Automatic Transfer Switch
- For Briggs & Stratton air-cooled generators w/ the GC-1031 controller
- Service Entrance Rated (200A @ 240V)
- Offers ability to power all circuits without a sub-panel
- Saves $$$ - Whole-House Power w/ A Smaller Generator
- A reduced initial investment, lower fuel & installation costs
- NEMA 3R Outdoor Rated Enclosure
- Flexibility in mounting locations - indoor or outdoor
- Amplify™ Power Management
- Active management of high wattage appliances
- Real time ability to change priorities
- Standby Generator Management App
- Easily change priorities and two-way communication
- Provides real-time generator status
- Manage Up-To 32 Modules (Sold Separately)
- Eliminates risk of overloading your generator
- Easier Module Installation - No Neutral Required
- Wireless communication to power management modules
- No requirement for separate 120V for Low voltage modules
- Amplify™ Gateway (Included)
- Works exclusively with GC-1031 controllers
- Designed for current Briggs & Stratton generators
- Optional Battery UPS (Not Included)
- Allows you to backup Wi-Fi router to maintain signal
- 6-Year Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Sold Separately
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
65 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
16 Inches
Product Width
7 Inches
Product Height
30 Inches
UPC
011675712716
