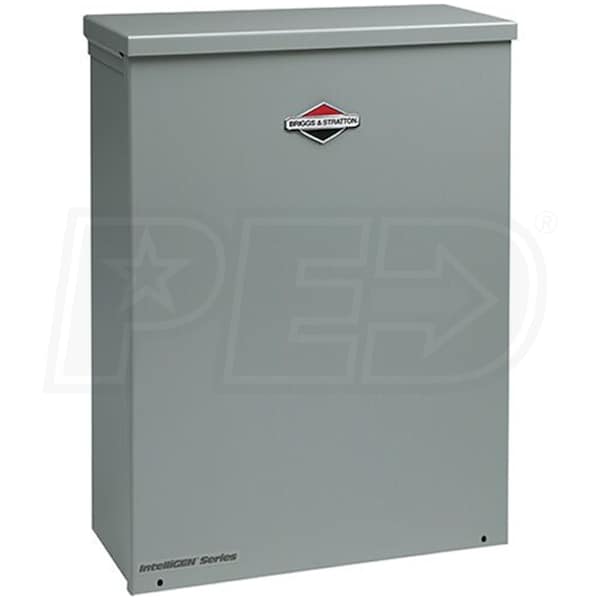

Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding
Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type
Amp Rating
100
Circuits
16
Enclosure
Type
Load Center
Circuits
16
Enclosure
NEMA 3R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Maximum Safety, Comfort and Efficiency
- Compatible with 12-20kW Intelligen Standby Generator
- Rated at 100-Amps @ 240V
- 16-Circuit Design (Breakers Not Included)
- Allows you to select your priority circuits
- Manage up to 2 AC units
- AC Power Control Module (ACCM)
- Imprints starting wattage of your AC in the control board
- Monitors usage/watts until your AC can be started
- Assures usage while preventing overload
- Built-In AC Delay For AC Start-up
- Allows for pressure to bleed off AC motor
- Makes start-up less power intensive
- Nema 3R Enclosure
- Flexibility in mounting locations - indoor or outdoor
- UL1008 Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Weight
37 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
24 Inches
Product Width
14 Inches
Product Height
6 Inches
Type
Amp Rating
100
Circuits
16
Enclosure
Type
Load Center
Circuits
16
Enclosure
NEMA 3R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
