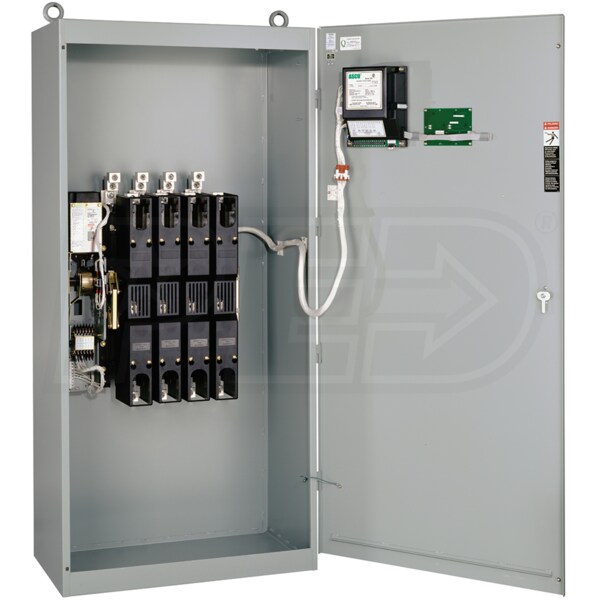

Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (277/480V 3-Phase)

Model:

071127

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (277/480V 3-Phase)
Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (277/480V 3-Phase)
Model: 071127
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

800

Load Mgmt.

Not Compatible

Voltage

277/480 Three-Phase

Enclosure

NEMA 3R

  • 800-Amp 285 Series By ASCO Automatic Transfer Switch (277/480V 3-Phase)
  • Compatible with Briggs & Stratton 3-phase generators
  • NEMA 3R Outdoor Rated Enclosure
  • Approved for indoor or outdoor installations
  • Standard Installation
  • Requires a sub-panel for overload protection
  • True Double-Throw Contacts w/ Inherent Mechanical Interlocking
  • Prevents connection of generator and utility source for maximum safety
  • Terminals For Connection of Neutral and Ground Conductors
  • Allows for easier installation
  • Convenient Control Interface w/ Symbols & Visual Indicators
  • Makes it easy to see transfer switch and power source status
  • Built-In Auxiliary Contacts For Switch Position Indication
  • Provides immediate indication when the switch positions changes
  • Additional Features:
  • Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
  • Listed to UL 1008 for optional standby systems
  • Please See Spec Sheet For Additional Compliance & Safety Standards
  • 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

071127
specs product image PID-77472
Overview
Consumer Warranty
3 Years
UPC
011675711276
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
UL Listed
Yes
