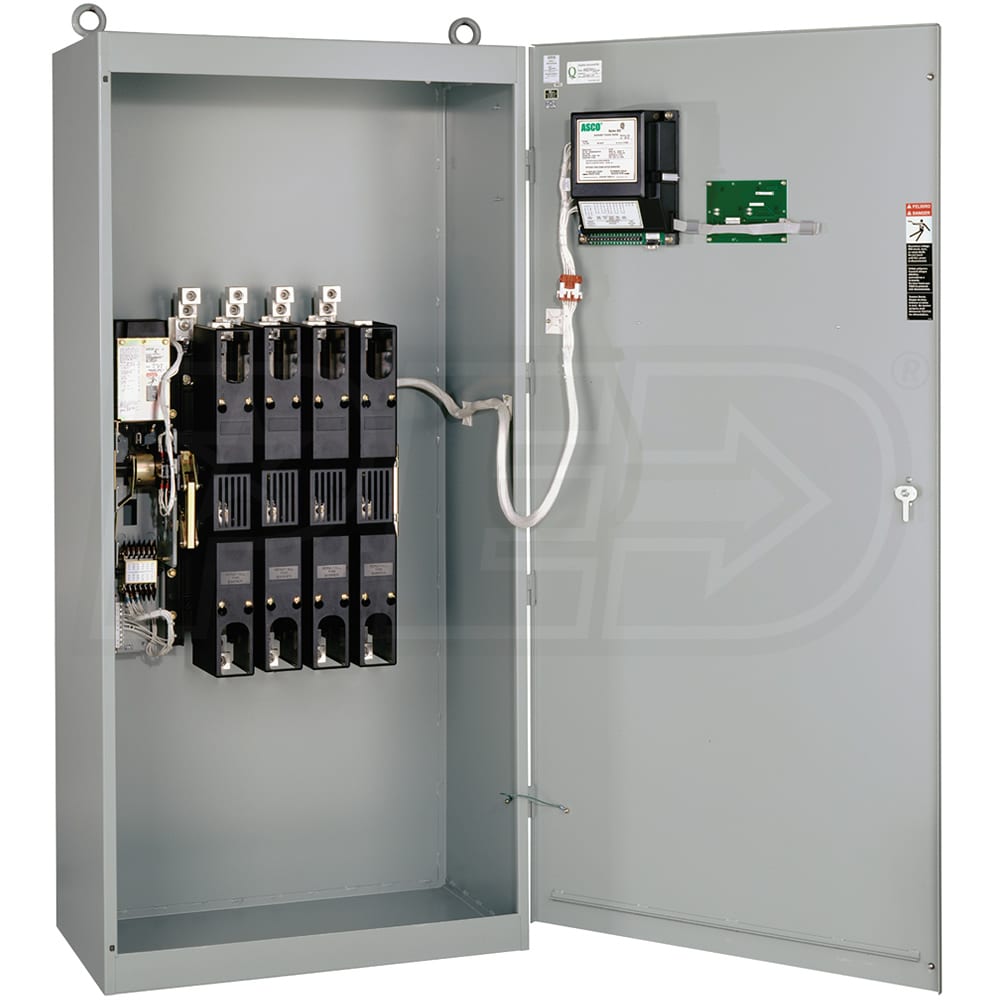

Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (120/240V Single-Phase)

Close
Briggs & Stratton Electric Generators and Accessories
Model: 071123
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$7,099.00

StoreShippingPriceShop

Free Freight$7,099.00
No Sales Tax*
(Except IL)
Buy

$7,499.00
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Type
Standard
Amp Rating
800 @ 240 Volts (Single Phase)
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
800-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V Single-Phase)
Compatible with Briggs & Stratton Liquid Cooled generators

NEMA 3R Outdoor Rated Enclosure
Approved for indoor or outdoor installations

Standard Installation
Requires a sub-panel for overload protection

True Double-Throw Contacts w/ Inherent Mechanical Interlocking
Prevents connection of generator and utility source for maximum safety

Terminals For Connection of Neutral and Ground Conductors
Allows for easier installation

Convenient Control Interface w/ Symbols & Visual Indicators
Makes it easy to see transfer switch and power source status

Built-In Auxiliary Contacts For Switch Position Indication
Provides immediate indication when the switch positions changes

Additional Features:
Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
Listed to UL 1008 for optional standby systems

Please See Spec Sheet For Additional Compliance & Safety Standards

3-Year Limited Warranty
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
800 @ 240 Volts (Single Phase) Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
Overview
Consumer Warranty
3 Years
UPC
011675711238
Model
071123
