Briggs & Stratton By ASCO Series 285 - 200-Amp Automatic Transfer Switch (120/240V 3-Phase)

Close
Briggs & Stratton Electric Generators and Accessories
Model: 071107
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Currently on Backorder Backordered
Estimated Availability
January 15, 2018
Notify Me When In-Stock
Remind Me
$1,599.00
I understand this product is on backorder with an estimated ship date of January 15, 2018
Have installers contact me for a quote.
+$0.00 local installers help?

  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Type
Standard
Amp Rating
200 @ 240 Volts (Three Phase)
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R

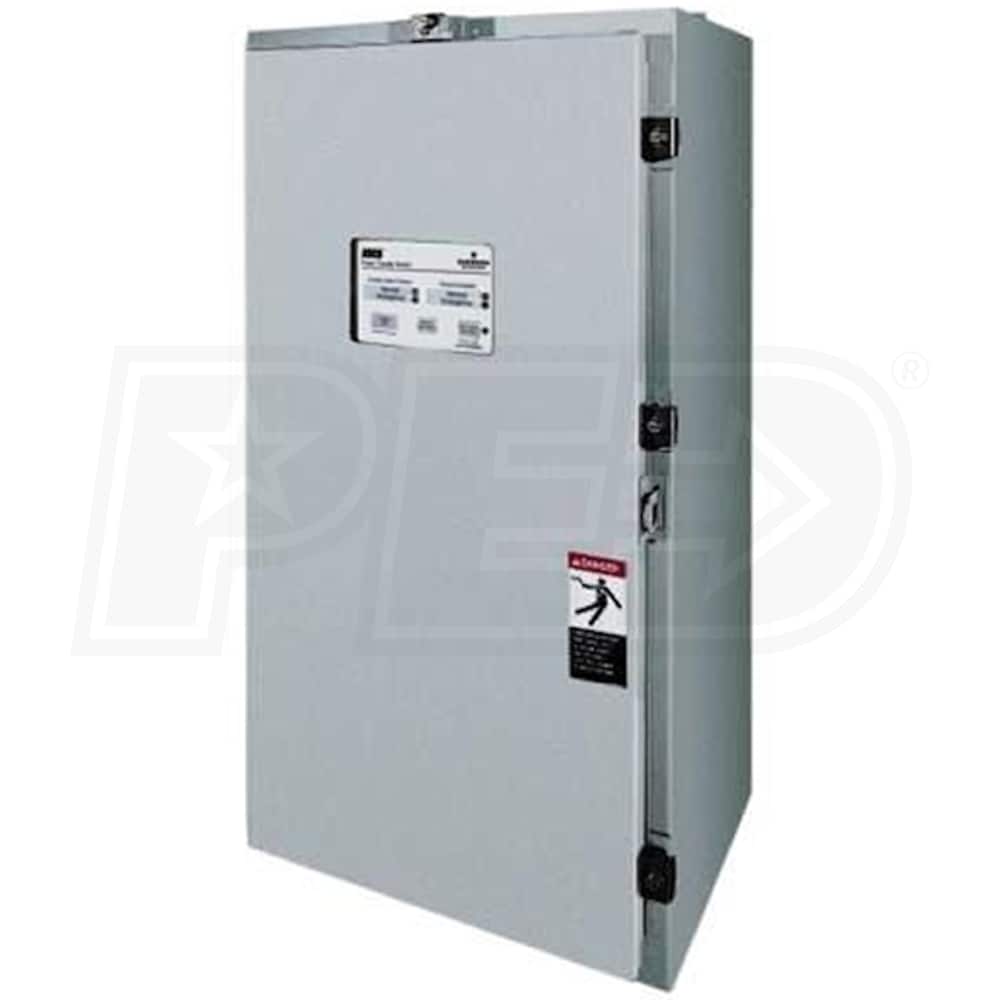

200-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V 3-Phase)
Compatible with Briggs & Stratton 3-phase generators

NEMA 3R Outdoor Rated Enclosure
Approved for indoor or outdoor installations

Standard Installation
Requires a sub-panel for overload protection

True Double-Throw Contacts w/ Inherent Mechanical Interlocking
Prevents connection of generator and utility source for maximum safety

Terminals For Connection of Neutral and Ground Conductors
Allows for easier installation

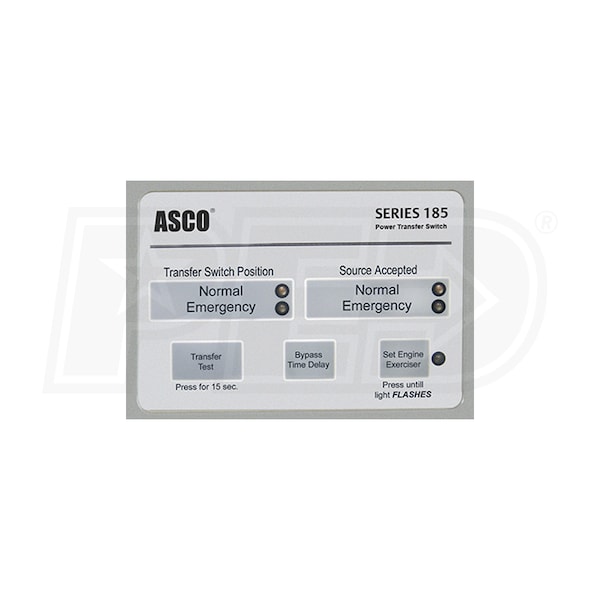

Convenient Control Interface w/ Symbols & Visual Indicators
Makes it easy to see transfer switch and power source status

Built-In Auxiliary Contacts For Switch Position Indication
Provides immediate indication when the switch positions changes

Additional Features:
Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
Listed to UL 1008 for optional standby systems

Please See Spec Sheet For Additional Compliance & Safety Standards

3-Year Limited Warranty
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
200 @ 240 Volts (Three Phase) Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Consumer Warranty
3 Years
UPC
011675711078
Model
071107
