Yamaha EF5200DE - EF5200DE - 4500 Watt Electric Start Portable Generator

Your Online Yamaha Portable and Standby Generator Superstore.

Yamaha EF5200DE - 4500 Watt Electric Start Portable Generator

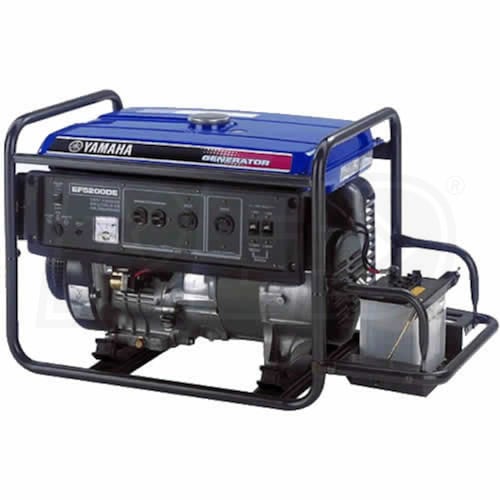

View Enlarged Image of the Yamaha EF5200DE

Yamaha Electric Generator and Generator Accessories
Model EF5200DE
Yamaha EF5200DE - 4500 Watt Electric Start Portable Generator

(2 Reviews)

Yamaha EF5200DE - 4500 Watt Electric Start Portable Generator

Share: Email This ProductShare on FacebookShare on Twitter
Product Discontinued Product Discontinued

No Sales Tax on All Yamaha Generators & Accessories
Free Shipping on every Yamaha EF5200DE
Safely Lower Your EF5200DE to the Ground
Yamaha EF5200DE - 4500 Watt Electric Start Portable Generator
Retail Price: $2,649.00
Click Here To Learn More About Our Factory Direct Savings Discount: -$264.00
Your Price: $2,385.00
Lift Gate Service +$0.00




Grade

Style
Run Watts
4,500
Rated Watts
Surge Watts
5,200
Starting Watts
Fuel
Engine
Need Help? Email Our Generator Experts.
5,200 Max Rated Watts
Generator can produce 5,200 watts for up to 20 minutes
4,500 rated watts for continuous operation over 20 minutes

Electric Start Yamaha Engine
Easily starts with a press of a button (recoil backup)
Battery not included; 12 volt 26Ah recommended

Combustion Chamber Design
Improves power output and reduces exhaust emmissions

Cast-Iron Sleeve
Rugged material extends engine life span

Brushless Alternator
Low maintenance and years of worry-free service

Fuel Gauge & Voltmeter
Easily read gas and voltage levels


Model
  Model Number:EF5200DE
 Manufacturer:Yamaha
 Made in USA:No
Engine
 Brand:Yamaha
 Starting System:12-Volt Button Start
 HP/CC:10 HP
 Consumer Engine Warranty:2 Years
 Commercial Engine Warranty:1 Year
 Engine RPM:3600 RPM
 Low Oil Alert:Yes
 Cast Iron Sleeve:Yes
Product Specs
 Voltage120/240 Single-Phase
 Frequency:60 Hertz
 Alternator:Brushless
 Auto Voltage Regulation:Yes
 Fuel TypeGasoline
 Rated Amps:19 Amps @ 240 Volts (Single Phase)
 Portability Kit:Sold Separately
 Tank Size:5.5 Gallons
 Run Time (50% Load):9.5 Hours
 Fuel Tank Material:Metal
 Fuel Gauge:Yes
 Decibel Rating @ 7m:73 db(A)
 Idle Control:Yes
 Hour Meter:No
 Voltage Meter:Yes
 Lifting Eye:No
 Battery:Not Included
Overview
 Weight:192 Lbs. (87.09 kilograms)
 Dimensions:35.2L x 20.5W x 20.1H
(89.41 x 52.07 x 51.05 cm)
 Consumer Warranty:2 Years
 Commercial Warranty:1 Year
Download Documents


Outlets
NEMA 5-20R (Wall-Type)
NEMA L14-20R

NEMA L5-30R
Need Help? Email Our Generator Experts.
Overall
Rating
5.0 5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(Based on 2 Reviews)
 Sort By
Write Review

July 21, 2010

Lowell Pemberton
Kokomo, IN

5 out of 55 out of 55 out of 55 out of 55 out of 5

Very Good Generator

I've had this generator for several years now. It handles powering the essential 110V circuits in my house along with the 220V well pump circuit.

I change the oil once a year and run it for a few minutes monthly. I would opt for the wheel kit which makes it easy to move around.

Last month it wouldn't start with the key so I checked it out using the wiring diagram and found a blown 10 amp fuse behind the front panel. I replaced the fuse and it started right up. This is an easy fix, just remove 8 screws and pull the front panel.

All in all, it's a great generator.

May 06, 2007

Collin Hamilton


5 out of 55 out of 55 out of 55 out of 55 out of 5

Yamaha EF5200DE - 4500 Watt Electric Start Portable Generator Review

love my gen . does all and then some butmy elec start is not working so the pull is really easy! still do not know how to get alternator/where??? batt is good?gen has yet to fail other than elec start AAA+
