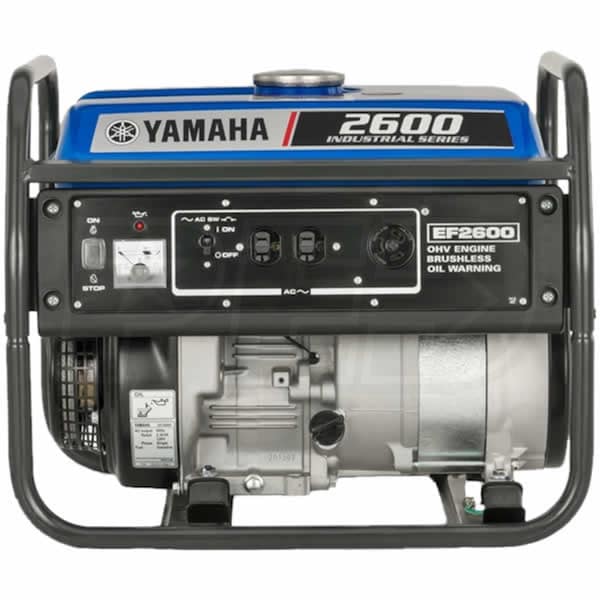

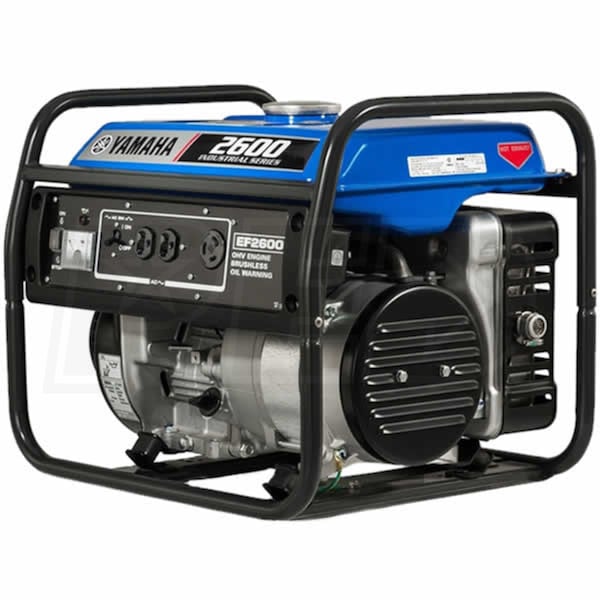

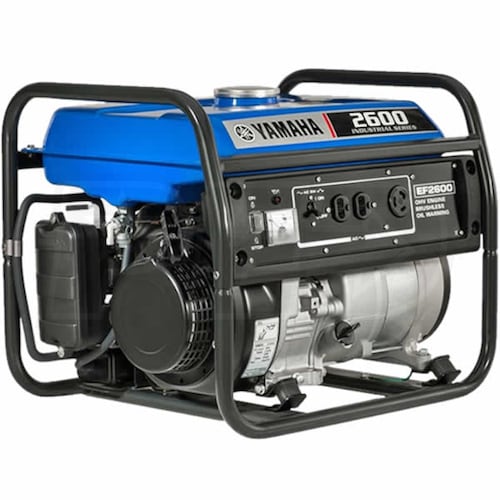

Yamaha EF2600 Portable Generator - EF2600 - 2300 Watt Portable Generator

Grade	Style
Run Watts 2,300 Rated Watts	Surge Watts 2,600 Starting Watts
Fuel	Engine

2,600 Max Rated Watts
•Generator can produce 2,600 watts for up to 20 minutes
•2,300 rated watts for continuous operation over 20 minutes

Contractor Tough
•Steel roll bars and metal gas tank

Lightweight (90 lbs.)
•Much lighter than comprable models of the same wattage

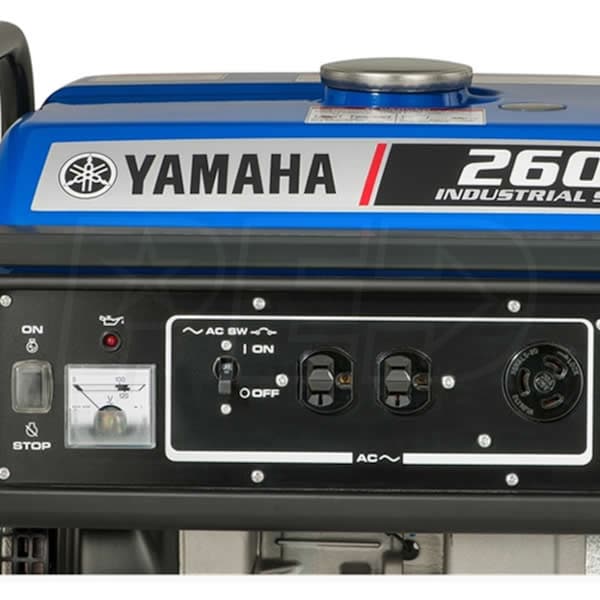

Fuel Gauge & Voltmeter
•Easily read gas and voltage levels

3.2 Gallon Gas Tank
•Generates 11 hours of continuous power @ half load

Model
	Model Number:	EF2600
	Manufacturer:	Yamaha
	Made in USA:	No
Engine
	Brand:	Yamaha
	Starting System:	Recoil Start
	HP/CC:	5.5 HP
	Consumer Engine Warranty:	2 Years
	Commercial Engine Warranty:	2 Years
	Engine RPM:	3600 RPM
	Low Oil Alert:	Yes
	Cast Iron Sleeve:	Yes
Product Specs
	Voltage	120 Single-Phase
	Frequency:	60 Hertz
	Alternator:	Brushless
	Auto Voltage Regulation:	Yes
	Fuel Type	Gasoline
	Rated Amps:	19 Amps @ 120 Volts (Single Phase)
	Portability Kit:	Sold Separately
	Tank Size:	3.2 Gallons
	Run Time (50% Load):	11 Hours
	Fuel Tank Material:	Metal
	Fuel Gauge:	Yes
	Decibel Rating @ 7m:	67 db(A)
	Idle Control:	No
	Hour Meter:	No
	Voltage Meter:	Yes
	Lifting Eye:	No
	Battery:	Not Included
Overview
	Weight:	90 Lbs. (40.82 kilograms)
	Dimensions:	20.1L x 16.3W x 16.7H (51.05 x 41.40 x 42.42 cm)
	Consumer Warranty:	2 Years
	Commercial Warranty:	2 Years

Download Documents

Owners Manual

Outlets

Overall
Rating

4.0

(Based on 1 Reviews)

Sort By

July 06, 2008

John Tucker
Jacksonville, FL

Yamaha EF2600 - 2300 Watt Portable Generator Review

I used this generator on a 15,000 mile trip. It powered my 34 foot 5th wheel camper with a few adjustments, such as turning off the 15,500BTU air conditioner while using the microwave.

The GFI receptical broke while I was in Alaska and I had a hard time finding another. The generator ran all night on 2.5 gallons of fuel. I used to have a unit with a smaller fuel tank, and it had to be refilled in the middle of the night. So, I think this unit is a good value.
