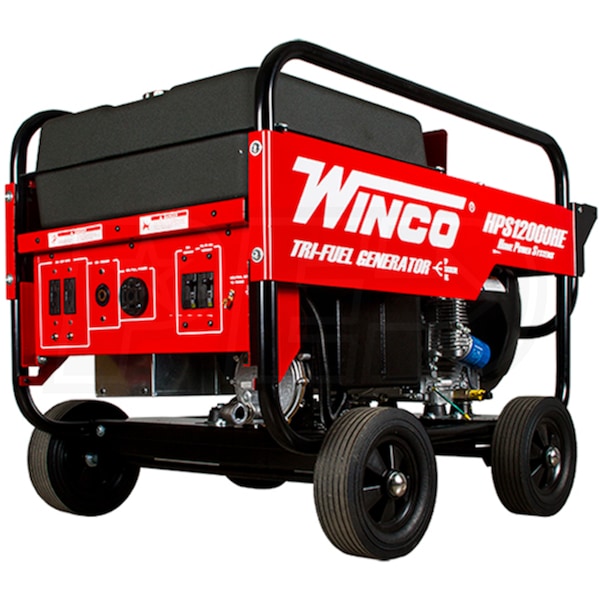

Winco 10,800 Watt Tri-Fuel Power System w/ Electric Start Honda Engine

Model:

HPS12000HE PKG

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Winco 10,800 Watt Tri-Fuel Power System w/ Electric Start Honda Engine
Winco 10,800 Watt Tri-Fuel Power System w/ Electric Start Honda Engine
Model: HPS12000HE PKG
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

10,800 Rated Watts

Surge Watts

12,000
Starting Watts

Fuel

LP/Natural Gas/Gasoline

Engine

Honda GX

  • Everything But The Electrician
  • Provides the ability to power your home right out of the box
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on LP gas, natural gas or gasoline
  • 688cc Electric Start Honda GX630 V-Twin Engine (Battery Not Incld.)
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start w/ battery rack and cables
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • 60-Amp Emergency Transfer Kit
  • Indoor transfer switch with interlocked breakers
  • Heavy-duty 12-foot power cord with 14-60P plug
  • NOTICE: TRI-FUEL STARTING
  • When using vapor fuel (LP or NG), Never use choke
  • It will prevent proper air/fuel mixture

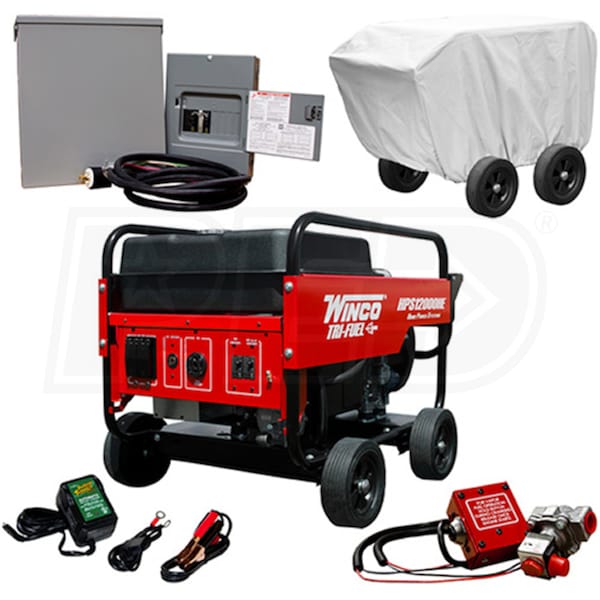

  • Also Includes:
  • Generator, Low Pressure Fuel Solenoid, 60A Power Transfer Kit
  • Canvas Cover, Battery Charger & 4-Wheel Dolly w/ Fold-Down Handle
  • Recommended Battery - Group U1/300CCA (Not Included)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-60R
HPS12000HE PKG
specs product image PID-11370
Overview
Assembly Required
Yes
Weight
435 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas/Gasoline
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-60R
1
