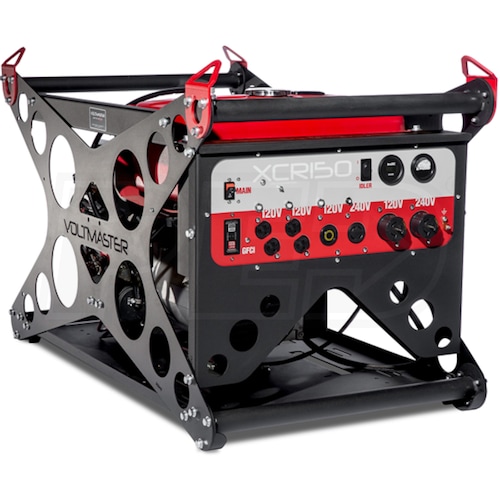

Voltmaster XCR150EV - 12,000 Watt Electric Start Professional Generator

Close
Voltmaster Electric Generators and AccessoriesModel: XCR150EV
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 4-7 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$5,248.00

StoreShippingPriceShop

Free Freight$5,248.00
No Sales Tax*
(Except IL)
Buy

$5,248.00
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade

Style
Run Watts
12,000
Rated Watts
Surge Watts
15,000
Starting Watts
Fuel
Engine
Vanguard
Voltmaster XCR Series Contractor/Rental Grade Generator
Designed specifically for contractors & jobsite applications

OSHA Compliant Total Ground Fault System
Provides total 120/240 VAC ground-fault protection on all recps

23 HP Vanguard Industrial-Grade V-Twin Engine w/ Electric Start
Quiet operation and greater fuel efficency on the job site
Includes battery rack & cables (Battery Sold Separately)

Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
Shuts the engine down if oil reaches an unsafe operating level

Idle Control & 7.25-Gallon Fuel Tank w/ Fuel Gauge
Allows for up to 8 hours of run time @ half load

Magnetic CB & Brush Alternator w/ All Copper Windings
Provides safer operation & clean power; <6% harmonic distortion

Voltmeter & Hour Meter
Allows you to easily monitor and maintain your generator

Heavy Duty Frame & Modular Design w/ Side Control Panel
Provides greater protection for the engine & components
Makes it easy to operate when truck mounted

***Not For Use w/ Transfer Switches or Interlock Kits***

1-Year Consumer/30-Day Commercial Warranty
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
23 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
15000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
50 @ 240 Volts (Single Phase) Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 5-50R
1
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
297 Pounds
Product Length
36.25 Inches
Product Width
23.5 Inches
Product Height
26 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Model
XCR150EV
Download Documents

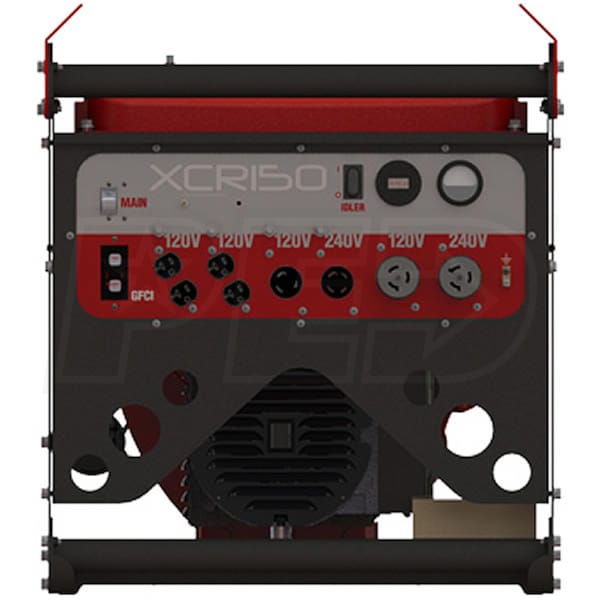

Outlets
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)

NEMA L5-30R
NEMA L14-30R

NEMA 5-50R
CS6369 (50-Amp Twistlock)
