The Reliance Controls 60-amp utility/30-amp (gfi) gen indoor transfer panel w/ meters is available for purchase today.

Read Reliance Controls XRC0603C reviews before checking out.


Get the best deal on your new Reliance Controls XRC0603C.

No coupon code required.

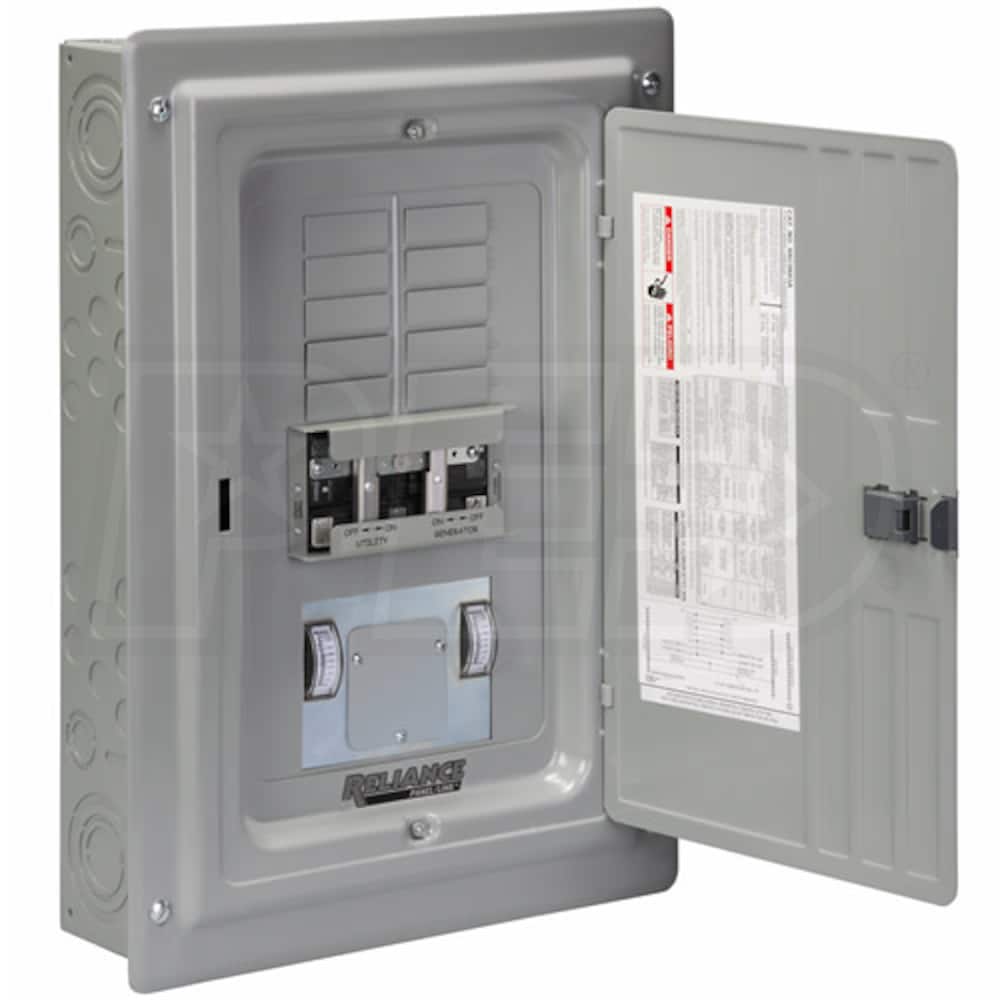

Reliance Controls 60-Amp Utility/30-Amp (GFI) Gen Indoor Transfer Panel w/ Meters

Close
Reliance Controls Electric Generators and AccessoriesModel: XRC0603C
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 3 In-Stock
Ships Monday, Dec 5th

Estimate Arrival
$299.99

StoreShippingPriceShop

In-Stock
$299.99
No Sales Tax*
(Except IL)
Buy

$299.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • 4
    Reviews
  • Articles
  • Shipping
  • Accessories
Designed For Use With GFI-Equipped Portable Generators
Exclusive third-pole for the neutral that switches sequentially

Easily Switch Between A Portable Generator & Utility Power
Prevents sending 240V current to a 120V circuit

Prevents A Ground Fault
Prevents the circuit breakers on the generator from tripping

Useful Applications
Portable generators w/ GFCI protected outlets
Bonded neutral generators
Installations requiring a separately-derived system

Plenty of Branch Spaces
10 standard spaces
Up to 18 spaces with the use of tandem breakers

Watt Meters
Monitor or balance generator load
Product Specs
Frequency
60 Hertz
Rated Watts
7500 Watts
Enclosure
NEMA 1R
Neutral Type
Bonded
ATS Poles
3 Poles
Max Utility Input
60 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
26 Pounds
Product Length
21 Inches
Product Width
14.38 Inches
Product Height
3.94 Inches
Consumer Warranty
1 Year
UPC
815181015923
Model
XRC0603C

*Ask Jared about the Reliance Controls XRC0603C. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  1 Question
Q: What brand of breakers will work in this panel?
by Joe Anderson from Texas on August 30, 2012

A: SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP


by Jared, Product Expert
Reliance Controls XRC0603C Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Pros
High Quality (1)
Price (1)
Features (1)
Cons
None to display.
4 Reviews  Sort by

John Sagl
E. Setauket, NY
Purchased from Electric Generators Direct
Purchased 3/30/10
REVIEWED
APR.
21
2010
5 out of 55 out of 55 out of 55 out of 55 out of 5
Easy To Install And Wire
This is the first time that I have used this control and found that it was easy to install and wire.

This project was a retrofit upgrade of an existing generator installation. The consolidation of transfer switch and circuit breaker panel eliminated the existing bulky transfer switch and sub panel.

Upon opening the Reliance control panel the copper buss was a surprise and certainally adds to the quality of the product.

I also selected the Reliance control due to the buss bar circuit... more
Was this review helpful?
60
Todd
Purchased from Electric Generators Direct
Purchased 2/19/13
Total Reviews
4 Reviews
Total Helpful Votes
20 Helpful Votes
REVIEWED
APR.
30
2013
4 out of 54 out of 54 out of 54 out of 54 out of 5
Generator Panel
I found this panel well designed and a good solution for emergency power situations. There were enough breakers to cover the essential circuits during a power outage. I chose the 60 amp utility because I wanted to be on the safe side with the total current draw when all the breakers are ON and you are using utility power. When on generator power I won't be using the entire panel all at the same time and using only the breakers that are needed.

I also wanted the watt meters so I can balance... more
Was this review helpful?
30
Don
Kingston, MA
Purchased from Electric Generators Direct
Purchased 10/3/13
Total Reviews
2 Reviews
REVIEWED
OCT.
25
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Reliance Transfer Switch
Has what I needed. A bit complicated to wire into main panel. Took master electrician a little over 5 hours to complete. Perhaps because I used 3, 20 amp tandem breakers and 5 15 amp tandem breakers plus 2 single pole breakers.

Gen Direct informed me i would need this X-series switch due to the fact of the Briggs & Stratton 8000 watt gen had "bonded grounding" in gen. Need this type. Never realized that. Reliance is good quality product.
Pros: Features, Price, High Quality
Don Recommends This Reliance Controls Product
Was this review helpful?
00
Robert Henery
Wooster, OH
Purchased from Electric Generators Direct
Purchased 2/22/10
Total Reviews
2 Reviews
REVIEWED
MAR.
15
2010
5 out of 55 out of 55 out of 55 out of 55 out of 5
Easy
Ordering was easy, I received it in 3 days.

Start up and installation was easy. The unit started on the 3rd pull the first time.

I have test-run it a couple times since, and it starts by the second pull.

I am pleased to find a unit made in the USA.
Was this review helpful?
04
