The Reliance Controls 100-amp utility/50-amp gen indoor transfer panel w/ wattmeters is available for purchase today.

Read Reliance Controls TRC1005C reviews before checking out.


Get the best deal on your new Reliance Controls TRC1005C.

No coupon code required.

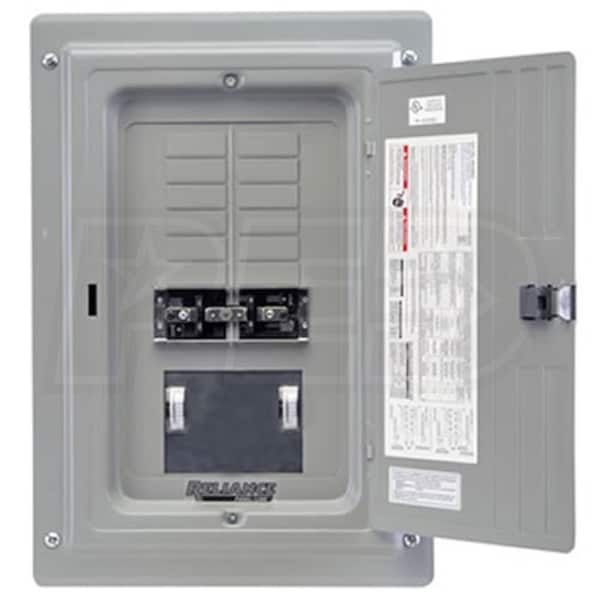

Reliance Controls 100-Amp Utility/50-Amp Gen Indoor Transfer Panel w/ Wattmeters

Close
Reliance Controls Electric Generators and AccessoriesModel: TRC1005C
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 1 In-Stock
Ships Friday, Dec 9th

Estimate Arrival
$249.99

StoreShippingPriceShop

In-Stock
$249.99
No Sales Tax*
(Except IL)
Buy

$249.99
No Sales Tax*
(Except IL)
Visit Site

$266.69
(as of 06:07 CST - Details)
Sales Tax in 26 states
Visit Site

$400.58
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 5
    Q&A
  • 4
    Reviews
  • Articles
  • Shipping
  • Accessories
Reliance Panel/Link®
Combines a circuit panel and a transfer switch together
Perfect for new construction and/or renovation
Built-in wattage meter helps you manage load

This transfer panel is designed for hardwired installation.
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
100 @ 240 Volts (Single Phase) Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
26 Pounds
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
UPC
851890000799
Model
TRC1005C

*Ask Jared about the Reliance Controls TRC1005C. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  5 Questions
Q: Can this panel accept slimline or tandem breakers?
If not do you have a panel that can accommodate 16 breakers? Thanks

by Rob Heagney from Pennsylvania on March 06, 2015

A: Thanks for your inquiry.

Yes the TRC and most of the Panel/Link series can accept tandem breakers. Reliance Controls specifies the TRC having a 12/20 space bus bar, 12 full size spaces (1”) and 8 of those spaces were meant to also accept the tandem breakers.



by Jared, Product Expert
Q: Will I have to have space for a 60 or 100 amp 2 pole breaker in the main service box?
by Mark Osborn from Nebraska on February 07, 2014

A: Yes. The Reliance Controls TRC1005C is designed to operate as a sub-panel. This transfer switch will require a 2-pole breaker in the main distribution panel in order to receive utility power. Keep in mind that which ever circuits are supported within this transfer switch will no longer be placed within the main service panel.
by Jared, Product Expert
Q: Ref: Generac Model 5735
We have a 200 AMP service and would like to use the 100 AMP manual transfer switch.
Does the 100 AMP switch work the same way as the Kit50-25SB?
Is the reason for the price difference the circuit breakers for the 100 AMP switch?

by Ken McDaniel from Louisiana on May 04, 2011

A: Yes, the TRC1005C operates the same as the Kit50-25SB except the Kit includes the breakers, power inlet box and power cord. All of these items would need to be purchased when selecting the TRC1005C.

by Jared, Product Expert
Q: What circuit breakers do I use for the branch circuits?
by Mike from Iowa on February 08, 2011

A: Reliance Controls transfer panels are UL listed for a number of interchangeable breakers (see label on the inside cover of the transfer panel). If the main panel has this type of breaker, relocate the selected branch circuit breakers to the transfer panel. If the breakers cannot be moved, other breakers of the same ampacity must be installed in the transfer panel.

THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
by Jared, Product Expert
Q: Where do I plug my generator into this Transfer switch?
by Ben Weston from Pennsylvania on January 31, 2011

A: A transfer switch/panel like this requires a power inlet box. The power inlet box is installed on the exterior of the home.

Power inlet boxes can be found here

Power Inlet Boxes!
by Jared, Product Expert
Reliance Controls TRC1005C Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Pros
Easy To Store (1)
Easy To Use (1)
Durable (1)
Cons
None to display.
4 Reviews  Sort by

Robert R.
Elbert, CO
Purchased from Electric Generators Direct
Purchased 10/19/16
Most Helpful Positive Review
REVIEWED
NOV.
11
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Panel
Owner liked panel very much.
Pros: Durable, Easy To Use, Easy To Store
Robert Recommends This Reliance Controls Product
Robert's Experience With Electric Generators Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"Good company to do business with."
 more
Was this review helpful?
00
Keith Davis
Palestine, TX
Purchased from Electric Generators Direct
Purchased 2/20/10
REVIEWED
MAR.
15
2010
5 out of 55 out of 55 out of 55 out of 55 out of 5
Reliance Controls 100-amp Utility/50-amp Gen Indoor Transfer Panel W/ Wattmeters Review
I purchased this transfer switch primarily for three reasons:

1. It had ample room for 12 breakers, or, in my case, two 220A breakers and eight 110A breakers.

2. It has the gauges in it to monitor the feed on both lines in order to ensure there is not an imbalance & subsequent overload when operating on the generator.

3. I searched the Internet for a long time and when I found this transfer switch it was at a very reasonable price!

Also another added bonus I found out but... more
Was this review helpful?
31
Jack
Purchased from Electric Generators Direct
Purchased 5/15/12
REVIEWED
JUN.
05
2012
4 out of 54 out of 54 out of 54 out of 54 out of 5
Neat And Clean
Over all I found the Siemens panel to be a good quality unit. I like the fact that it is all in one cabinet. The down side to this panel is it does not have a Neutral lug for the 50 amp Generator source. The neutral bar does not accept a #6 conductor which means you have to adapt something which degrades the UL listing. The second thing is in designing the layout of the interior of the cabinet the door/cover assembly is upside down. The hooks for an easy mounting of the cover are reversed which... more
Was this review helpful?
10
L. R.
Joppa, MD
Purchased from Electric Generators Direct
Purchased 6/7/10
Total Reviews
2 Reviews
REVIEWED
JUN.
29
2010
5 out of 55 out of 55 out of 55 out of 55 out of 5
No More Melted Ice Cream
We live in Harford County, Maryland in a zone noted for bad storms and power outages. Last year we got a Reliance TRC1005C 100A manual transfer panel after a storm to start our process for an emergency generator.

When the last storm came through in June 2010 our decision was made as we could wait no longer. After reading many reviews we settled on the HW7500E.

It is a dream to start with the electric starter. Less than three weeks after making the purchase another storm came... more
Was this review helpful?
00
