Reliance Controls PC3020 - 30-Amp (4-Prong 20-Foot) Generator Power Cord
Your Online Reliance Controls Portable and Standby Generator Superstore.
|
 |

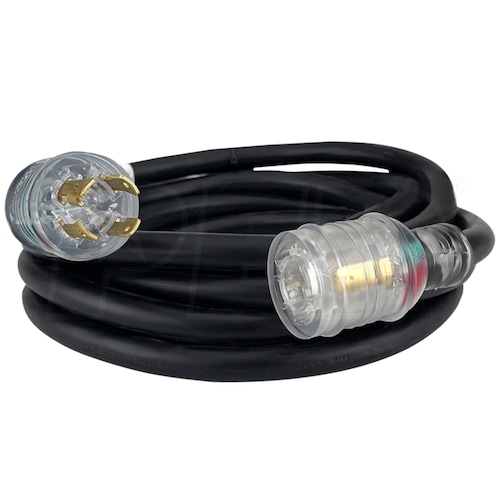

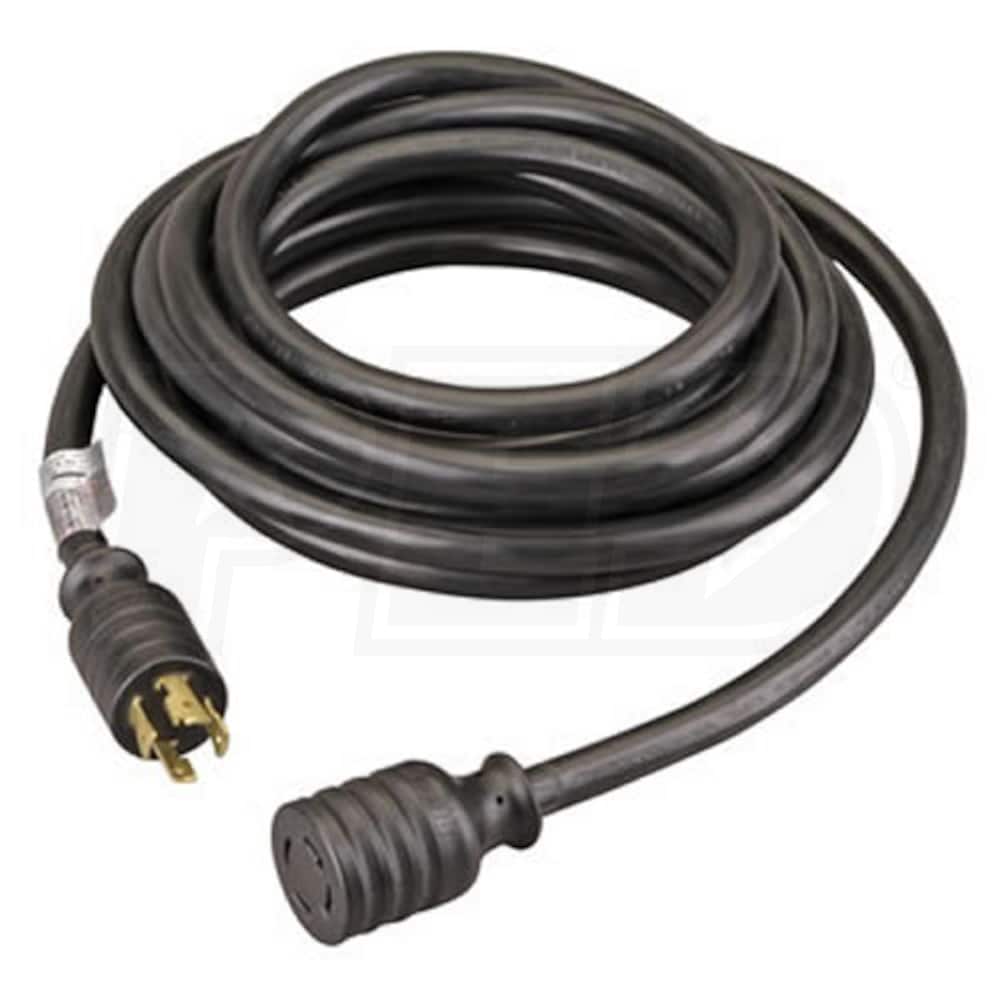

Reliance Controls 30-Amp (4-Prong 20-Foot) Generator Power Cord
|
|
|
Retail Price:
|
$99.99 |
 Discount:
|
-$20.00 |
|
Your Price:
|
$79.99 |
|
Cord Consolidation
• Connect a generator and transfer switch with a single cord
Flexible
• 20-foot rubber cord with male and female molded ends
Heavy-Duty
• UL listed for outdoor use
• Power cord holds up to 7,500 watts at 240 volts
|
| Model |
| |
Model Number: | PC3020 |
 | | | Manufacturer Name: | Reliance Controls | | | | Made in USA: | Yes | | Voltage | | | | Maximum Wattage: | 7,200 Watts | | | | Voltage: | 120/240 Single-Phase | | | | Frequency: | 60 Hertz | | | | Rated Amps: | 30 Amps | | Cord | | | | Cord Length: | 20 ft | | | | Wire Gauge: | Unknown | | | | UL Listed: | Yes | | Overview | | | | Weight: | 6.5 Lbs. (2.95 kilograms) | | | | Dimensions: | "L x "W x "H
(0.00 x 0.00 x 0.00 cm) | | | | Warranty: | 2 Years |
|
Average Rating: 5.0 of 5.0
|
|
|
 |
Written July 02, 2008 |
| How to Pick the Perfect Power Cord |
| By Jon Hoch, Founder (Bolingbrook, IL) |
If you're new to portable generators, the electrical equations may look as foreign as high school algebra.
Don't worry. You can put the math books and calculators away. Selecting a generator power cord is simple.
1. PICK THE RIGHT AMPS
Portable generators are measured by watts. Power cords are measured in amps.
Basically, the larger the amps, the more electricity the cord can handle.
For example, a 50-amp power cord is a lot thicker than a 20-amp power cord, allowing it to handle larger wattages.
You simply select a power cord that matches the MOST POWERFUL OUTLET on your generator.
If you have a 50-amp outlet, you'll need a 50-amp power cord. If you have a 20-amp outlet, you'll need a 20-amp cord.
2. PICK THE RIGHT SHAPE
The plugs and connectors are purposely designed in different shapes, helping to prevent an electrical overload.
If you have a 30-amp or 50-amp outlet, pay special attention to the shape.
For example, 30-amp plugs come in two varieties: 3-prong and 4-prong. The 3-prong plugs carry 120 volts only.
The 4-prong plugs carry 120/240 volts. These are becoming more popular because more home are starting to carry 240 volt outlets or appliances.
If you have a 50-amp outlet on your portable generator, you will most likely need a special power cord with two different ends.
The straight-blade male plug will fit into the generator. The twistlock female connector will fit into a transfer switch or power inlet box. |
|
|
|
|
|
