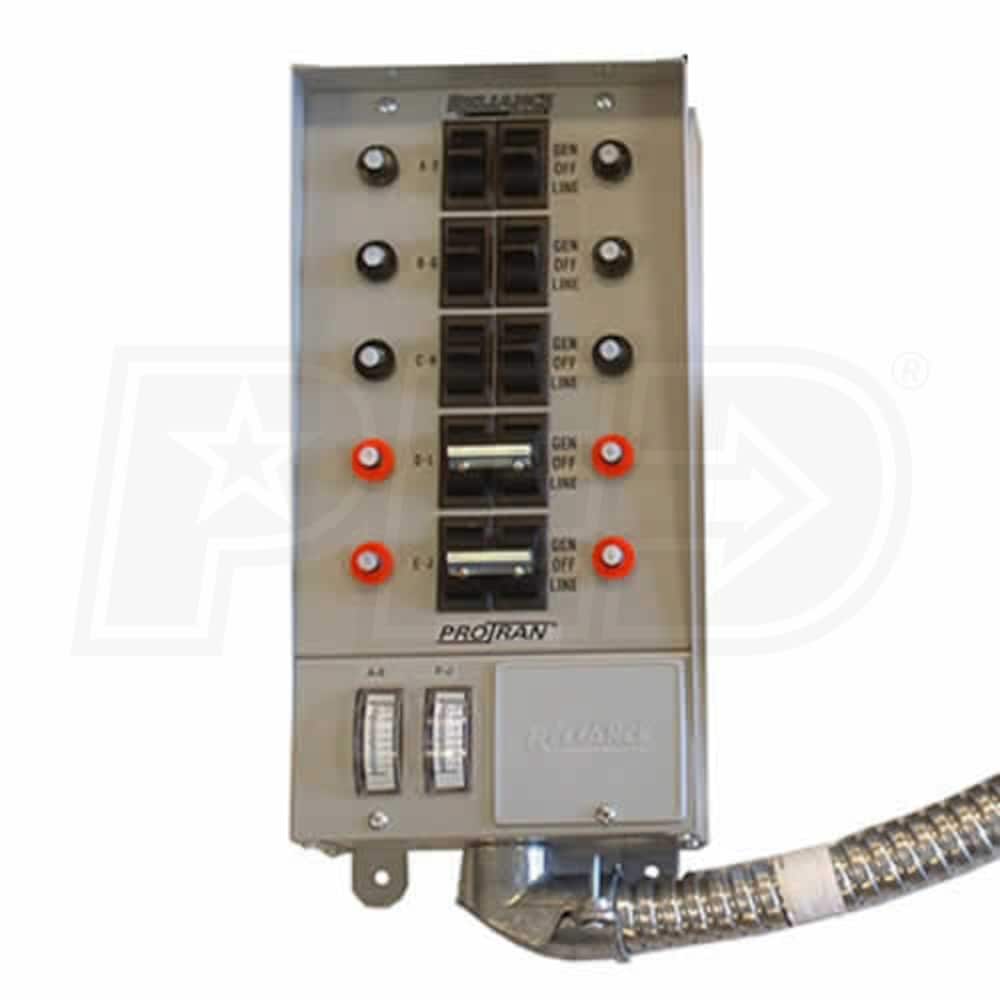

Reliance Controls 51410C - 50-Amp (10-Circuit) Indoor Transfer Switch
Your Online Reliance Controls Portable and Standby Generator Superstore.
|
 |
Reliance Controls 50-Amp (10-Circuit) Indoor Transfer Switch
|
|
|
Retail Price:
|
$399.99 |
 Discount:
|
-$50.00 |
|
Your Price:
|
$349.99 |
|
Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
Multiple Circuits
• Features six 15-amp circuits and four 20-amp circuits
Built-in Wattage Meter
• Track power input to ensure proper load balancing
10 Total Circuits
• Six 1-Pole (120 Volt) and Two 2-Pole (240 Volt)
• UL Listed
• Certified for use by Underwriter Laboratories
This transfer switch is designed for hardwired installation.
need 50-amp power inlet box (Model PB50) to connect power cord
|
| Model |
| |
Model Number: | 51410C |
 | | | Manufacturer Name: | Reliance Controls | | | | Made in USA: | Yes | | | | Maximum Wattage: | 12,500 Watts | | | | Voltage: | 120/240 Single-Phase | | | | Frequency: | 60 Hertz | | | | Rated Amps: | 100/50 Amps | | | | Max Generator Input: | 50 Amps | | | | Conduit Length: | 18 | | | | Conduit Diameter: | 1" | | | | Enclosure: | NEMA 1R | | | | Circuits: | 6 - 15A/120V
2 - 20A/240V
| | | | Circuit Breaker Protection: | Each Circuit | | Overview | | | | Circuits Breakers: | 10 | | | | UL Listed: | Yes | | | | Weight: | 13 Lbs. (5.90 kilograms) | | | | Dimensions: | 13.75"L x 7"W x 4.5"H
(34.93 x 17.78 x 11.43 cm) | | | | Warranty: | 1 Year |
|
Average Rating: 5.0 of 5.0
|
|
|
 |
Written August 07, 2005 |
| Reliance Controls 50-Amp (10-Circuit) Indoor Transfer Switch Review |
| By Allan Little |
| Professional Installation is a must. This is a great product if it's what you need. Please consult with a good electrician before you buy this or any product like it. |
 | |
Written July 04, 2008 |
| How to Pick the Perfect Manual Transfer Switch |
| By Jon Hoch, Founder (Bolingbrook, IL) |
A manual transfer switch is installed beside the main electrical panel, and then it's connected to the circuits you'll want running during a blackout.
When the power goes out, you simply crank up the generator and run a single power cord from it to a transfer switch.
Once the generator is running, you can choose which circuits to energize by simply flipping the switches.
AMPS
The best way to size a manual transfer switch is to size your power cord first. If you need a 30-amp cord, you need a 30-amp transfer switch.
CIRCUITS
Think about it. The more powerful your generator; the more circuits you can power. Most 5,000 watt generators can restore power to six circuits. You should get a 10-circuit switch if you have a larger generator.
WATTAGE METERS
Most manual transfer switches also include built-in wattage meters, which keep track of what's being powered. Without them, you can overload the system, damaging your generator and appliances.
MOUNTING KITS
You have two options when installing a manual transfer switch. The easiest and least expensive way is to install it on the wall like a painting. This option works well in garages and unfinished basements.
If style matters, you can buy a mounting kit to recess the manual transfer switch into the wall. You basically install it into the drywall between two studs. |
|
|
|
|
|
