Q: With regards to the 31410CRK with 10 circuit support, (6-15A/120v, 2-20A/240v), can the 2-20A/240v circuits be swapped out for additional 120v support? by Allen from New Jersey on January 24, 2012
A: Each individual side is 120V so with the removal of the silver connecting bar you can have 2 - 120V circuits instead of 1 - 240V circuit.
This process is mentioned in the owner's manual you receive with the switch.
Q: Jim, I have a portable Ridgid generator rated 8,000 watts running to 10,000 watts surge. Can you recommend a transfer switch kit? Many of the kits I saw are rated for 7,500 watts. I am pretty handy, could I install the kit without a licensed electrician? by Bill from New Jersey on January 21, 2012
A: The transfer switch size is based on the size outlet you have on your generator. Typically 8000 running watt generators have a 30A 4-Prong twist lock type outlet (L14-30R) as the largest cord connection.
All 30A connections are rated for a maximum wattage of 7500 watts; inlet boxes, transfer switches, power cords and receptacles.
So, even though your generator is rated so high, you are limited by the outlet size of 30A and you can only get 7500 watts out of your 30A outlet.
The additional wattage is available through the other outlets on the generator.
The only way to get more wattage is to go with a larger generator that offers a 50A outlet that can give you a maximum output of 12,500 watts (max for portable generators).
It is always recommended to have a certified electrician do your manual transfer switch installation. They are familiar with all your local city, county and state codes and it helps for insurance purposes.
Q: I want to put the outdoor plug approximately 25 feet from my panel. Can I still do that with this kit? by Dan from Rhode Island on September 01, 2011
A: The kit will work. However, your electrician will need to add some additional wiring between the power inlet box and transfer switch to make up for the extra length. by Jim, Product Expert
Q: Can the 31410CRK handle a 10.5kW surge wattage generator? My generator is 7K Running with a 10.5 peak. by Alan Darby from Mississippi on March 27, 2011
A: The maximum wattage on this switch is 7500 watts as it is rated at 30A. This is also true for the 30A outlet you have on your generator. (30A x 240V = 7200W) The reason manufacturers install this size outlet on your generator is because proper generator sizing should rated at 80% of the generators running capacity so when the larger loads do kick in the unit can handle the surge and still provide proper voltage.
When or if you hit the surge rating on the generator (10.5kW) your voltage output would be much lower then any sensitive electronics can handle which is why it is important to size the unit to 80%.
Q: is this panel NEMA 3 for mounting outdoors? by Jeff Edwards from California on February 26, 2011
A: The transfer switch in this kit is for indoor mounting only. (31310A) The kit comes with a power inlet box (mounted outside) so the cord can be plugged into it and generator running outside allowing the power inlet box to be wired to the transfer switch mounted indoors. This set up is the preferred installation method to help prevent generators from being used indoors and allow the controls inside for ease of use. by Jim, Product Expert
Q: If I need only 1 20 amp 240 circuit can I change the other one to make 2 20 amp circuits ? Can these circuit breakers be replaced? by Gary Ballou from New Hampshire on February 21, 2011
A: Yes, the attachment bar for the 240V circuit can be removed to allow operation of 2 - 120V circuits instead. The internal breakers cannot be switch out though.
Q: Can you run an 8000 watt generator with the model 31410crk transfer switch? by George Cornett from Arkansas on February 04, 2011
A: Yes, this switch is perfect for a 8000 watt generator. When sizing a generator it should be sized to 80% of the generator running capacity so when a large load kicks in the generator has enough flexibility to handle the load without sacrificing the voltage output. This helps keep proper voltage available when these loads kick in and prevents any problems with the equipment being powered. by Jim, Product Expert
Q: Hello. What are the main differences between the Q310A and the 31410CRK switches? by Raegen Carr from Florida on January 23, 2011
A: The "Q" Series Reliance Controls transfer switches have interchangeable breakers and their "Pro/Tran" Series do not.
Advantage of interchangeable breakers allows you to adapt the switch to your specific needs. by Jim, Product Expert
Overall Rating
5.0
(Based on 23 Reviews)
Sort By
Jim Baugher, Product Expert Electric Generators Direct
Jim's Recommendation

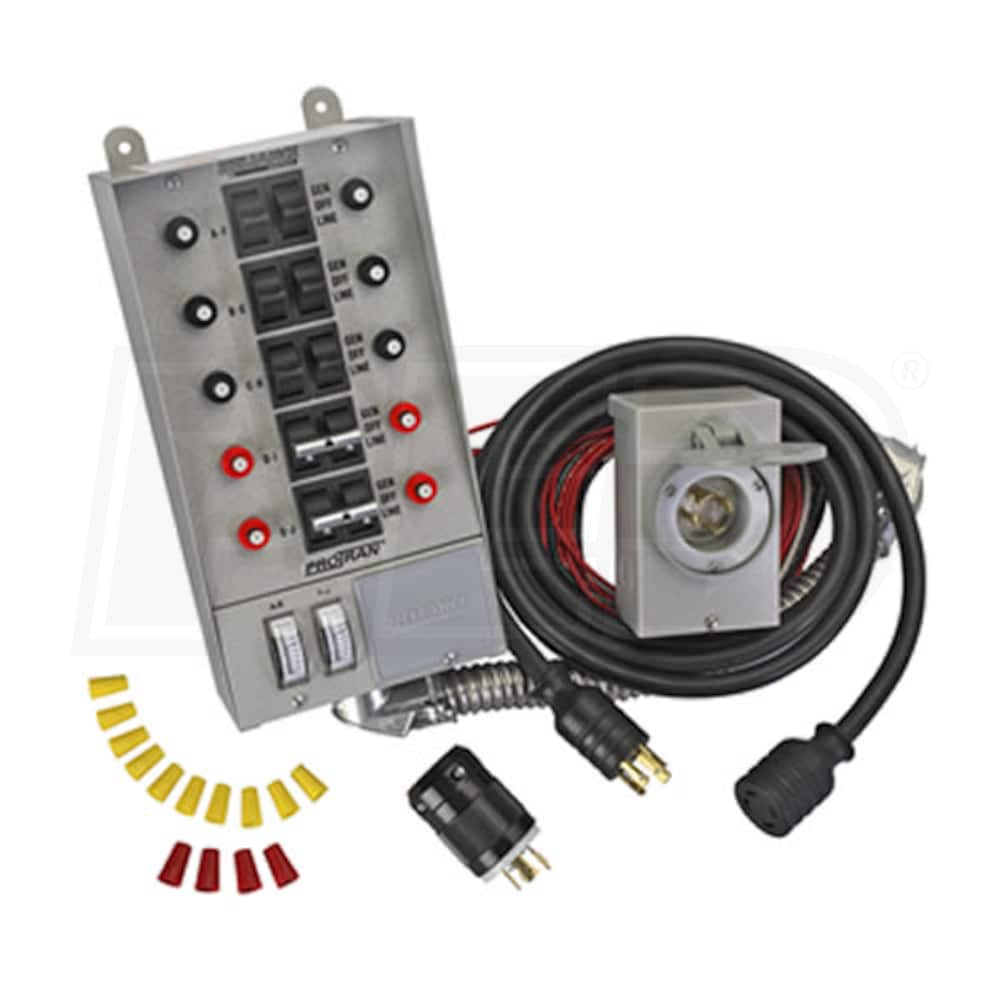

These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 18-inch flexible conduit whip attaches easily to the load center and all wires are clearly marked. Simply select the circuits needed in an emergency and connect them to the wire leads.
This model feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, resettable branch rated circuit breakers and non-defeatable double-throw switches. This model is intended for use with a generator up to 7500watts.
With this transfer kit you can run power to 10 total circuits; six 15-Amp (120 Volts) and two 20-Amp (240 Volts).
May 13, 2008
Mike Maz
Reliance Controls Power Transfer Kit for Portable Generators (10 Circuit) Review
Excellent kit! Everything you need is there except the conduit from the outside connection to the panel. Simple instalation. Up and running in no time. Bring on the next snowstorm!
April 03, 2007
Patrick Gelle
Reliance Controls Power Transfer Kit for Portable Generators (10 Circuit) Review
Just bought this unit. Very easy to install with the pre-wired box and easy to operate. Overall excellent value with the inlet and extension cord and the 10 circuits. Using this unit I can power my entire 4000 square foot house from my 7500 watt generator in a snap.
April 14, 2006
Ryan Bengston
Reliance Controls Power Transfer Kit for Portable Generators (10 Circuit) Review
very nice unit. I purchased this unit for south florida also.. comes with everything you need except for connection needed from this transfer panel to supplied power inlet box shown in this picture. this unit has 1/2'' or 3/4'' knockouts on sides and bottom for 1/2'' conduit. arrived within a week and i had it wired and operational in under two hours,all wires labled and comes with instructions for electrician to wire. also the brackets can be removed to make more single pole breakers. high quality!
April 03, 2012
Steve Sarasota, FL
First Portable Generator
After living through several hurricane close calls over the past 5 years in Florida, I finally decided to order a generator. I read through most of the reviews on EGD and settled on the B&S 30470. The generator was delivered in a few days as scheduled, along with the transfer switch kit.
Like most of the reviews it took about a half hour to get the wheels on, and I fired up the generator right away. Very glad we ordered the electric option. Had an electrician come to set up the transfer switch. Plugged in the generator for a trial run, and it powered everything that was connected. I was impressed how much we are able to run with the 7,000 watts.
Very happy with the entire process, including the several calls to customer service for a few follow up questions. They were great to deal with.
After living through several hurricane close calls over the past 5 years in Florida, I finally decided to order a generator. I read through most of the reviews on EGD and settled on the B&S 30470. The generator was delivered in a few days as scheduled, along with the transfer switch kit.
Like most of the reviews it took about a half hour to get the wheels on, and I fired up the generator right away. Very glad we ordered the electric option. Had an electrician come to set up the transfer switch. Plugged in the generator for a trial run, and it powered everything that w... more
February 11, 2012
Bobby Tappan, NY
This Works Great!
We had a 4 day black out around Halloween in the N.Y. area. Bought the Briggs & Stratton 30471,Reliance Control 31410CRK transfer kit, KF10 Flush mount,CK10 Hinge Cover. It was 3 months for all the parts to come in BUT Electric Generators Direct absolutely had the best price AND NOBODY had any of the parts in stock any where period! I had a electrician come & put the parts in & wow it all worked incredibly well. I had (as a test) every circuit we wired on & it ran like a gem. I am very happy the way this whole thing went. Happy customer & Electric Generators Direct is the real deal. My electrician was very neat & complete a real pro!
We had a 4 day black out around Halloween in the N.Y. area. Bought the Briggs & Stratton 30471,Reliance Control 31410CRK transfer kit, KF10 Flush mount,CK10 Hinge Cover. It was 3 months for all the parts to come in BUT Electric Generators Direct absolutely had the best price AND NOBODY had any of the parts in stock any where period! I had a electrician come & put the parts in & wow it all worked incredibly well. I had (as a test) every circuit we wired on & it ran like a gem. I am very happy the way this whole thing went. Happy customer & Electric Generators Direct is the r... more
December 27, 2011
John Millington, NJ
Ran For Over 4 Days Without A Hitch
After dealing with no power for five days after the hurricane this September, I decided never again and went online and bought this generator and a power transfer switch. When the freak snow storm hit at the end of October I was prepared and kept my family nice and warm watching tv and living like nothing happened. This puppy was able to power my boiler, water heater two freezers, a refrigerator, computers and tvs and anything i wanted to use with no issues. It was like I never lost power at all.
By the time we got power restored, this thing ran for 108 hours straight. When I finally disconnected it, I simply changed the oil gave it a look over and put it away. I've taken it out once just to run it so the seals keep lubricated. The transfer switch made life simple too, no extension cords running throughout the house, just a simple click of a switch and i use my existing outlets. This combo is a sure winner...
After dealing with no power for five days after the hurricane this September, I decided never again and went online and bought this generator and a power transfer switch. When the freak snow storm hit at the end of October I was prepared and kept my family nice and warm watching tv and living like nothing happened. This puppy was able to power my boiler, water heater two freezers, a refrigerator, computers and tvs and anything i wanted to use with no issues. It was like I never lost power at all.
By the time we got power restored, this thing ran for 108 hours straight. When I f... more
November 17, 2011
Jay Elkton, MD
Perfect Transfer Switch
As others have stated, the installation of this unit is very straightforward. If you have ever installed a light or changed a plug you can install this. In fact my wife was helping me install this unit when and after seeing me connect the first circuit she asked if she could try and then proceeded to take over and wire the rest of the unit!
While the actual wiring is very well documented (watch the videos), it did take me a few hours to complete my install. I wanted to make for a very neat installation in my finished garage and have a 40'+ run of 10/3 wire in conduit to my outside connection box.
Highly recommend this switch!
As others have stated, the installation of this unit is very straightforward. If you have ever installed a light or changed a plug you can install this. In fact my wife was helping me install this unit when and after seeing me connect the first circuit she asked if she could try and then proceeded to take over and wire the rest of the unit!
While the actual wiring is very well documented (watch the videos), it did take me a few hours to complete my install. I wanted to make for a very neat installation in my finished garage and have a 40'+ run of 10/3 wire in conduit to my ou... more
November 16, 2011
Jim Boston, MA
Disaster Recovery Planning
The 10 circuits are perfect for the 8000 Watt Generac Generator that I'll be using.
Reliance Controls, 31410CRK, is a very good transfer switch.
I particularly liked the wattage meter that shows you the load on each side of the switch.
You can and should load balance the watts and the meter shows you the load as your generator is running and as you continue to turn on different appliances.
I was amazed that I could run my furnace, sump pump, Fridge, 2 home offices with 2 computers each, and a plasma TV and several lights. I noticed that the microwave and toaster oven consume a big amount and it would be smart to run these one at a time so you don't overload one side of the switch.
I'm going to give the Generac 8000 watt 4 stars and not 5 stars for one reason only. They should have provided a trickle charger so you don't have to remember to charge the battery once a month. The batter does not charge when it runs...FYI..
The Generac is a good generator and does a nice job. I didn't see any issues as I worked on my computers.
Thanks for a smooth order process and quick shipping EGD! I would recommend to a friend.
The 10 circuits are perfect for the 8000 Watt Generac Generator that I'll be using.
Reliance Controls, 31410CRK, is a very good transfer switch.
I particularly liked the wattage meter that shows you the load on each side of the switch.
You can and should load balance the watts and the meter shows you the load as your generator is running and as you continue to turn on different appliances.
I was amazed that I could run my furnace, sump pump, Fridge, 2 home offices with 2 computers each, and a plasma TV and several lights. I noticed th... more
October 31, 2011
Mike Maione Hillsdale, NJ
The Finished Job!
I put this switch in a month ago & tested it out. I actually lost power when this freak October 29 noreaster hit and it worked with no problems. I was able to use all the circuits I wired to it and I could choose to turn off some as needed. I can configure the box for summer (air condition, pool, etc) or winter ( no air conditioner, pool) and use those circuits for other needed uses. I took a picture of both the panel and the transfer box (printed them both and placed by the panel) and labeled them so anyone can turn onoff any switch with confidence.
October 05, 2011
Gary Ludlow, MA
Transfer Lit 31410CRK
So for so good, this transfer kit comes with all you need except a connector if needed. EZ instructions and ez to read. I have it all set up now but still waiting for the generator that has been back ordered, I will let you know how all goes when I fire it all up. By the way the price on this kit is the best you will ever find. I am retired and had plenty of time to research prices and this place did it for me.
September 25, 2011
Tim Warrington, PA
Satisfied Customer
So far everything is good. Installed the transfer switch with no problems. I have done a good deal of electrical work so it was fairly simple to install. The generator is a little noisier than I expected but we will adjust.
I cannot say enough good things about R&L Carriers. I was unable to be home on the delivery date so I went to pick it up at their location. Unfortunately, there was some confusion on the arrival date. I received a call from a manager apologizing for "their" mistake and offered to make it a priority to have it delivered as soon as it arrived.
I told him that I would not be home and would pickup at the terminal. When I arrived at the terminal these people jumped through hoops to get my generator and loaded it on my truck. Along with apologizes for the delay. Great people. The dock worked would not even accept a tip.
Overall the whole purchase has been really good. Kudos!
So far everything is good. Installed the transfer switch with no problems. I have done a good deal of electrical work so it was fairly simple to install. The generator is a little noisier than I expected but we will adjust.
I cannot say enough good things about R&L Carriers. I was unable to be home on the delivery date so I went to pick it up at their location. Unfortunately, there was some confusion on the arrival date. I received a call from a manager apologizing for "their" mistake and offered to make it a priority to have it delivered as soon as it arrived. more
September 21, 2011
Tom Ossining, NY
Ready For Next Time!
This kit is a must-have for installing any portable generator the right way. I only had to add the 10-3 wire from the inlet plug to the switch. The product is of high quality. Installation was very straight forward with all the wires pre-labeled. Ordering was easy and I received several status e-mails. Electric Generators Direct shipped my order quickly.
September 05, 2011
Paul Oregon, OH
I Did It!
I know nothing about electricity. But, i watched the how to video, followed it step by step and BAM up and running in about 3 hours. My wife was shocked. I have a 8500 titan generator and can run everything I need with no problem. I am an over the road trucker and now I am confident my wife can handle a power outage when I am away from home. I am very satisfied with this power transfer kit......
April 11, 2011
Bernie Columbus, OH
Medical Backup
Generator was bought locally. The control was purchased from your firm and installed by a electrician. I am a lung cancer patient and on oxygen 247.thanks for the fast shipping. The electrician said the control kit was excellent.and easy to install.
March 22, 2011
Tracy Grafton, MA
More Bang For The Buck
I tend to be very skeptical about making online purchases. I chose to research online but purchased via the phone. I had plenty of questions for the customer service person I who took my order. She was very patient with me and knowledgeable. When I asked questions she could not answer she investigated and called me back with the answers.
Delivery was timely. All of my accessories shipped separate from the generator and arrived very quickly. The initial shipping date for the generator was also very fast however, it was to the trucking company not my home. The delivery to my home took another couple of days, still the total time was minimal but the confusion caused me to waste an extra day waiting at home for the delivery. On delivery day the generator was wheeled right into my garage for me.
The minimal assembly of the generator was a snap and took no time at all. The electrician found the transfer box easy to work with and was able to install it without any problems. The flexibility of the extra circuits was well worth it. I initially looked at the 6 circuit box and was having a difficult time choosing the most important breakers to back up. With the 10 circuits I was able to back up all of the most important breakers as well as a few that would allow for some comfort items like extra lighting for safety, internet and TV.
The Honeywell generator I chose was comperable in price to other 5000W generators but had the power output closer to the 7000W generators. I must admit that do fear that it sounds to good to be true, but only time will tell.
To test my system for the first time I switched off the main breaker then had my 8 year old son move the generator from it's storage location in the garage outside, start it with the electric start, plug the 30 amp cord into the outlet in the garage, and switch the transfer box breakers. He was able to do everything with minimal input from his two sisters, it was that easy! We then turned on everything that we could possibly turn on in the house. The generator never even flinched, with everything on it was running just under 1/2 of it's capability. My 12 year old daughter later started the generator using the pull start. This was not as easy a task but she was confident she could get it done if needed.
So far I am very pleased with our purchases. I am confident we would suffer minimal inconveniences if we lost power for a prolonged period, but hope to never have to find out. I plan on using the generator for several projects in the near future and am anticipating that it will perform just as well.
With this combination of products, I was able to get much more flexibility and power for a minimal increase in cost. The system is so easy to use that an 8 year old can get the power up and running in less than 10 minutes. I'm now much more relaxed when I'm at work and my family is home during bad weather.
I tend to be very skeptical about making online purchases. I chose to research online but purchased via the phone. I had plenty of questions for the customer service person I who took my order. She was very patient with me and knowledgeable. When I asked questions she could not answer she investigated and called me back with the answers.
Delivery was timely. All of my accessories shipped separate from the generator and arrived very quickly. The initial shipping date for the generator was also very fast however, it was to the trucking company not my home. The delivery to... more
February 22, 2011
Jim Tolland, CT
Perfect
Both products are perfect. The generator started after 2 pulls. Tested the connections and worked great. The switch kit was easy to install if you're a little handy.
I was anxious to use it a couple of times this season but fortunately we didn't lose power.
I would recommend both the company and the products.
December 18, 2010
Bill Alton Bay, NH
New Generator
Received Reliance transfer switch in good condition, also Briggs & Stratton generator arrived in good shape no damage.
Hats off to R & L Carriers who delivered the generator the driver put it right in my garage I didn't have to handle it at all, took just about 30 minutes to un-box and assemble, put in oil & gas and away it went.
Transfer switch was easy to install instructions easy to follow had no problems at all. Very satisfied with purchase and dealing with EDG.
August 27, 2010
Frank North Woodmere, NY
Everything to do the job properly
I had been thinking of back-feeding the panel but decided to do it right. This system gave me everything to do the job properly.
The hardest part of the installation was to decide which circuits to use and to distribute the load. The switch gave me ten 120 volt circuits to play with, which was more than enough to cover most of my home.
I decided not to include the electric stove and ovens in the kitchen as they would have tied up too many circuits. I did include the microwave, toaster oven and coffee pot so I really won't be roughing it!
Installation was not difficult for anyone who can replace an outlet or light switch. The only thing I had to purchase was some 10-3 building wire to go from the inlet box to the switch.
Instructions were clear and easy to follow. The system worked perfectly when I tested it for over an hour with my 6500/7000 watt generator.
I didn't even have to re-set the clocks in the house when switching from line to generator and back!
EGD RESPONDS: Please check your local code and insurance; some communities require installation be performed, or certified, by a licensed electrician.
I had been thinking of back-feeding the panel but decided to do it right. This system gave me everything to do the job properly.
The hardest part of the installation was to decide which circuits to use and to distribute the load. The switch gave me ten 120 volt circuits to play with, which was more than enough to cover most of my home.
I decided not to include the electric stove and ovens in the kitchen as they would have tied up too many circuits. I did include the microwave, toaster oven and coffee pot so I really won't be roughing it!
This is a nice product with quality components. Installation was fairly easy. I had one circuit that would not transfer to generator power and when I called Reliance customer support, they quickly sent me a new circuit breaker - very good service!
When I took off the panel to install the new breaker, I discover a disconnected spade connector so it was never a serious problem.
My only minor disappointment was that you need to cut off (destroy) the L14-30 plug in order to install the supplied L14-20 plug. I was hoping to have the option of switching between them as needed.
February 15, 2010
James Herlinger Moonroeville, PA
Two Thumbs Up
The transfer switch arrived in two days as scheduled. The switch is very heavy duty and well constructed.
One of the 15 amp circuit breakers was cracked where it came through the panel but was still OK to install. One call to Reliance Controls and a replacement breaker is on its way.
The panel took a skilled electrician about 6 hours to install. This included routing 60 foot of 10-3 wire to the outside panel connector.
My 5000 watt Husky generator with the 10 circuit transfer switch powers all my critical circuits and almost all the rest of the house.
Two thumbs up- it's a very good heavy duty switch. I am an electrical engineer and I highly recommend this, and Electric Generators Direct, for an economical manual transfer switch solution.
The transfer switch arrived in two days as scheduled. The switch is very heavy duty and well constructed.
One of the 15 amp circuit breakers was cracked where it came through the panel but was still OK to install. One call to Reliance Controls and a replacement breaker is on its way.
The panel took a skilled electrician about 6 hours to install. This included routing 60 foot of 10-3 wire to the outside panel connector.
My 5000 watt Husky generator with the 10 circuit transfer switch powers all my critical circuits and almost all the rest of the ho... more
December 09, 2009
Jim Moore Louisville, KY
Best bang for the buck in emergencies
I purchased this generator for emergency residential use. I connect it through a 30 amp 10 circuit Reliance manual transfer switch.
The generator powers almost all of my 3000 sq. ft. house except for the AC, ovens and dryer. I used it once for 10 straight days and it ran flawlessly.
Typically I would fill the gas tank up in the morning when I woke up and at night before we went to sleep, so I probably averaged 12 hour actual run times.
I have recommended this combination of transfer switch and generator to many others as it is hard to beat the functionality for the money- which is roughly $2,000 installed (generator, transfer switch and electrician).
I purchased this generator for emergency residential use. I connect it through a 30 amp 10 circuit Reliance manual transfer switch.
The generator powers almost all of my 3000 sq. ft. house except for the AC, ovens and dryer. I used it once for 10 straight days and it ran flawlessly.
Typically I would fill the gas tank up in the morning when I woke up and at night before we went to sleep, so I probably averaged 12 hour actual run times.
I have recommended this combination of transfer switch and generator to many others as it is hard to beat the... more
November 24, 2008
Michael Bruss Lenexa, KS
Nice Quality Transfer Switch
I was looking for a reasonably priced transfer switch to go along with the generator we recently purchased.
Electric Generators Direct shipped the transfer switch quickly and I was impressed with the quality of the switch and the components when they arrived.
I installed this switch to the breaker panel in about an hour and a half and found the instructions to be very straight forward. This was a very easy install, and I have not worked on a main panel before (even though I am very handy).
It took me longer to run the 10-3 wire to the outlet by my back porch than it did to install this transfer switch.
I am a very happy with my purchase.
I was looking for a reasonably priced transfer switch to go along with the generator we recently purchased.
Electric Generators Direct shipped the transfer switch quickly and I was impressed with the quality of the switch and the components when they arrived.
I installed this switch to the breaker panel in about an hour and a half and found the instructions to be very straight forward. This was a very easy install, and I have not worked on a main panel before (even though I am very handy).
It took me longer to run the 10-3 wire to the outlet by ... more
