Reliance Controls 20216AK - 20-Amp (6-Circuit) Power Transfer Kit w/ 25 Foot Cord
Your Online Reliance Controls Portable and Standby Generator Superstore.
|
 |
Reliance Controls 20-Amp (6-Circuit) Power Transfer Kit w/ 25 Foot Cord
|
|
|
Retail Price:
|
$300.00 |
 Discount:
|
-$35.00 |
|
Your Price:
|
$265.00 |
|
Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
Easy Connection
• Plug generator cord directly into transfer switch
Built-in Wattage Meter
• Track power input to ensure proper load balancing

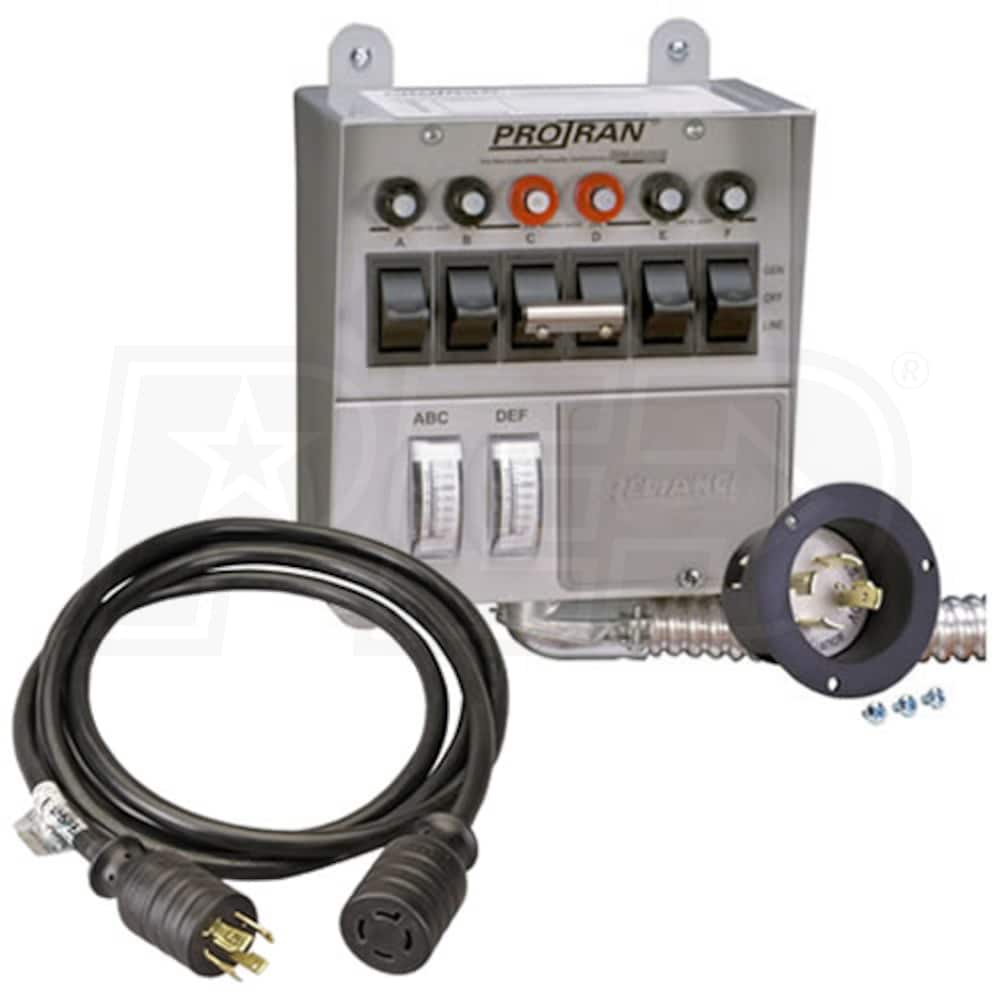

Kit Includes
• 20-Amp Manual Transfer Switch w/ power inlet
• 20-Amp (25 foot) Power Cord
UL Listed
• Certified for use by Underwriter Laboratories
|
| Model |
| |
Model Number: | 20216AK |
 | | | Manufacturer Name: | Reliance Controls | | | | Made in USA: | Yes | | | | Maximum Wattage: | 5,000 Watts | | | | Voltage: | 120/240 Single-Phase | | | | Frequency: | 60 Hertz | | | | Rated Amps: | 40/20 Amps | | | | Max Generator Input: | 20 Amps | | | | Cord Length: | 25 ft | | | | Wire Gauge: | 12 Gauge | | | | Conduit Length: | 18 | | | | Conduit Diameter: | 3/4" | | | | Enclosure: | NEMA 1R | | | | Circuits: | 4 - 15A/120V
1 - 20A/240V
| | | | Circuit Breaker Protection: | Each Circuit | | | | Circuits Breakers: | 6 | | | | UL Listed: | Yes | | Overview | | | | Weight: | 20 Lbs. (9.07 kilograms) | | | | Dimensions: | 7.5"L x 7"W x 4"H
(19.05 x 17.78 x 10.16 cm) | | | | Warranty: | 2 Years |
|
Average Rating: 5.0 of 5.0
|
|
|
 |
Written July 03, 2008 |
| How to Pick the Perfect Power Transfer System |
| By Jon Hoch, Founder (Bolingbrook, IL) |
NEVER backfeed the electricity into the house. If done incorrectly, you can electrocute utility workers repairing downed power lines.
For safety's sake, we strongly recommends hiring a licensed electrician to install a power transfer system (starting at $265) to redistribute power from the generator to the circuit panel.
A power transfer system basically contains a manual transfer switch, a power inlet box and a power cord.
The first step in selecting a power transfer system is determing your installation.
GARAGE INSTALLATION
If your main electric panel is located in your garage, congratulations. This is the easiest and least expensive way to install a power transfer system.
Your electrician simply connects a manual transfer switch to your main electrical panel. You don't need a power inlet box box since you can run a power cord into the garage.
Always run your generator outside of the garage to prevent carbon monoxide poisioning. You'll need at least a 25-foot power cord to give you ample distance.
BASEMENT INSTALLATION
If your main panel is located in the basement, you have two options. You can run a power cord through an open basement window.
A better option, however, is to mount a power inlet box on the outside of your house near your electrical panel. The power inlet box is then hardwired directly to your manual transfer switch.
When the power goes out, you simply plug one end of a power cord into the generator. The other end connects to the power inlet box. Flip a few switches, and your running on backup power.
A typical transfer switch installation will take about 3-4 hours and cost around $200-$300. But it's an investment that will be fully appreciated the next time the power goes out. |
|
|
|
|
|
