The Powermate px series 5000 watt portable generator w/ subaru engine is available for purchase today.

Read Powermate PM0435005 reviews before checking out.


Get the best deal on your new Powermate PM0435005.

No coupon code required.

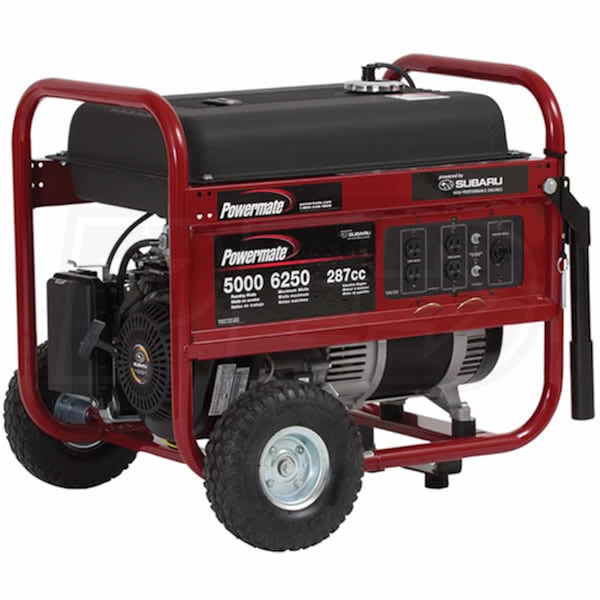

Powermate Px Series 5000 Watt Portable Generator w/ Subaru Engine

(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
1 Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • 1
    Q&A
  • 1
    Reviews
  • Articles
  • Shipping
  • Accessories

Grade

Style
Run Watts
5,000
Rated Watts
Surge Watts
6,250
Starting Watts
Fuel
Engine
Need Help? Call Our Generator Experts.
287cc Subaru EX30 Engine
Longer life, easier maintenance, less noise & fuel efficient
Less moving parts for greater reliability & life
Quieter operation and reduced emissions helps the environment

Low Oil Shutdown
Shuts the engine off when low oil level is detected

Long Life Alternator w/ Auto Voltage Regulation (AVR)
Protects appliances & equipment from harmful voltage swings

Circuit Breaker Protection
Helps prevent overload to generator

6 Gallon Fuel Tank
Provides up to 11.4 hours of run time @ half load

Mobility Kit w/ Folding Handles & 10" Wheels
Makes moving and storing this generator an easy task

Full Tubular Frame
Provides added protection during use and transportation

Also Includes:
25' - 20A Generator Cord & 1 Qt. Engine Oil
Manufactured In Kearney, NE (Foreign & Domestic Parts)

3-Year Warranty


Model
  Model Number:PM0435005
 Manufacturer:Powermate
 Made in USA:Yes
Engine
 Brand:Robin Subaru
 Starting System:Recoil Start
 HP/CC:287 cc
 Consumer Engine Warranty:3 Years
 Commercial Engine Warranty:Not Available
 Engine RPM:3600 RPM
 Low Oil Alert/Shutdown:Yes
 Cast Iron Sleeve:Yes
Product Specs
 Voltage120/240 Single-Phase
 Frequency:60 Hertz
 Alternator:Brush
 Auto Voltage Regulation:Yes
 Fuel TypeGasoline
 Rated Amps:21 Amps @ 240 Volts (Single Phase)
 Portability Kit:Pneumatic Wheels
 Tank Size:6 Gallons
 Run Time (50% Load):11.4 Hours
 Fuel Tank Material:Plastic
 Fuel Gauge:No
 Decibel Rating @ 7m:72.4 db(A)
 Hour Meter:No
 Lifting Eye:No
 Battery:Not Applicable
Overview
 Assembly Required:Yes
 Weight:162 Lbs. (73.48 kilograms)
 Dimensions:29"L x 21"W x 25"H
(73.66 x 53.34 x 63.50 cm)
 Consumer Warranty:3 Years
 Commercial Warranty:Not Available


Outlets
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)

NEMA L14-20R
Need Help? Call Our Generator Experts.
View Accessories For This Product
Read Reviews
BillMeLater PayPal
How To Library

*Ask Mike about this item. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field
  1 Question
Q: Jim, I recently purchased this house with a Transfer switch for the emergency generator rated at 5000W. Can I use a higher rated portable Generator? Most 5000kw show a surge of up to 6000 on some. Would any surge above 5000 trip the breaker at the transfer switch? I do want bare minimum to get by in case of power outage. Its wired for the well pump, refrigerator, one kitchen plug in, one outlet for freezer and one outlet for bedroom. I have found some good buys on 5500W Gens, but this may be too much for my transfer switch?
by Mike from Georgia on January 05, 2013

A: This will depend on the amperage rating of the transfer switch.

If you have a 30A rated transfer switch you can go up to 7500 watts.

If you have a 20A rated transfer switch you can go up to 4800 watts.

(Ohms Law - Amps x Volts = Watts)

The size of the generator really does not matter due to Ohms Law. Most generators rated from 5000 up to 8000 watts have a 30A outlet as their largest outlet to connect to a transfer switch. This allows a maximum wattage capacity output of 7500 watts.

The rule of thumb when sizing a generator is to size it to 80% of its running capacity so the unit has the flexibility to handle starting loads with ease. If a generator has to jump into its surge capacity the output voltage will drop 30% due to the strain on the alternator to produce this starting current. This is why the rule of thumb is based on the running load and not the starting load.

Anything connected to the generator that is sensitive electronics can be damaged if the generator goes into its surge load. A surge load is typically used for motor load starting such as a well pump, refrigerator compressor motor or sump pump.

by Mike, Product Expert
Powermate PM0435005 Reviews & Ratings
Write Review
1 Review  Sort by

Jack
Kings Park, NY
Purchased from Electric Generators Direct
Purchased 11/9/12
REVIEWED
DEC.
03
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
No Problems
I received the generator from the freight company with no damage. The unit required installation of the wheels and handles, and that was fairly easy. It has two handles, like a wheelbarrow, not one as pictured. Once I put the supplied oil and some gas in, the generator started on the first pull.
Now I just need to wait for the next power failure to see how well it works for me.
Mike, the Portable Generator Expert
Product Expert
Jack,
If the generator is going to sit for a while, you will want to add some fuel stabilizer to the gas in the tank.
