The Kohler rxt series 200-amp outdoor automatic transfer switch (service disconnect) is available for purchase today.

Read Kohler RXT -JFNC-0200ASE reviews before checking out.

Get the best deal on your new Kohler RXT -JFNC-0200ASE.

No coupon code required.

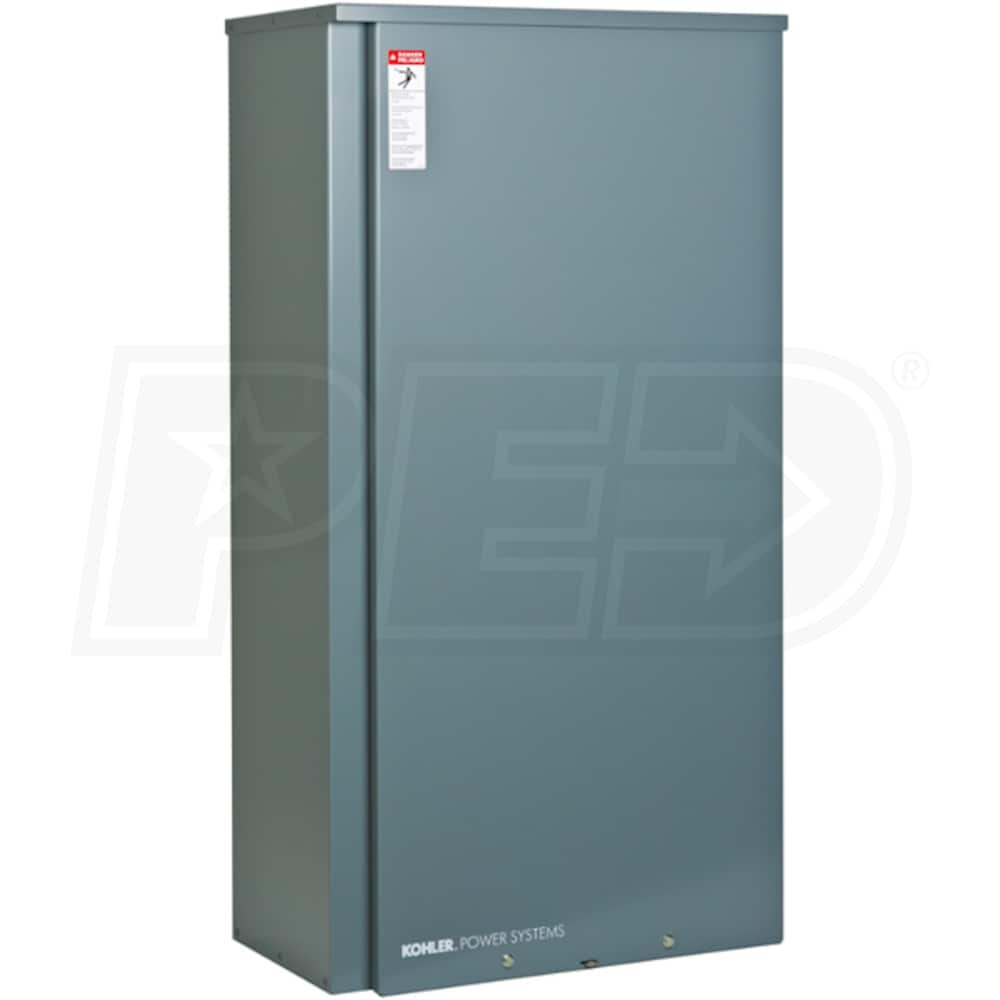

Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

(Based on expert analysis, manufacturer ratings and customer reviews)
2.7 out of 52.7 out of 52.7 out of 52.7 out of 52.7 out of 5
3 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Friday, Jan 30th

Estimate Arrival
Have installers contact me for a quote.
+$0.00 local installers help?

No Sales Tax*
(Except IL)
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 1
  • 3
  • Articles
  • Shipping
  • Accessories

Need Help? Ask Our Generator Experts.
Kohler RXT Series 200-Amp Automatic Transfer Switch
For use w/ models 14RESA/RESAL, 20RESA/RESAL & 48RCL
Only compatible with Kohler generators with RDC2/DC2 controllers

Service Entrance Rated
Includes disconnect circuit breakers on both sources

Corrosion-Resistant NEMA 3R Aluminum Enclosure
Approved for indoor or outdoor installations
Switch can be padlocked for additional safety

Standard Features
Allows utility voltage display on RDC2/DC2 controller
Interface board for connection to the RDC2/DC2 controller
Double throw inherently interlocked design

Added Safety
Contractor manually operable for maintenance purposes

Rated at 200-Amps @ 240-Volts

5-Year Limited Warranty

  Model Number:RXT -JFNC-0200ASE
 Manufacturer Name:Kohler
 Maximum Wattage:48,000 Watts
 Voltage:120/240 Single-Phase
 Frequency:60 Hertz
 Rated Amps:200 Amps
 ATS Service Disconnect:Yes
 ATS Poles:2 Poles
 Max Generator Input:200 Amps
 Max Utility Input:200 Amps
 Enclosure:NEMA 3R
 UL Listed:Yes
 Weight:30 Lbs. (13.61 kilograms)
 Dimensions:28.8""L x 16.4""W x 6.9""H
(73.15 x 41.66 x 17.53 cm)
 Warranty:5 Years
Download Documents

Need Help? Ask Our Generator Experts.
View Accessories For This Product
Read Reviews
BillMeLater PayPal
How To Library

*Ask Mike about the Kohler RXT -JFNC-0200ASE. Sorry, no repair questions:




 Receive Weekly How-To Tips & Specials

*Required Field
  1 Question
Q: I am thinking of buying a 20,000 watt Kohler standby. I have two 200-amp service panels. Can I get two Kohler automatic transfer switches that will feed those two service panels from the one 20,000 watt generator?
by Ken Fetting from Ohio on December 06, 2013

A: Kohler does not design their transfer switches to function in tandem. In order to service the two panels that you've mentioned, you will need to implement the use of a 400-amp transfer switch. This will allow for both panels to be serviced from the same home standby generator.

You can view the 400-amp equivalent to this product by following the link below;
by Mike, Product Expert
Kohler RXT -JFNC-0200ASE Reviews & Ratings
Write Review
Overall Rating
2.7 out of 52.7 out of 52.7 out of 52.7 out of 52.7 out of 5
Quiet (1)
Fast (1)
I'd Buy It Again (1)
High Quality (1)
Reliable (1)
Expensive (1)
Quality (1)
67% of respondents would recommend this product to a friend
3 Reviews  Sort by
Tim H.
Ballston Spa, NY
Purchased from Electric Generators Direct
Purchased 10/4/14
Most Helpful Critical Review
1 out of 51 out of 51 out of 51 out of 51 out of 5
Kohler Rxt Ats Doesn't Work With All Models
I purchased a RXT transfer switch and installed it with my 14 RESL generator... When it didn't work, I found out that this switch won't work with my generator. Buyer be ware and pay attention. Now I am out $800 with this switch and have to pay $1,500 to get an RDT transfer switch.
Tim Does Not Recommend This Product
Mike, the Generator Expert
Product Expert
Sorry to hear that the ATS did not work for your application. We do state on the website that the RXT switch is only compatible with Kohler generators with RDC2/DC2 controllers. If the switch was installed it cannot be returned and would recommend seeing if you can sell it locally to an electrician.

We do offer the RDT switches and would have to be ordered over the phone as we do not normally carry these but can special order them as needed.
Was this review helpful?
Scott L.
Wyckoff, NJ
Purchased from Electric Generators Direct
Purchased 10/8/13
4 out of 54 out of 54 out of 54 out of 54 out of 5
200 Amp Automatic Transfer Switch
Great product, But I wish it had a little more room inside to install the wiring and the termination lugs were one size larger.
Pros: Easy To Use, Reliable, High Quality, I'd Buy It Again
Cons: Expensive
Scott Recommends This Kohler Product
Was this review helpful?
Alfred H.
Ocean Springs, MS
Purchased from Electric Generators Direct
Purchased 8/28/13
3 out of 53 out of 53 out of 53 out of 53 out of 5
Poor Quality Control
RXT arrived without a connection between interface board and selector switch. After investing 21 man-hours found a bad connection and connected them properly. Poor commentary on the factory quality control.

The 20RESA generator is "missing" on its exercise runs. So I guess there is another quality problem to track down and correct.
Pros: Quiet, Fast
Cons: Quality
Alfred Recommends This Kohler Product
Mike, the Generator Expert
Product Expert
We always suggest having a standby generator installed by a certified installer because they can easily identify a problem like a lose connection, which most likely occurred during shipping. As for your generator missing, it could be caused my a fuel line that is too small or not sized correctly for your generator.
Alfred Would Recommend Electric Generators Direct To A Friend
Web Site


"Every thing went smoothly and arrived promptly."
Was this review helpful?
