The Kohler 20kw composite standby generator system (200a standard switch) is available for purchase today.

Read Kohler 20RESAL reviews before checking out.


Get the best deal on your new Kohler 20RESAL.

No coupon code required.

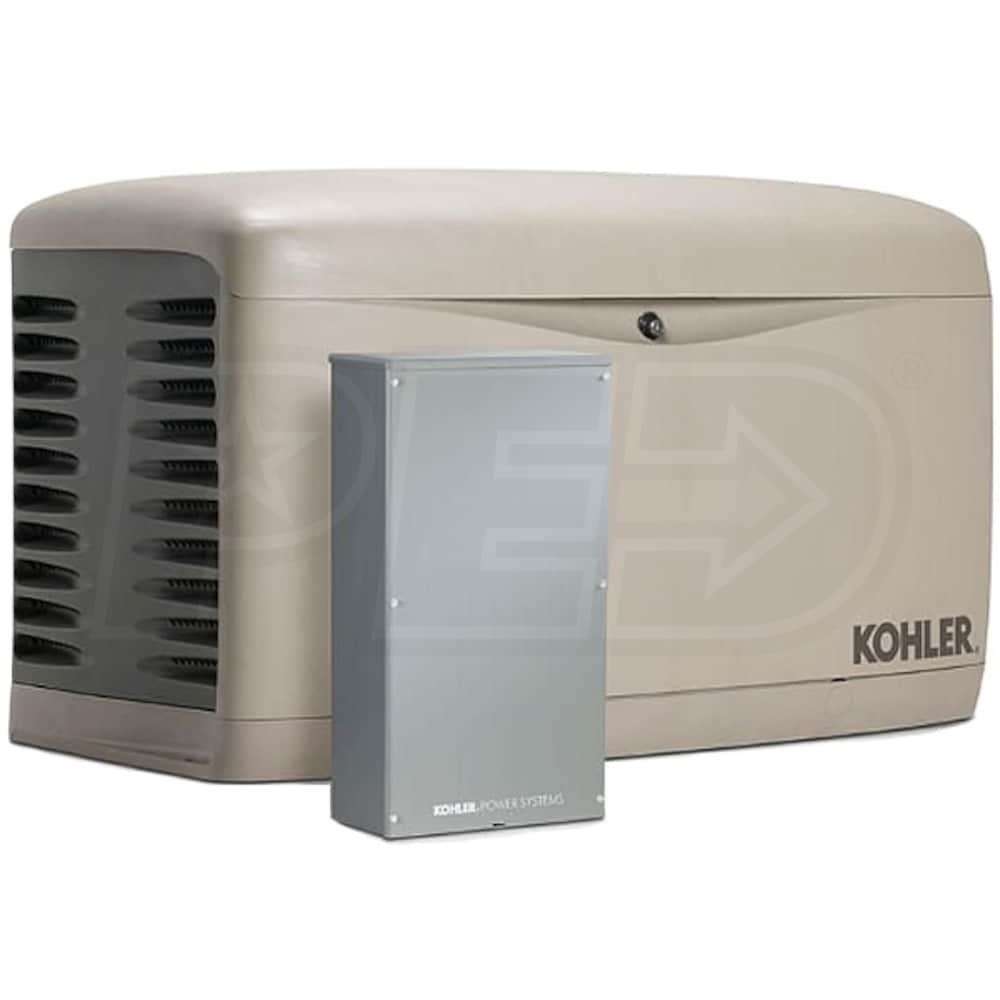

Kohler 20kW Composite Standby Generator System (200A Standard Switch)

(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
9 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
StoreShippingPriceShop

Discontinued

$4,454.00
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 16
    Q&A
  • 9
    Reviews
  • Articles
  • Shipping
  • Accessories

Grade
Air Cooled Standby Generators
Style
Watts
20 kW
Rated Watts
Voltage
120/240V
Single-Phase
Fuel
Engine
Need Help? Ask Our Generator Experts.


Fully Automatic Operation - Includes Automatic Transfer Switch

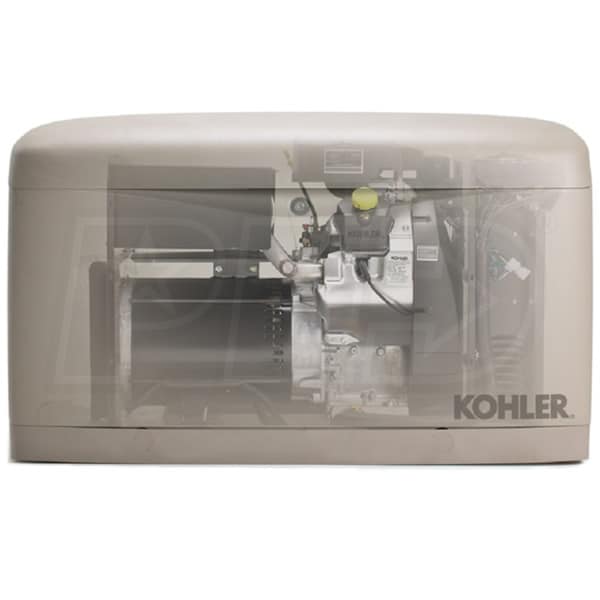

Kohler Command PRO® OHV Engine
Powerful and reliable engine with hydraulic valve lifters

PowerBoost™ Technology
Greater motor-starting ability for large electrical loads

Cleaner Power for Sensitive Electronics
Protects sophisticated electronics with low distortion (THD)

Fast Response
Kohler™ generators restore power in as little as 10 seconds

New Silencer Reduces Sound Levels & Provides Quiet Operation
Maintains neighborhood solitude - approx 69 dB(A) at 7 m (23 ft)

New DC2 Controller
Glare-resistant, 2-line 16-character display - No More Codes
2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
Built-in Ethernet card, no hardware needed for OnCue
Easily view ATS status via LED lights on controller
Real time clock allows you to easily set weekly exercise

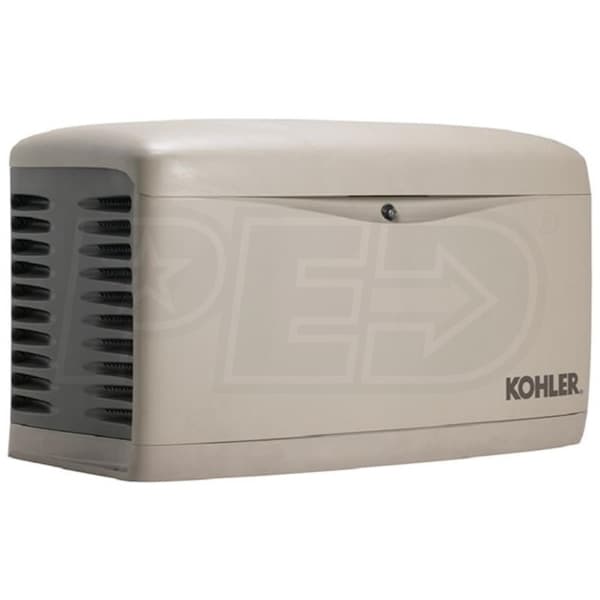

Exclusive 100% Corrosion-Proof Composite Enclosure
Will not rust - even in harsh seaside environments

RXT 200A Outdoor Automatic Transfer Switch (Non-Service Entrance)


Model
  Model Number:20RESAL
 UPC:650531955777
 Manufacturer:Kohler
 Made in USA:Yes
Engine
 Brand:Kohler
 HP/CC:999 cc
 Consumer Engine Warranty:5 Years
 Commercial Engine Warranty:5 Years
 Engine RPM:3600 RPM
 Low Oil Alert/Shutdown:Yes
Product Specs
 Voltage120/240 Single-Phase
 Frequency:60 Hertz
 Cooling SystemAir Cooled
 Fuel TypeLP/Natural Gas
 NG Power Capacity18,000 Watts
 LP Power Capacity20,000 Watts
 NG Consumption (50% Load)161 ft³/hr (BTU: 161,000 BTU/HR)
 NG Consumption (100% Load)281 ft³/hr (BTU: 281,000 BTU/HR)
 LP Consumption (50% Load)2.3 gallons/hr (BTU: 208,725 BTU/HR)
 LP Consumption (100% Load)3.9 gallons/hr (BTU: 353,925 BTU/HR)
 Rated Amps:83 Amps @ 240 Volts (Single Phase)
 Decibel Rating @ 7m:64 Test (69 Run) db(A)
 A/C Ton Rating5-Tons
 EnclosureComposite
 Mounting PadComposite (Included)
 Transfer Switch:Automatic (Included)
 Transfer Switch Amperage:200-Amps
 Transfer Switch StyleStandard Installation
 ATS Service Disconnect:No
 Battery:Not Included (500 CCA - Battery Group 51)
Overview
 UL ListedYes
 Weight:500 Lbs. (226.80 kilograms)
 Dimensions:48"L x 26.2"W x 29"H
(121.92 x 66.55 x 73.66 cm)
 Consumer Warranty:5 Years
 Commercial Warranty:5 Years



*Ask Jim about this item. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field
  16 Questions
Q: Does this unit include a battery? If not, how much is the battery and how much is the cold weather kit?

by Liz from New York on January 15, 2014

A: The battery is not included with the home standby generators and we do not sell the Kohler recommended battery. You can purchase a battery locally.....Group 51 with a minimum of 500 CCA (cold crank amps).

Here is the link to the Kohler carb heater....

Kohler Carb Heater

by Jim, Product Expert
Q: I'm looking at your Kohler models 20RESAL-SA6 and Kohler 20RESAL. What's the difference between the service disconnect switch and a standard switch?
by James Decker from Pennsylvania on December 26, 2013

A: When you are going to use the generator to power the entire home a service disconnect style type transfer switch is required by code as it is installed immediately after the electric meter before your main panel.

The standard model switch is used when there is already a separate service disconnect switch present immediately after the meter or if you are going to just power a sub-panel located after the main electrical panel.

by Jim, Product Expert
Q: Can the "outdoor" standard switch be installed indoors next to power panels?
by John from Washington on September 13, 2013

A: Thank you for your inquiry!

The Kohler RXT-JFNC-0200A is designed for the meet the rigors of outdoor installation, however it is not limited to just that. These switches may very well be placed indoors, so long as the local inspector will allow it. Use of this switch indoors meets the National Electrical Code, however each municipality has the right to their own interpretation of this code.

We would suggest checking with your electrician or at very least, the local building department for their requirements.
by Jim, Product Expert
Q: What size gas supply pipe is needed from tank to generator?
by Richard Evans from Pennsylvania on July 20, 2013

A: Fuel pipe size is based on the distance from the fuel source and for the Kohler models the recommended pipe size and max distances are listed in the installation guide and in the Kohler spec sheet....

Kohler Spec Sheet

by Jim, Product Expert
Q: Does the Kohler have load shedding like the Generac?
by Cecil from Texas on March 07, 2013

A: Kohler's load shedding is not built-in like Generac, it is a separately sold item.

The Kohler Load Control Module -

Kohler Load Control Module

This unit operates just like the Generac load manager.

by Jim, Product Expert
Q: What is the type and part number of the 200A Standard Transfer Switch that is supplied with the Kohler 20RESAL 20KW Standby Generator System advertised for $5199.00? What are all the specifications of this switch in doorout door, automaticmanual, number of circuits, voltagecurrent rating?
Thank you in advance for the follow up information.
regards,
Ron Beers

by Ron Beers from New Jersey on February 08, 2013

A: The following link shows the exact transfer switch included with Kohler generator model 20RESAL....

Kohler RXT-JFNC-0200A
by Jim, Product Expert
Q: How does the warranty work? Does it have to be installed by a Kohler certified dealer for the warranty work?
by Franz Gerster from New York on December 13, 2012

A: Kohler does not require a Kohler certified installer only a minimum would be a certified electrician.

When a Kohler installer does the installation and start-up the warranty starts the day he starts the unit.

When a certified electrician installs and starts the unit the warranty starts the day the unit was shipped from the factory.

All service and warranty work must be completed by an authorized Kohler service technician.


by Jim, Product Expert
Q: What is the purpose of a 200 amp transfer switch if it is not service entrance rated?
by Joel from New York on October 06, 2012

A: A service disconnect can be installed prior to the switch allowing for whole house applications or a specific "emergency" sub-panel can be installed with the switch connected to the sub-panel which the generator would power only.

by Jim, Product Expert
Q: Does the Kohler 20 kw 20RESAL come with a base or pad? if not what is required?
by Jim Mestl from New York on October 04, 2012

A: The unit has a composite pad already installed on the unit but a solid foundation base is required which can be either concrete, crushed stone or pea gravel a minimum of 3 inches thick.

by Jim, Product Expert
Q: Looking at the 20RESAL I see it comes with an outdoor transfer switch. Is this a service entrance rated switch and if not how much extra is it for the service rated one?
by Tommy Strickland from Louisiana on September 13, 2012

A: The switch in the 20RESAL is not service entrance rated. To get the 200A service rated switch you will need to buy each item individually (Generator & Switch).

20RESA

RXT-JFNC-0200ASE - 200A Service Entrance Rated Switch

by Jim, Product Expert
Q: Jim, Is this item dual fuel or just one or the other NG or LP?
Also, what should I expect on ballpark pricing to have this unit installed by an electrician?
Finally, what does the Load control module do for me? Do I need it?
Thanks,
Art

by Art Aldridge from Arkansas on August 31, 2012

A: This model will run on either LP or natural gas with the fuel selected at time of install. No additional parts are required.

Install costs vary. Anecdotal only, and based on my Kohler 18kW installed at my home, the install cost was $2200. This was for gas and electric connections. Mine was a 'middle of the road' install - only 20' from the meters & I did a service entrance switch mounted outside past the meter & between the load center.

If you go with a Generac machine, you can install DLM's or relay blocks to drop out certain high amperage loads which only allow them to power on if the generator has sufficient power remaining to start them. Unless you have multiple 4-5ton A/C units or other large amp draw items, this isn't needed on a 20kW. The best way to install a Kohler is to segregate the loads you want in a sub panel. Then you know that every time the generator starts you will be able to power up all of those items. And, 75amps is a lot of power that goes a long way to keep a home comfortable without utility power.
by Jim, Product Expert
Q: How many BTUs do the generators use? 20kw etc.
by Bob Diem from Maryland on August 07, 2012

A: 281,000 BTU/HR at Full Load.....You can find all the fuel consumption information on the manufacturers spec sheet available on the generator product page under the specs link.

by Jim, Product Expert
Q: Does the Kohler 20 RESAL have load shedding capability like the Generac Unit?
by Ronnierams from New Jersey on July 13, 2012

A: Yes, with the purchase of their Load Control Manager which needs to be installed by a certified electrician....click link for details...

Kohler Load Control Manager

by Jim, Product Expert
Q: i need to use a service disconnect switch and will be installing the switch inside.What switch should i use and how much is the complete pkg deliveried.
by Charlie Smith from New York on June 15, 2012

A: You would need to purchase the 20RESA generator and the RXT-JFNC-0200SE switch. Click on the links below for pricing and add both items to your cart for total.

Kohler 20RESA Generator

Kohler RXT-JFNC-0200SE Switch

by Jim, Product Expert
Q: I just bought a 20resal and hooked it to my propane tank. What is the gas consumption rate of the generator?
by Carl Weber from Tennessee on April 08, 2012

A: LP Consumption (50% Load) = 2.3 gallons/hr

Spec Sheet

by Jim, Product Expert
Q: Hi Jim,
What is the difference between the 20resl and 20resal?
I don't see the composite pad on this unit 20resal?
Thanks,
Steve

by Steve from New Jersey on February 21, 2012

A: The new "A" version has the following features added:
** New Controller - RDC2/DC2
- New display readable in direct sunlight, 2 lines, 16 characters per line, no more codes.
- Built-In 2.5A battery charger using 120 VAC allowing deletion of the separate 6A battery charger
- Includes Ethernet Board, so no hardware required to be installed for OnCue
- RDC2 has built-in LED's on controller overlay to view status of RXT transfer switch and source availability while standing at the genset
- Real Time Clock - Allows setting of Exercise for any time and day you want
- Internal protection, no controller fuses to service
- Controller is fully potted for protection against snow and moisture

** New Silencer design to reduce sound levels
- 14RESA sound level during exercise is 63 dBA, and 67 dBA during normal operation
- 20RESA sound level during exercise is 64 dBA, and 69 dBA during normal operation

The composite pad is the same color as the entire unit and already attached to the bottom of the generator.
by Jim, Product Expert
Kohler 20RESAL Reviews & Ratings
Write Review
9 Reviews  Sort by

Jim W.
Hyampom, CA
Purchased from Electric Generators Direct
Purchased 4/13/13
Total Helpful Votes
37 Helpful Votes
REVIEWED
MAY.
26
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Kohler Standby/20resal
Since purchasing and installing this Generator, I have heard from a number of folks who say Kohler is the very best value. I agree. Keep in mind, however, that in order to to activate the warranty, it must either be installed by a "Kohler" dealer/installer, or at least have this individual inspect the installation and execute the "start-up" documentation. This cost me an additional $500 due to the remote area we live. The "Kohler" guy was able to identify some... more
Was this review helpful?
370
Roger
Purchased from Electric Generators Direct
Purchased 8/27/12
Total Reviews
3 Reviews
Total Helpful Votes
44 Helpful Votes
REVIEWED
DEC.
15
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Tips For New Buyers
I finally got the unit installed (the delay was from the local contractors & utilities; delivery was in two days) and it purrs like a kitten. The voltage under load varies by two, frequency by 0.3Hz.

You can get a transfer switch with the service disconnect built in. I was replacing the pole and forty year old meter/service disconnect. The new meter socket had an integrated 200 amp service disconnect/breaker so I really didn't need the disconnect in the transfer switch.

My electrician... more
Was this review helpful?
362
David M.
Southern Pines, NC
Purchased from Electric Generators Direct
Purchased 5/6/13
Total Helpful Votes
25 Helpful Votes
REVIEWED
JUN.
18
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Kohler Comes Through After High Wind Storm
I had just finished the installation of a the Kohler 20RESAL standby generator, with not a minute to spare! A front came through our area with 50+ mile an hour winds and rain, downing trees and knocking out power. We had finalized our setup, and tested the system for our customer only the day before. What a relief to get the call that they were with power when all around them everybody else was out for 24 -36 hours. My customer's father-in-law has me installing a system for them, and I hope to... more
Was this review helpful?
254
John
Luling, TX
Purchased from Electric Generators Direct
Purchased 6/21/12
Total Helpful Votes
17 Helpful Votes
REVIEWED
JUL.
24
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Purchase Of Generator
Well the Generator shows up in good condition, while getting the contractors together to install the propane/electric, had a power outrage in the area. Sure would a been nice to have the generator going. l live out in the sticks and power goes out alot.

Got it installed now,...got it big enough to power the needed items to run the home ...ran a few test runs see if it will do the job.
I'm very pleased with the product ..thanks guys/gals for your excellent service
Was this review helpful?
172
Ruth & Ray B.
Dubach, LA
Purchased from Electric Generators Direct
Purchased 8/7/12
Total Helpful Votes
16 Helpful Votes
REVIEWED
AUG.
29
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
North La Generator For Our Home
Our newly purchased generator has been a very good experience for us. Electric Generators Direct made this purchase easy and we are so pleased with the ordering process, shipping(free), and the actual delivery.

This process is the way to go. Thanks to all who helped us through. You are to be commended for your courtesy and our generator is soooooo nice!
more
Was this review helpful?
162
Mike
Craigsville, WV
Purchased from Electric Generators Direct
Purchased 10/29/12
Total Helpful Votes
15 Helpful Votes
REVIEWED
JAN.
01
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Ready And Able
Our generator is installed and ready to back up utility power when the need arises. I was surprised our system was not the latest RDC2 controller.

I do understand the Generator demand power outages has caused in the east this year so I was not upset. However, we are very very happy with the ease of installation and setup.

Your professional service all the way to delivery was a great experience.
Was this review helpful?
153
Winston
Westbury, NY
Purchased from Electric Generators Direct
Purchased 6/4/12
Total Reviews
2 Reviews
Total Helpful Votes
13 Helpful Votes
REVIEWED
JUN.
27
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Safe & Secure
My job is to provide safety and as little inconvenience to my family. This Kohler 20kW Home Standby Generator has been greeted with priceless smiles. Photo's and Video to follow.
Was this review helpful?
134
Henry
Purchased from Electric Generators Direct
Purchased 9/29/12
Total Helpful Votes
17 Helpful Votes
REVIEWED
NOV.
13
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
My Story
After spending weeks considering various generators, I chose this one- one reason being that it came with a composite base, another being the 5-year warranty.

Everything arrived on time and was as advertised. I had it off-loaded from the semi onto a cart (2000 pound capacity) pulled by my riding lawnmower. Getting it sited was somewhat a chore as it weighs 500 pounds and we had to go up a grade and around bushes and trees next to the house where my riding lawnmower had no traction (or... more
Was this review helpful?
179
Cynthia
Amenia, NY
Purchased from Electric Generators Direct
Purchased 10/29/12
Total Helpful Votes
14 Helpful Votes
REVIEWED
DEC.
22
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Home Owners
I received the generator a month ago but just got it up and running today.
Up until now all I could say was nice case.
Now I can say It does as advertised and we are pleased with it.
Was this review helpful?
149
Free Freight
  • Ships via Semi-Truck
  • Curb Side Delivery
  • Free to Lower 48 States
We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States



36%
Buy This

Compare
Learn More About THP108
$39.99






27%
Buy This

Compare
Learn More About GM57969-KP1
$129.95






9%
Buy This

Compare
Learn More About GM77177-KP2
$585.00






9%
Buy This

Compare
Learn More About GM88281-KP1-QS
$119.00






9%
Buy This

Compare
Learn More About THP101
$14.99






9%
Buy This

Compare
Learn More About THP107
$19.99







Compare
Learn More About GM81529-KP1
$200.00



Receive Weekly How-To Tips & Specials

Shop for the Kohler 20kW Composite Standby Generator System (200A Standard Switch) at Electric Generators Direct. Research Kohler 650531955777 standby air-cooled generators online. Find Kohler 20RESAL standby air-cooled generators & kohler 20kw standby generator and switch features and specifications. Get the best deal; compare Kohler 20RESAL prices now. Buy the 20RESAL direct and save.
