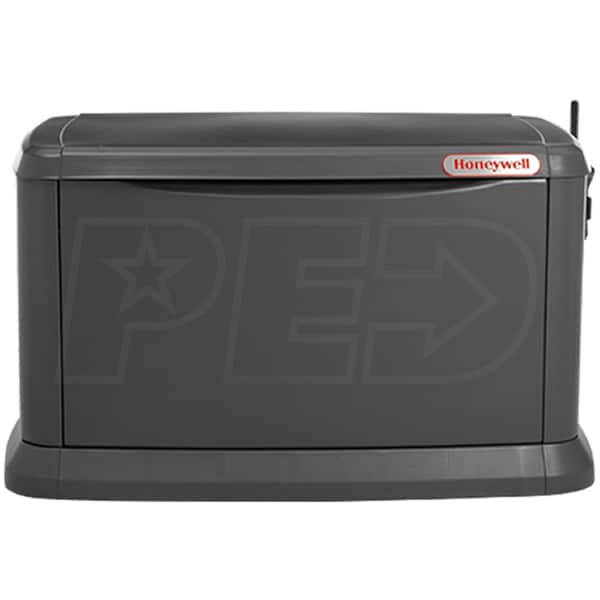

Honeywell™ 22 kW Air-Cooled Aluminum Home Standby Generator w/ Mobile Link™ Remote Monitoring

Model:

6554

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honeywell™ 22 kW Air-Cooled Aluminum Home Standby Generator w/ Mobile Link™ Remote Monitoring
Honeywell™ 22 kW Air-Cooled Aluminum Home Standby Generator w/ Mobile Link™ Remote Monitoring
Model: 6554
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

22,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Honeywell™ 22 kW Air-Cooled Residential Generator
  • Operates on clean burning Natural Gas or LP (Vapor)
  • Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
  • Provides fully automatic operation & total system compatability
  • PrecisionPower™ Electrical Technology - Less Than 5% THD
  • Utility quality power that won't harm eletronics & micro-chip based appliances
  • State-Of-The-Art Power Maximizing Regulation System
  • Optimized for fast resopnse time to varying loads & +/- 1% Digital Voltage Reg.
  • SYNC™ 2.0 Generator Controller w/ 2-Line LCD Screen
  • Easily view logs of history, maintenance and events
  • Mobile Link™ Cellular Monitoring System
  • Use your computer, tablet or smart phone to check system status
  • WhisperCheck™ Self-Test Exercise Mode
  • Programmable, runs at a lower RPM for a 5-12 min test
  • Aluminum Enclosure w/ RhinoCoat™ Finish
  • Withstands winds up to 150 mph & provides protection from the elements
  • Generac OHVI® Air-Cooled Engine w/ Full-Pressure Lubrication
  • Up to a 2 year/200 hour oil change interval for less maintenance
  • Includes Base Fascia, Mounting Pad & 1' Flex Fuel Line Con.
  • 5-Year Comprehensive Warranty

Specifications

6554
specs product image PID-62362
Overview
Weight
526 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.3 Inches
Product Width
25.3 Inches
Product Height
28.8 Inches
UPC
696471065541
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
184 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.16 gallons/hr
LP Fuel Consumption @ 100% Load
3.68 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 Run (58 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
