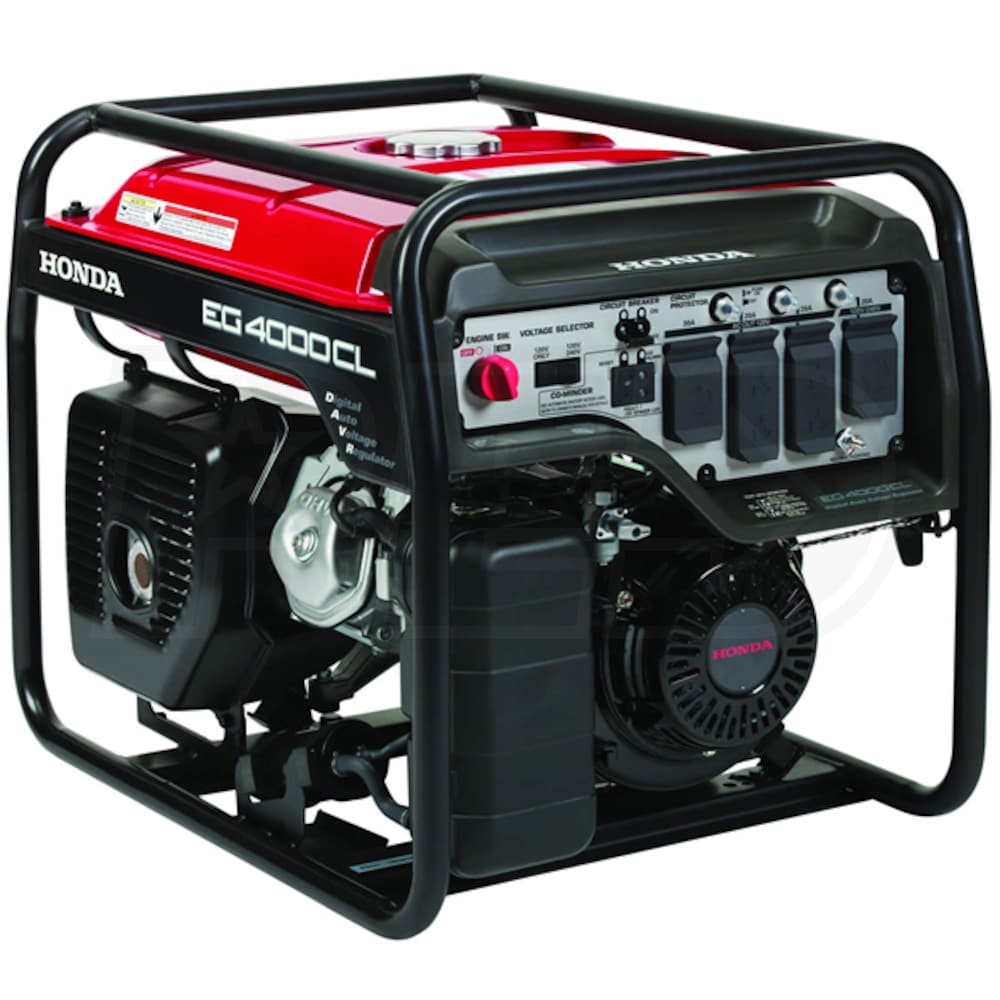

Honda EG4000 Portable Generator - EG4000C - 3500 Watt Portable Generator

Grade	Style
Run Watts 3,500 Rated Watts	Surge Watts 4,000 Starting Watts
Fuel	Engine GX

Powerful Honda iGX Commercial OHV engine
•Reliable, Easy-to-Start and Incredibly Rugged

Honda-exclusive DAVR (Digital Auto Voltage Regulation)
•Designed to hold the voltage stability within a +/- 1% change

Voltage Selector Switch
•Choose between using 120 and 240 Volts

Full Frame Protection

Protected by Oil Alert®
•Shuts the engine down if oil reaches an unsafe operating level
•Prevent engine damage from overheating due to lack of oil

USDA-Qualified Spark Arrestor/Muffler

Model
	Model Number:	EG4000
	Manufacturer:	Honda
	Made in USA:	No
Engine
	Brand:	Honda GX
	Starting System:	Recoil Start
	HP/CC:	270 cc
	Consumer Engine Warranty:	3 Years
	Commercial Engine Warranty:	3 Years
	Engine RPM:	3600 RPM
	Low Oil Alert/Shutdown:	Yes
	Cast Iron Sleeve:	Yes
Product Specs
	Voltage	120/240 Single-Phase
	Frequency:	60 Hertz
	Auto Voltage Regulation:	Yes
	Fuel Type	Gasoline
	Rated Amps:	15 Amps @ 240 Volts (Single Phase)
	Portability Kit:	Sold Separately
	Tank Size:	6.3 Gallons
	Run Time (50% Load):	15.7 Hours
	Fuel Tank Material:	Metal
	Fuel Gauge:	Yes
	Lifting Eye:	No
	Neutral Type:	Floating
	Battery:	Not Applicable
	Decibel Rating @ 3m	72
Overview
	Weight:	155 Lbs. (70.31 kilograms)
	Dimensions:	41.9L x 27.2W x 29.2H (106.43 x 69.09 x 74.17 cm)
	Consumer Warranty:	3 Years
	Commercial Warranty:	3 Years

Download Documents

Owners Manual

Spec Sheet

Outlets

*Ask Jim about this item. Sorry, no repair questions:

*Name:

*State:

*Email:

Receive Weekly How-To Tips & Specials

*Required Field

1 Question

Q: Jim,
I would like to have the capability of running 240 volts for my well. I understand that the Honda 2000I has a parallel cable that can be hooked up to achieve 4000 watts. With this parallel path is it able to produce 240volts synchronized so it would be able to run a 240 Volt motor? If this was possible I could get the economy of the 2000i and start the 2nd 2000i when the 240 volt motor (well) needed to run.
by Paul Baune from Minnesota on December 08, 2012

A: The Honda EU2000i is only capable of producing 120 volts weather you are operating it alone or in parallel with another EU2000i.
by Jim, Product Expert
