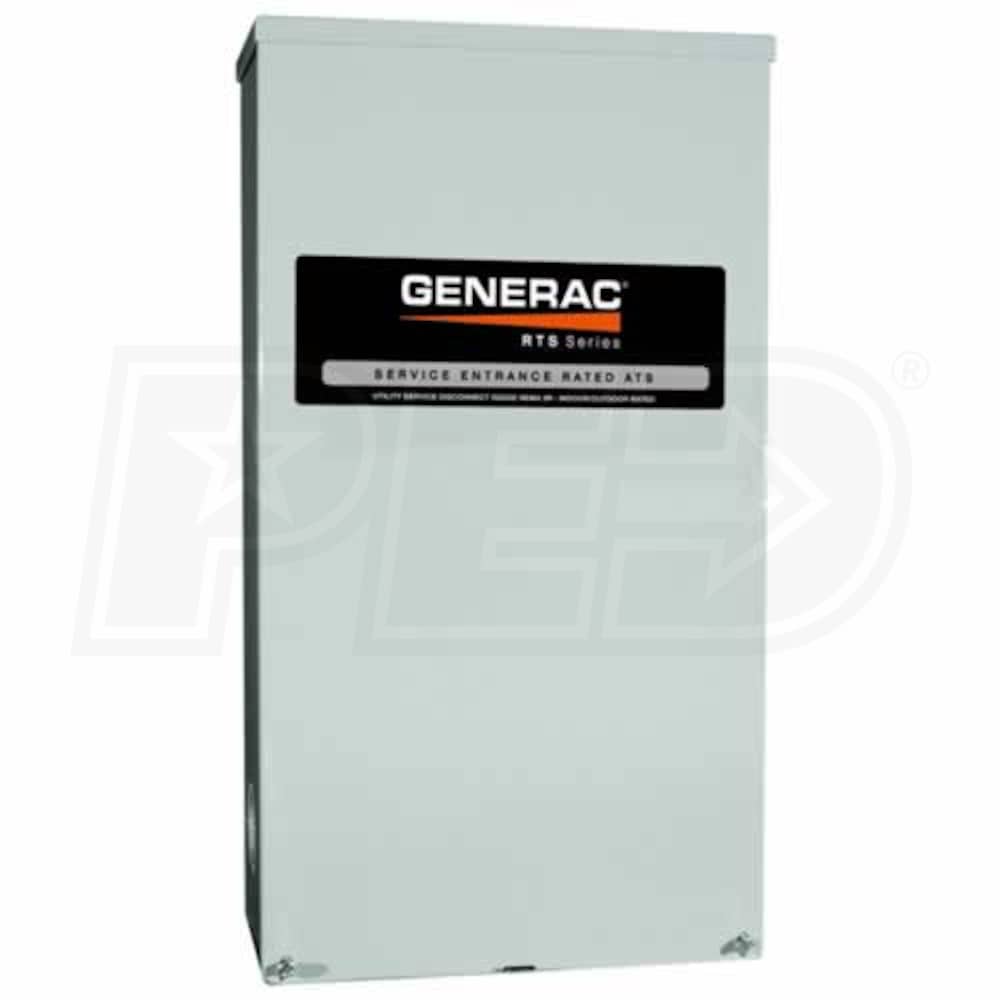

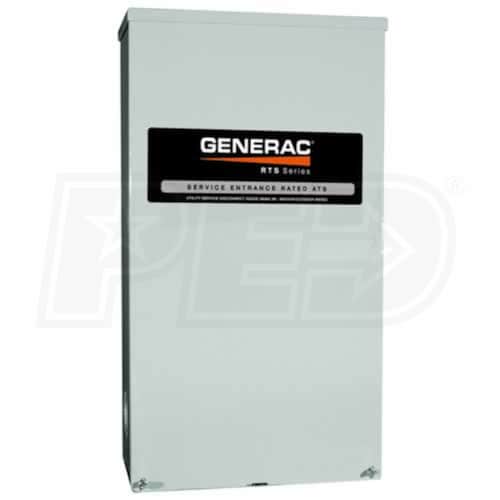

Generac Guardian RTSD100A3 - Generac Nexus Smart Switch™ - 100 Amp Automatic Transfer Switch (Service Entrance)

Your Online Generac Guardian Portable and Standby Generator Superstore.

Generac Guardian Electric Generator and Generator Accessories
Model RTSD100A3		 Generac Nexus Smart Switch™ - 100 Amp Automatic Transfer Switch (Service Entrance)

(2 Reviews)

Generac Nexus Smart Switch™ - 100 Amp Automatic Transfer Switch (Service Entrance)

In-Stock In-Stock
Ships Tuesday, May 22nd
Check Arrival Times for the Generac Guardian RTSD100A3
No Sales Tax on All Generac Guardian Generators & Accessories
 Generac Nexus Smart Switch™ - 100 Amp Automatic Transfer Switch (Service Entrance)
Retail Price: $617.00
Click Here To Learn More About Our Factory Direct Savings Discount: -$118.00
Your Price: $499.00




Need Help? Ask Our Generator Experts.
Nexus™ Automatic Transfer Switch

Compatible With Generac Nexus™ or Generac R200 Controllers
•Leverages digital load management (DLM) technology
•Ability to manage 2 A/C units with no additional hardware
•Intelligently manage 4 more loads w/ additional DLM modules
•DLM Module P/N: 5937 (Sold Separately)

Service Entrance Rated
•Installs between main meter and service panel
•Contains load side and line side disconnecting breakers

NEMA 3R Indoor/Outdoor Rated
•Aluminum, wall mountable weather-proof enclosure
•Electrostatically applied and baked powder paint (Gray)

Tech Spec Summary:
•Load transition type: Open Transition
•Withstand rating: 10,000 Amps
•Lug range: 2/0 - #14

For Use With Generac Generators Only


Model
  Model Number:RTSD100A3
 UPC:696471607475
 Manufacturer Name:Generac Guardian
 Made in USA:Yes
 Maximum Wattage:24,000 Watts
 Voltage:120/240 Single-Phase
 Frequency:60 Hertz
 Rated Amps:100 Amps
 ATS Service Disconnect:Yes
 ATS Poles:2 Poles
 ATS Load Shedding:Compatible
 ATS Load Prioritizing:Compatible
 Max Generator Input:100 Amps
 Max Utility Input:100 Amps
 Enclosure:NEMA 3R
 UL Listed:Yes
Overview
 Weight:23 Lbs. (10.43 kilograms)
 Dimensions:20"L x 14.6"W x 7.09"H
(50.80 x 37.08 x 18.01 cm)
 Warranty:1 Year


Need Help? Ask Our Generator Experts.

*Ask Jim about this item. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field
  2 Questions
Q: Will this transfer switch work with Generac 16kw generator #5254?
by Stefan from Pennsylvania on May 14, 2012

A: This switch will work but you would require a special kit to connect to the battery charger. This kit would have to be installed by a certified Generac dealer.

These kits are available from your local Generac dealer - Part Number: OH93030SRV.


by Jim, Product Expert

Q: What is the difference between the Generac Nexus Smart Switch (100 Amp) automatic transfer switch for $349 and the Generac Nexus Smart Switch (100 Amp) automatic transfer switch (Service Entrance) for $499?

Thank you for your time and consideration.
by Cecil Camune from Illinois on January 29, 2011

A: The "Service Entrance" type automatic transfer switch has a built in shut off switch to power can be turned off to perform service on the generator without backlash from utility power. This type of switch is normally required by code to be installed if used in a whole house application and mounted between the meter and electrical panel being powered.

The "Standard" type automatic transfer switch does not include this service entrance feature and is normally installed when the generator is powering a sub-panel.
by Jim, Product Expert

Overall
Rating 		5.0 5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(Based on 2 Reviews) 		 Sort By
Write Review

Jim, the Generator Expert

,
Product Expert
Electric Generators Direct

5 out of 55 out of 55 out of 55 out of 55 out of 5

Electric Generators Direct Recommended
Jim's Recommendation

The Generac RTSD200A3 is the same automatic transfer switch that comes standard with the best-selling Generac 5875 smart circuit standby generator system.

This "Smart Switch" is unique because it comes equipped with two Digital Load Managers (DLM) already built-in to control two standard AC units.

Best of all, if you have multiple high-voltage appliances, your electrician can install up to 4 more separate DLMs (total of 6) to protect your generator system from overloading. This is a separate accessory you will need to buy.

The separate DLM modules are used to alternate two high-voltage appliances - like electric water heaters or well pumps. It basically allows you to energize your entire electrical panel - not just essential circuits.

This 100-Amp automatic transfer switch is service entrance rated so it is installed between the meter and main electrical panel.



October 31, 2011

Gary
River Edge, NJ

5 out of 55 out of 55 out of 55 out of 55 out of 5

 Best Investment Ever

I got Generac Guardian 5884 with 100 amp service rated ATS and couldn't be happier.

Running on generator power for third day due to snow storm, and no problems at all.
Got heat hot water and lights, generator is running 24 hours a day.

With temperature in the 30s in the morning generator runs like champ. great piece of equipment.
