The generac 100-amp indoor automatic transfer switch w/ 16-circuit load center is available for purchase today.

Read Generac Guardian RTS16EZA1 reviews before checking out.


Get the best deal on your new Generac Guardian RTS16EZA1.

No coupon code required.

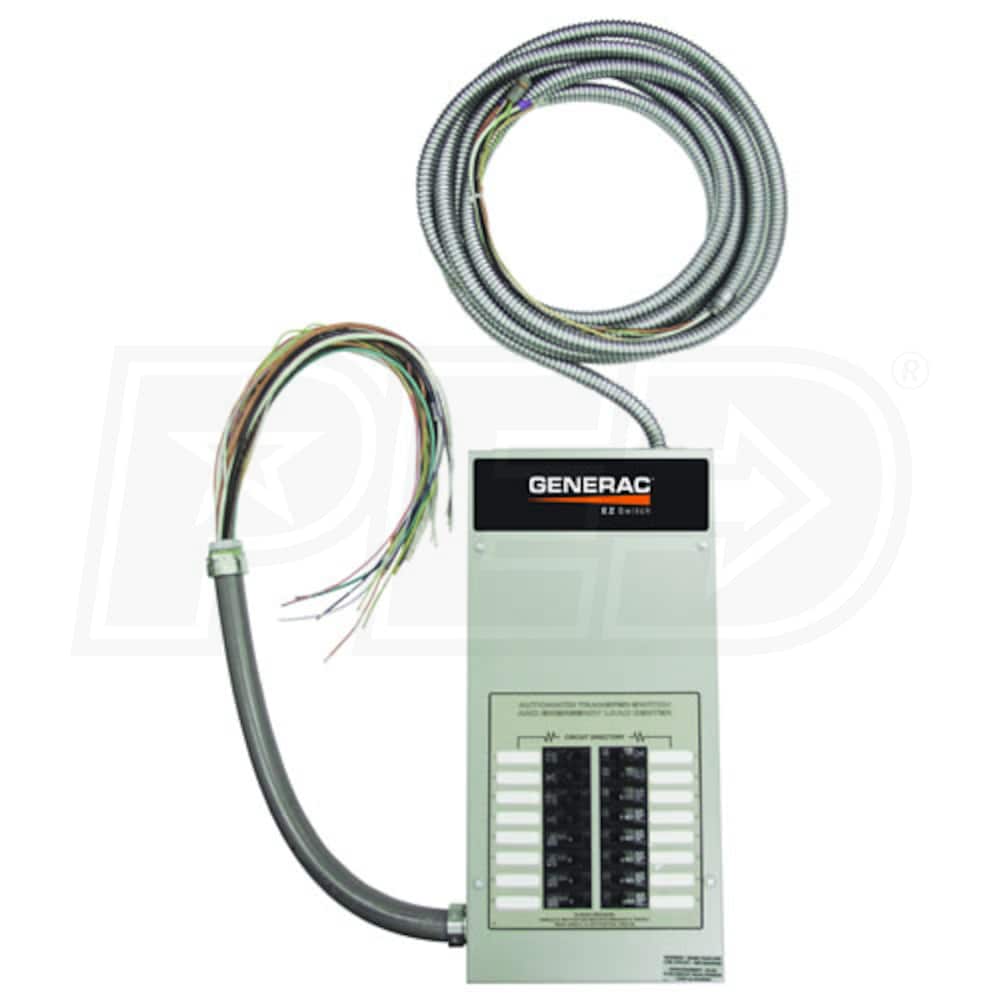

Generac 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • 6
    Q&A
  • 4
    Reviews
  • Articles
  • Accessories

Need Help? Call Our Generator Experts.
100-A Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Perfect for backing up emergency circuits

Steel NEMA-1 Indoor Enclosure
Electrostatically applied and baked powder paint

Breakers:
5 x 15A (120V) 1-Pole
5 x 20A (120V) 1-Pole
1 x 20A (240V) 2-Pole
1 x 40A (240V) 2-Pole
1 x 50A (240V) 2-Pole

Includes:
Pre-Wired External Connection Box
30' Pre-Wired Conduit From Transfer Switch To Generator
2' Pre-Wired Conduit From Transfer Switch To Main Panel

Recommended Generator Size Range 14kW - 17kW
For Use With Generac Generators Only


Model
  Model Number:RTS16EZA1
 UPC:696471607260
 Manufacturer Name:Generac Guardian
 Made in USA:Yes
 Maximum Wattage:24,000 Watts
 Voltage:120/240 Single-Phase
 Frequency:60 Hertz
 Rated Amps:100 Amps
 ATS Service Disconnect:No
 ATS Poles:2 Poles
 ATS Load Shedding:Not Compatible
 ATS Load Prioritizing:Not Compatible
 Max Generator Input:100 Amps
 Max Utility Input:100 Amps
 Enclosure:Steel
 Circuits:5  - 15A/120V
5  - 20A/120V
1  - 20A/240V
1  - 50A/240V
1  - 40A/240V
 Circuit Breaker Protection:Each Circuit
 UL Listed:Yes
Overview
 Weight:30 Lbs. (13.61 kilograms)
 Dimensions:27"L x 13"W x 7"H
(68.58 x 33.02 x 17.78 cm)
 Warranty:1 Year
Download Documents


Need Help? Call Our Generator Experts.
View Accessories For This Product
Read Reviews
How To Library
  6 Questions
Q: Q: On the RTS16EZA1, can I pull one of the two pole 40a or 50a breakers and add two 20a single pole breakers? Are these standard breakers?
by Bob Hilinski from New Jersey on May 13, 2013

A: You cannot alter the 240V circuits to 2 - 120V circuits.

Yes, they use Siemens breakers standard.

by Mike, Product Expert

Q: Ok. my question is about the ATS. Does the switch transfer individual loads or the entire 100 amp service.? I need a transfer switch that will transfer 10 -12 circuits so i don't have to touch the utility main.
by Mike from Connecticut on January 05, 2013

A: The prewired 12 circuit transfer switch gets wired directly to the circuits you want the generator to power during an outage. So, when power goes out the generator will only power the selected circuits.

The circuit breakers and the main breaker is not touched in an automatic system. This switch allows you to go with a smaller generator since the generator will be powering only the 12 selected circuits you pick during the installation.

it is recommended to consult with a certified electrician for proper generator sizing and installation based on your specific application.

Note: The Generac transfer switches are controlled by the controller inside the Generac generator. (Nexus Controller)

by Mike, Product Expert

Q: If I purchase a 14 KW Generac standby Gen with the 14 circuit switch, can I swap out the 40 amp breaker for a 50 amp?
by Paul from New Jersey on May 24, 2012

A: No, the internal wiring of the switch is not capable of handling the higher amperage rating. If you need a 50A breaker in the switch you need to purchase the generator by itself, model 5884, and then purchase the 16ckt switch, model RTS16EZA1, which has a 50A breaker.

Generac Model 5884

Generac Model RTS16EZA1

by Mike, Product Expert

Q: how many individual wires are there in the 30ft. lead on the transfer switch and what are the wire gauges for each?
by John from Connecticut on March 03, 2012

A: 9 total wires....

5 Control wires - 14 Gauge

2 - 120V & 1 Neutral - 6 Gauge

1 Ground Wire - 8 Gauge

You can only extend the length an additional 15 ft per Generac and if you need to go farther the entire length needs to be changes since it will no longer be the correct gauge based on the distance beyond 50 total ft.

by Mike, Product Expert

Q: Can I switch the 2 ft. cable to come out other side?
by Joe from Pennsylvania on February 08, 2012

A: Yes, you can come out the other side or the bottom if needed.

by Mike, Product Expert

Q: Jim,
I'm replacing my old 200 amp dist. panel. When I have the sheet rock torn off, I would like to install a 100 amp 16 circuit auto. transfer switch for a 20K stand-by gen. to be installed at a later date. Would the Generac model RTS16EZA1 be a good choice? What do you think?

by James Compton from Virginia on January 04, 2012

A: Unfortunately these switches are not designed for flush mounting and Generac does not offer a flush mount kit for them. You would also have to purchase a Generac generator as everything on the market is now proprietary.

Since you are looking to replace your entire 200A panel I would recommend selecting the following switch/load center combo instead. This is a great setup and you don't need a separate generator switch as it is built into the load center.

Generac GenReady Panel

by Mike, Product Expert

Generac Guardian RTS16EZA1 Reviews & Ratings
Write Review
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Pros
I'd Buy It Again (1)
Price (1)
Easy To Use (1)
Cons
None to display.
4 Reviews  Sort by

Chuck
Purchased from Electric Generators Direct
Purchased 7/13/12
Total Reviews
5 Reviews
REVIEWED
AUG.
25
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Easy Installation
No problems.
Was this review helpful?
10
Daryl S.
Plymouth, MN
Purchased from Electric Generators Direct
Purchased 6/25/13
REVIEWED
AUG.
10
2013
4 out of 54 out of 54 out of 54 out of 54 out of 5
Even A Master Electrician Can Install It
I am a seasoned master electrician and I have seen many handyman home owners botch up electrical installs. This switch package makes it easy for a homeowner with average skills to get it all right. So as a master electrician, I appreciated the pre thinking that went into this switch package so it goes into service easily and right the first time. Guess you could say, "even a master could get it right"!!
Pros: Easy To Use, Price, I'd Buy It Again
Daryl Recommends This Generac Guardian Product
Was this review helpful?
00
Frank N.
West Caldwell, NJ
Purchased from Electric Generators Direct
Purchased 4/19/13
REVIEWED
JUN.
01
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Runs Very Smoothly
The Generac Guardian 17kw generator with the 100-amp indoor automatic load center runs very smoothly and performs flawlessly. It really gives one a feeling of security. Keep up the good work Generac.
Was this review helpful?
00
R. M.
Davidsonville, MD
Purchased from Electric Generators Direct
Purchased 7/5/12
Total Reviews
2 Reviews
REVIEWED
SEP.
13
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Very Pleased!
Well, we finally got to try our Generac out, for real this time. The power went out for a hour or so. The generator came on just seconds after. Nothing skipped a beat.

We were doing laundry, running the computer, vacuuming, etc. It was as though there was no power outage at all. This is exactly what we were hoping for.

This purchase will surely make life easier, and will be a big perk, come the day we sell our home.
Was this review helpful?
00
