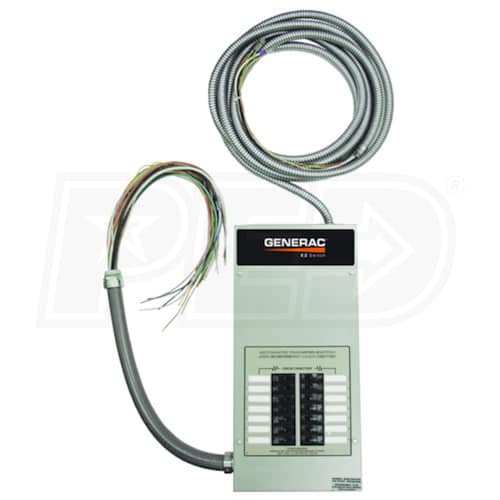

Generac Guardian RTS14EZA1 - Generac 14-Circuit Load Center 100-Amp Indoor Automatic Transfer Switch

Your Online Generac Guardian Portable and Standby Generator Superstore.

Generac 14-Circuit Load Center 100-Amp Indoor Automatic Transfer Switch

Factory Direct Buy Factory Direct & Save
Ships in 2-5 Business Days
Check Arrival Times for the Generac Guardian RTS14EZA1
No Sales Tax on All Generac Guardian Generators & Accessories
 Generac 14-Circuit Load Center 100-Amp Indoor Automatic Transfer Switch
Retail Price: $509.00
Click Here To Learn More About Our Factory Direct Savings Discount: -$60.00
Your Price: $449.00




Need Help? Ask Our Generator Experts.
100-A Indoor Automatic Transfer Switch w/ 14-Circuit Load Center
•Perfect for backing up emergency circuits

Steel NEMA-1 Indoor Enclosure
•Electrostatically applied and baked powder paint

Breakers:
•4 x 15A (120V) 1-Pole
•6 x 20A (120V) 1-Pole
•1 x 20A (240V) 2-Pole
•1 x 40A (240V) 2-Pole

Includes:
•Pre-Wired External Connection Box
•30' Pre-Wired Conduit From Transfer Switch To Generator
•2' Pre-Wired Conduit From Transfer Switch To Main Panel

Max Generator Size 17kW
•For Use With Generac Generators Only


Model
  Model Number:RTS14EZA1
 UPC:696471607253
 Manufacturer Name:Generac Guardian
 Made in USA:Yes
 Maximum Wattage:24,000 Watts
 Voltage:120/240 Single-Phase
 Frequency:60 Hertz
 Rated Amps:100 Amps
 ATS Service Disconnect:No
 ATS Poles:2 Poles
 ATS Load Shedding:Not Compatible
 ATS Load Prioritizing:Not Compatible
 Max Generator Input:100 Amps
 Max Utility Input:100 Amps
 Enclosure:Steel
 Circuits:4  - 15A/120V
6  - 20A/120V
1  - 20A/240V
1  - 40A/240V
 Circuit Breaker Protection:Each Circuit
 UL Listed:Yes
Overview
 Weight:30 Lbs. (13.61 kilograms)
 Dimensions:27"L x 13"W x 7"H
(68.58 x 33.02 x 17.78 cm)
 Warranty:1 Year
Download Documents
Owners Manual
Spec Sheet


Need Help? Ask Our Generator Experts.

*Ask Jim about this item. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field
  2 Questions
Q: how many individual wires are there in the 30ft. lead on the transfer switch and what are the wire gauges for each?
by John from Connecticut on March 03, 2012

A: 9 total wires....

5 Control wires - 14 Gauge

2 - 120V & 1 Neutral - 6 Gauge

1 Ground Wire - 8 Gauge

You can only extend the length an additional 15 ft per Generac and if you need to go farther the entire length needs to be changes since it will no longer be the correct gauge based on the distance beyond 50 total ft.

by Jim, Product Expert

Q: Can I switch the 2 ft. cable to come out other side?
by Joe from Pennsylvania on February 08, 2012

A: Yes, you can come out the other side or the bottom if needed.

by Jim, Product Expert
