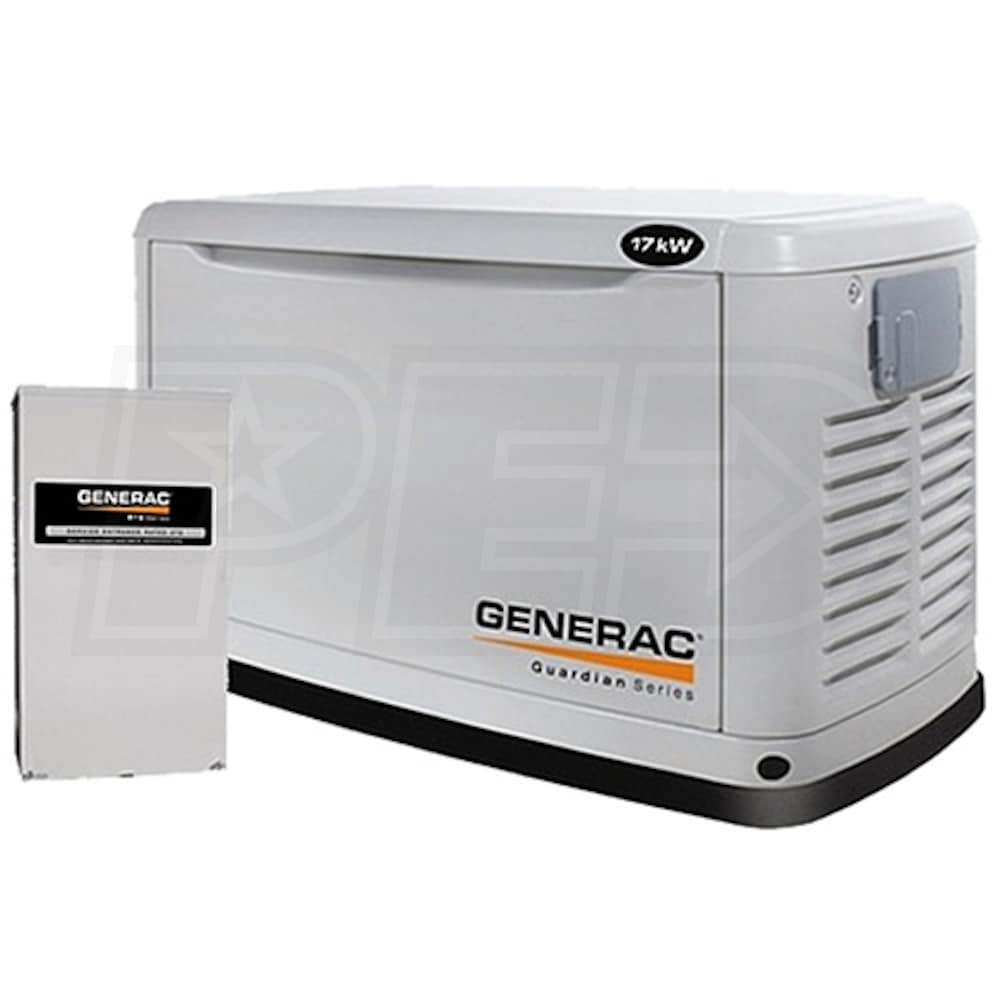

Smart Circuit Standby Generator System •Restores power to your entire electrical panel automatically •Digital Load Management (DLM) protects against overload
Nexus Smart Switch™ (RTSD200A3 - Included) •DLM technology allows for the smart control of 2 air conditioners •Service Rated: Mounts between meter and main service panel •200–amp aluminum indoor/outdoor (NEMA 3R) cabinet
Nexus™ Digital Controller •Provides system status to compatible Nexus™ wireless monitors
Aluminum Sound-Attenuated Weather Proof Enclosure •Lightweight material offers superior corrosion resistance •Reduces sound pressure to a low 66 dB(A) •Attractive styling with lockable access doors
Automatic Voltage Regulator •Regulates ouput voltage to ±1% which prevents damaging spikes •Safe for sensitive electronics like computers and televisions
Generac OHVI Air-Cooled Engine •Full pressure lubrication system w/ 2 year oil change interval
Also Included: Composite Mounting Pad & 1' Flexible Fuel Line
Listed to UL2200 Engine/Generator Standard for Safety
Q: Can you tell me how many inches of water pressure we need for the 183cubic feet per hour. Aslo, what diameter pipe would be required for a 30 foot run? by Paul Reale, P.E. from Georgia on March 25, 2012
A: 5 to 7 inches of water column for natural gas and per the manufacturers recommendations on a 30 ft run with a 17kW generator you would need to use a 1 inch pipe which has a maximum distance of 40 ft.
If you need to go any farther then you must step-up to a 1-1/4 inch pipe which has a maximum distance of 190 ft.
Q: I plan to wire the AC thermostat "y" wires to the AC LSM on our new 5875 gen set. I also ordered 4 purchased 4 DLM modules. If there are four restore priorites and there are possible 6 loads shed (2 AC + 4 DLM's), how do the last 2 shed loads get restored? Seems like there should be 6 restore priorities?
Q2: How do I program in the restore priorities? I can not find anything in the installation or operation manual on how to program the gen set contol panel?
I would really appreciate your help on this as I will hopefull have it ready to activate after next weekend.
Thank, Don Pappe
by Don Pappd from Oklahoma on March 21, 2012
A: The first 2 priorities are AC 1 & AC 2 with the other loads being 1 - 4 and the AC loads are looked at first by the load manager which is not programmable.
The system itself will start loads starting at AC1 and stop loads starting at Priority #4 and working backwards so it depends on how you specifically wire the items to the load manager. by Jim, Product Expert
Q: Where do I get the installation instructions for the Generac Home Standby Generators? by T Wanamaker from New York on March 12, 2012
A: The unit comes with the installation instructions or you can find them on the Generac website. The instructions you get without the serial number will be basic.
Q: Are two DLM included in the Generac Guardian series 5875 with the purchase of the unit? by Richard Bull from Pennsylvania on February 12, 2012
A: There are 2 AC connections in the Generac Nexus Smart Switch™ which the thermostat wire is run to. So, when the thermostat calls for air/heat and the generator has enough power it will allow the call to go through, thus allowing the AC unit/units to run.
To connect to 2 AC units the DLM modules are not necessary since the AC unit already has a built in contactor/relay controlled by your thermostat.
The DLM modules are for loads (up to 50A) that do not have any control options such as electric ovens or electric water heaters. The DLM acts as a contactor/relay which the transfer switch tell to open or close (on/off) depending on the available wattage from the generator.
Q: Hi Jim,is there any codes to how far from a window the standby generator must be.
Thank You Frank by Frank Gelsomino from Connecticut on January 24, 2012
A: NFPA 37 - 4.1.4 Engines Located Outdoors. Engines, and their weatherproof housings if provided, that are installed outdoors shall be located at least 1.5 m (5 ft) from openings in walls and at least 1.5 m (5 ft) from structures having combustible walls. A minimum separation shall not be required where either of the following conditions exist:
(1) The adjacent wall of the structure has a fire resistance rating of at least 1 hour. (2)*The weatherproof enclosure is constructed of noncombustible materials and has been demonstrated that a fire within the enclosure will not ignite combustible materials outside the enclosure.
The above code is referenced in NFPA 70 - Article 445 Generator Locations.
You do need to reference with your local inspector what the requirements are for your local city codes along with the requirements in your area for noncombustible materials.
Always consult with a certified electrician on all installation procedures and processes.
Q: lp tank will be 30' away from unit, what size line do I need and how deep shall it be buried? by Scott from Connecticut on January 08, 2012
A: You will need a 1 inch line minimum for this distance and burial depth would be based on your local code. Please check with your local plumber or city for burial assistance.
The same applies with burring the fuel line beneath the pad and based on the requirements for the flex fuel line (included) there is really no opportunity or need to bury the line.
Q: What is the percentage of THD for the 5871 Standby Generator? Is this figure somewhere in the specs pages or owners manual? by Ray Lacourse from Massachusetts on January 04, 2012
A: The THD (Total Harmonic Distortion) for the Generac Guardian Series Home Standby Generators is less then 5% which can be found in the Generac spec sheet. The link for the spec sheet is under our specs tab on the product page.
Q: Jim..I recently had a 6053 smart switch delivered (very promptly from you guys, by the way). Does this unit have an automatic battery charger? If so, where is the 12v power source for that. Does it originate in the ATS, or in the generators somehow? I have an electrician installing it, but I'm trying to follow the logic of the circuits myself as well. by Terry Petrun from Pennsylvania on October 06, 2011
A: Terry,
The battery charger is built into the generartor Nexus controller and when properly wired from the transfer switch it will charge the battery.
Q: How far from the house does it need to be by Dan Healy on September 24, 2011
A: The back side of this generator needs to be at least 18 inches from any surface. Both the right and left side of this machine needs to be at least 36 inches from any surface. by Jim, Product Expert
Q: What is a composite pad ? by CHARLES BLYTHE from North Carolina on April 08, 2011
A: The composite pad is a strong, lightweight mounting pad provided to simplify the installation. By including the pad with the generator, installation time and cost is reduced since a concrete base is no longer a requirement. by Jim, Product Expert
Q: for an average home is a nexus smart circuit versus just a standard 16 ats which one is necessary and why i am looking at buying a 17kw-20 kw generac by Michael Salvato from Florida on March 31, 2011
A: The Nexus Smart Switch is wired directly to the whole panel and certain large circuits, such as AC or pumps, can be wired in the load shedding capabilities so the generator does not overload. With the 16ckt ATS the generator is only wired to the select 16 circuits which have to be sized correctly for the generators capability and only those circuits are powered when power is lost.
It really depends on the equipment in your home as far as which transfer switch system you want to go with.
Proper sizing of the generator is crucial to the success of any generator installation and requires a good working knowledge of electricity and its characteristics, as well as the varying requirements of the electrical equipment comprising the load. When analyzing the electrical load, consult the manufacturer’s nameplate on each major appliance or piece of equipment to determine its starting and running requirements in terms of watts, amps and voltage. When choosing the generator output select a rating that is approximately 20 to 25% higher than the peak load (for example, if the load is about 8 kilowatts, select a 10 kW generator). A higher rated generator will operate comfortably at approximately 80% of its full capacity and will provide a margin of flexibility if the load increases in the future. A certified electrician should be consulted for proper sizing and installation of any generator.
Q: What size and type of cable will I need for a model 6053? The gen set will be located approx. 50 feet from the main service panel. by Roger R. Scott from Utah on March 20, 2011
A: This will need to be determined by your installing electrician who will be following all of your city, county and state codes for proper installation. by Jim, Product Expert
Q: What size NG line do I need for a Model 6053? by Bob Survil from Texas on March 02, 2011
A: Pipe diameter is based on the distance the generator is from the fuel source. You should consult with a plumber for proper sizing. This unit requires 261,000 BTU/HR. by Jim, Product Expert
Overall Rating
5.0
(Based on 11 Reviews)
Sort By
April 12, 2012
David Riverside, CA
How Sweet It Is
My electrician did the complete installation for me and had it all done in one day. Everything worked well. We ran it for 2hours under normal load, I think the noise factor is above 68 db. But other than that all is good. Thank You Good Service
January 15, 2012
Mike West Salem, OH
Generac Guardian
I bought this unit online for less than all local sellers. Purchase was easy, delivery was exceptionally quick. I am very pleased with all aspects of this transaction !!
December 29, 2011
Robert Madison, CT
17Kw Generator
Works great! I had it installed 1 month ago and have already had 2 power failures. It came on and performed as planned.
November 24, 2011
Rich Trumbull, CT
Easy, Easy!
Easy directions for set up. Most likely all people should refer wiring of these units to an electrician. Start-up and programing a snap. I hope this product is reliable down the road. The cost hopefully out weighed by the need.
November 11, 2011
Chris Brookline, NH
October Northeast Power Outage
I purchased and moved into a house 1 day before the October snow storm that took out power in the northeast. I had already planned on buying a Generac whole house generator, but I wanted a 14kw to save on gas. However after losing power for 3 days I decided I didn't want to wait until it was back in stock (late november) I ordered the 17kw with priority shipping and a battery before it was sold out. It was delivered within 3 days in excellent condition. The price I paid was cheaper than anywhere else. I am finishing the install now and it looks great. Generators Direct has come through with flying colors and the people are pleasant to talk too. If the generator starts up and works it will be a five star experience.
I purchased and moved into a house 1 day before the October snow storm that took out power in the northeast. I had already planned on buying a Generac whole house generator, but I wanted a 14kw to save on gas. However after losing power for 3 days I decided I didn't want to wait until it was back in stock (late november) I ordered the 17kw with priority shipping and a battery before it was sold out. It was delivered within 3 days in excellent condition. The price I paid was cheaper than anywhere else. I am finishing the install now and it looks great. Generators Direct has come through with fl... more
October 12, 2011
Joe Brielle, NJ
My Story
All I can say right now is that the people that I talked to were very nice and helpful when they said it would be sent it was and it was to be delivered it was. I still am hooking it up but I know it's a good gen. Because the fire house I belong to has two of the same one I ordered and a good friend also installed one also. I hope to get mine running in a couple of weeks.
September 24, 2011
Roger Sedley, VA
My Generac
We were tired of loosing power, and sitting in the dark. We loose power hear a lot and usually we have a house full of family when there is a storm coming.
Thank you Electric Generators for your whole house generator. This thing is great. We love it. Thanks for the best price, fast shipping,and free shipping at that. I rate you #1.
September 14, 2011
Paul Lubbock, TX
Easy transaction
I bought this generator after much self debate. I decided the cost I pay would be easily forgotten once I need it. The transaction to buy the generator from EGD was a breeze. I have called the CS department and visited with the sales rep, he was knowledgeable about the product and did point me in the right direction. I placed my order online, and generator was delivered to my house in 5 days.
The price was the best online, I looked at hd site and other sites and reviewed the company reputation, it checked out well.
I hired a local contractor that I knew personally and they had the generator set up for me for an extra thousand. Itwas real easy and well executed.
I would recommend buying from this company, they are honest and have great online reputation.
as for the generator itself, it looks well built. I will update my review in the future, hope it all stays well
I bought this generator after much self debate. I decided the cost I pay would be easily forgotten once I need it. The transaction to buy the generator from EGD was a breeze. I have called the CS department and visited with the sales rep, he was knowledgeable about the product and did point me in the right direction. I placed my order online, and generator was delivered to my house in 5 days.
The price was the best online, I looked at hd site and other sites and reviewed the company reputation, it checked out well.
I hired a local contractor that I knew personally and th... more
July 16, 2011
Charles Piney Point, MD
Superior Product & Outstanding Shopping Experience
We've been saving for some time to put in a high quality stand alone generator. Electric Generators Direct was right on target as all the reviews I read have said. We received within 3 days of ordering and my contractor was on scene as they delivered. Perfect transaction. The generator is all we hoped for. We hope we don't have to use it, but in these uncertain times and living on the water, we have added insurance that we will have power when needed.
July 13, 2011
Ron Webster, NY
Awesome!
First of all, Electric Generators Direct is a top-notch business! The prices were fantastic and I ordered and received my generator in 4 days! Unbelievable!
The shipping company called to confirm the date and time and the driver put it in my garage for me. The Generac generator is beautiful and fired right up when installed. I have tremendous peace of mind right now and will be throwing a "power party" with all my lights on the next time we lose our electricity from the power company.
Thanks so much for the great service!
June 11, 2011
Billy Damascus, VA
My Generac
Through tornadoes of this spring and now a unstable power supply, our Generac 17K performed without missing a beat. Fuel consumption ran 10% on LP for 12 to 14 hours. Best investment we've made in our new home.
